STRAIGHT PIPE WITH ONE SOCKET - (811.075.160)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.075.160
EAN no.: 5705499400502
VVS no.: 160132075
RSK no.: 1550161
NRF no.: 2172278
LVI no.: 0240234

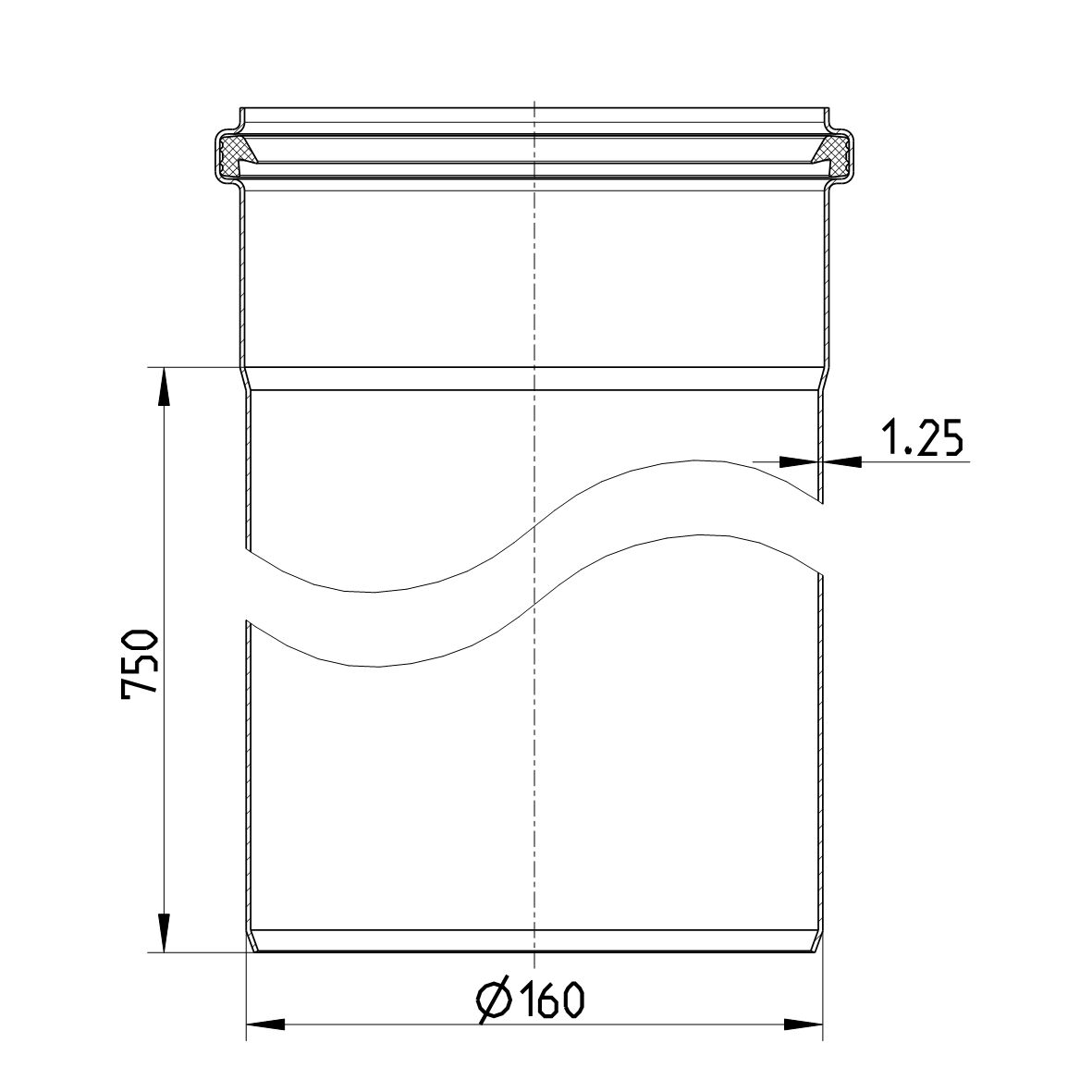

STRAIGHT PIPE WITH ONE SOCKET
-Length: 750mm
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 2' 6" |
| Length of straight pipe (mm) | 750 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 4,22 |
| Weight (lbs) | 9,3 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22
