STRAIGHT PIPE WITH ONE SOCKET - (811.050.125 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.050.125 S
EAN no.: 5705499408249
VVS no.: 160130350
RSK no.: 1551162
NRF no.: 2170712
LVI no.: 0256002

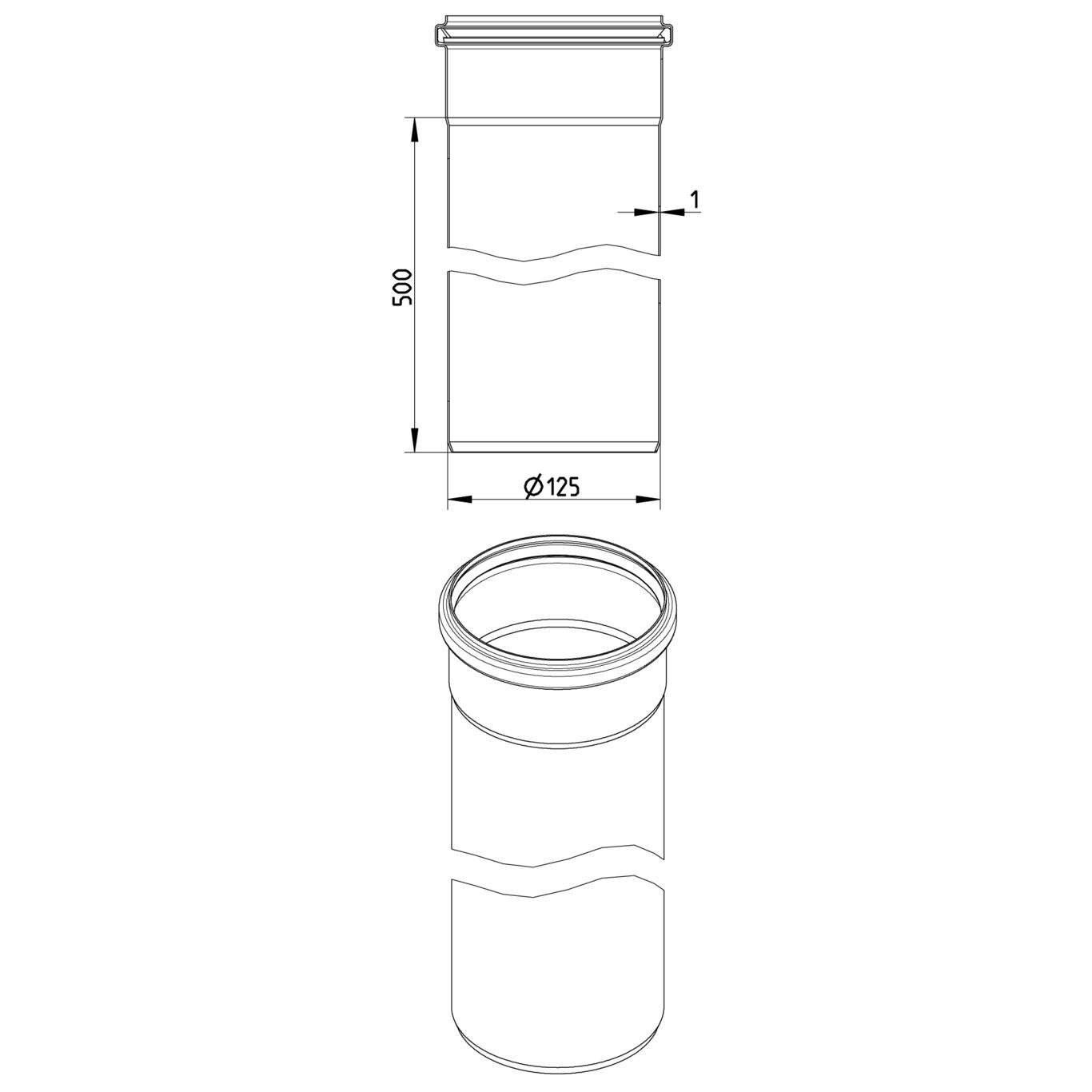

STRAIGHT PIPE WITH ONE SOCKET
-Length: 500mm
-Diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 1' 8" |
| Length of straight pipe (mm) | 500 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,78 |
| Weight (lbs) | 3,92 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19350
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22
