STRAIGHT PIPE WITH ONE SOCKET - (811.050.075 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.050.075 S
EAN no.: 5705499400397
VVS no.: 160124350
RSK no.: 1550240
NRF no.: 2170685
LVI no.: 0250133

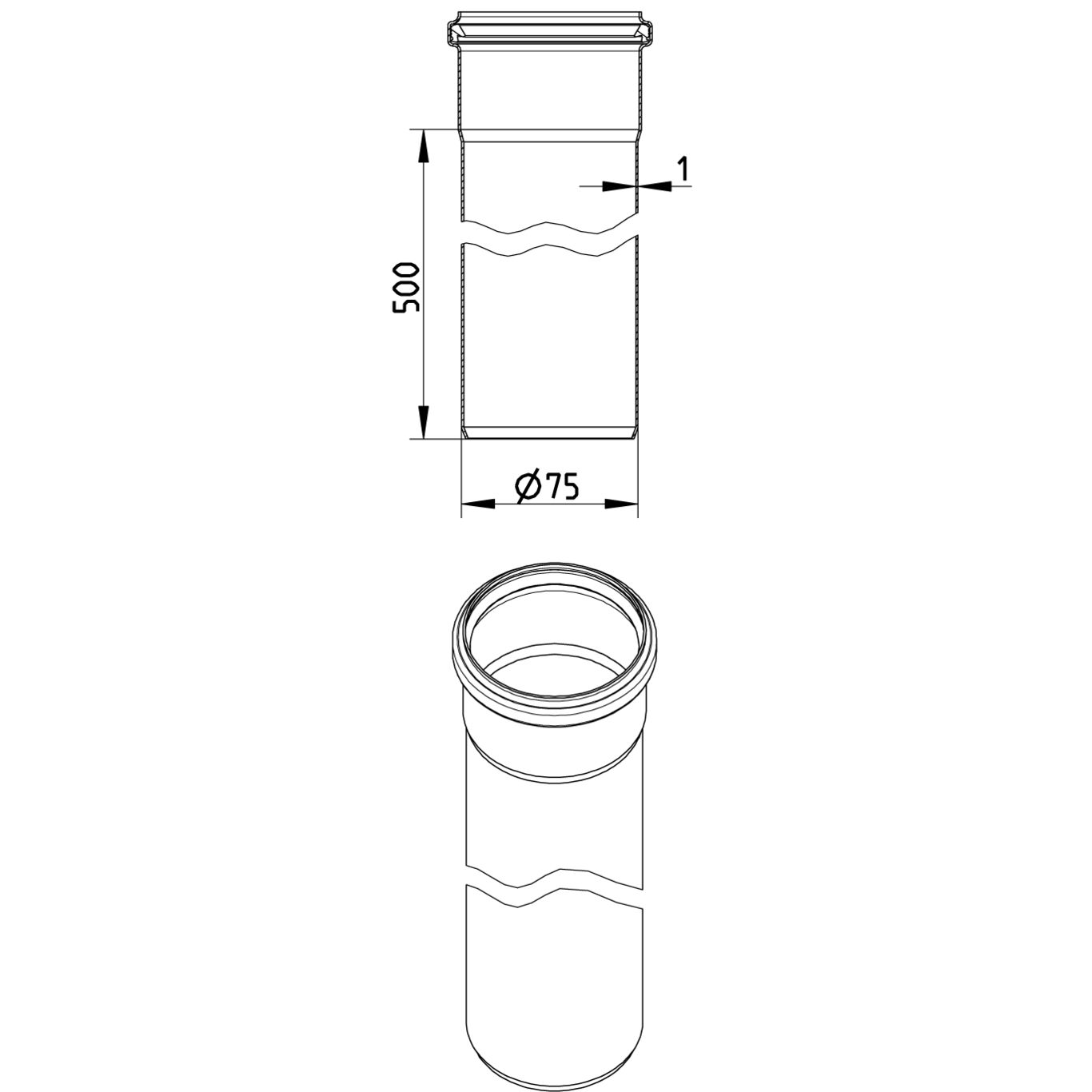

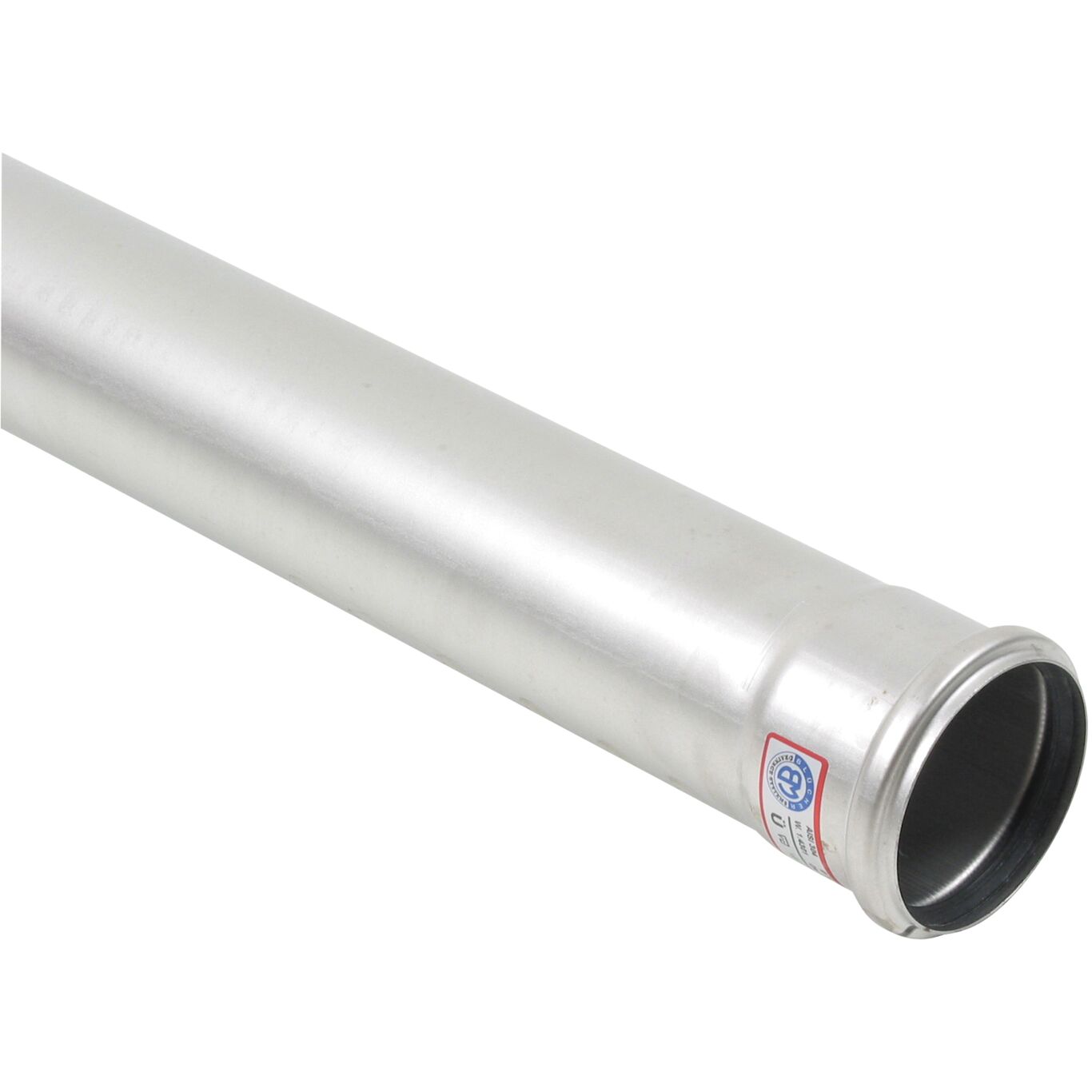

STRAIGHT PIPE WITH ONE SOCKET
-Length: 500mm
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 1' 8" |
| Length of straight pipe (mm) | 500 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 1,00 |
| Weight (lbs) | 2,2 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes
