STRAIGHT PIPE WITH ONE SOCKET - (811.050.040)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.050.040
EAN no.: 5705499412673
VVS no.: 160120050
RSK no.: 1552777
NRF no.: 2171195
LVI no.: 0240033

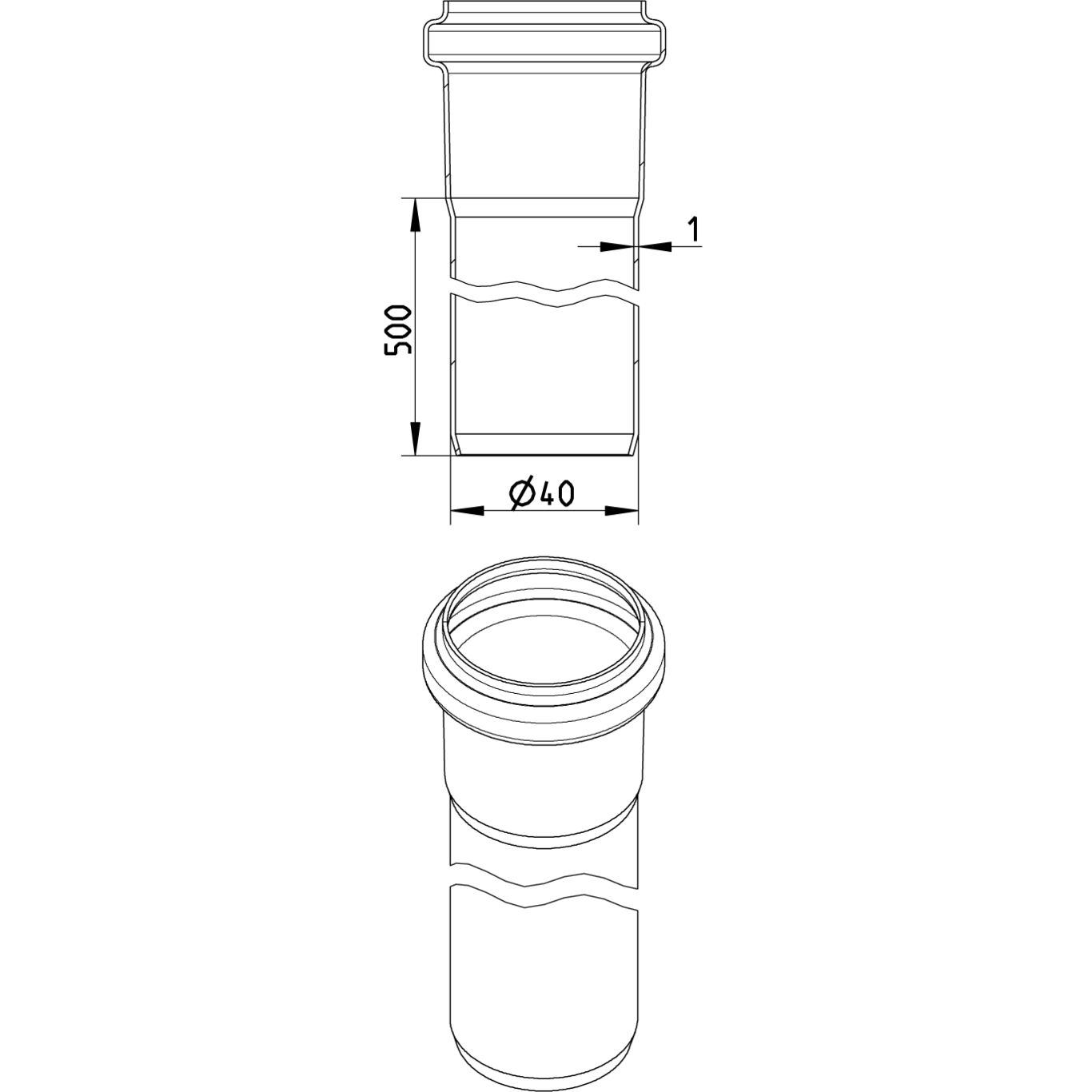

STRAIGHT PIPE WITH ONE SOCKET
-Length: 500mm
-Diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 1' 8" |
| Length of straight pipe (mm) | 500 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,60 |
| Weight (lbs) | 1,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02
