STRAIGHT PIPE WITH ONE SOCKET - (811.025.125)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.025.125
EAN no.: 5705499408218
VVS no.: 160130025
RSK no.: 1551517
NRF no.: 2168923
LVI no.: 0246001

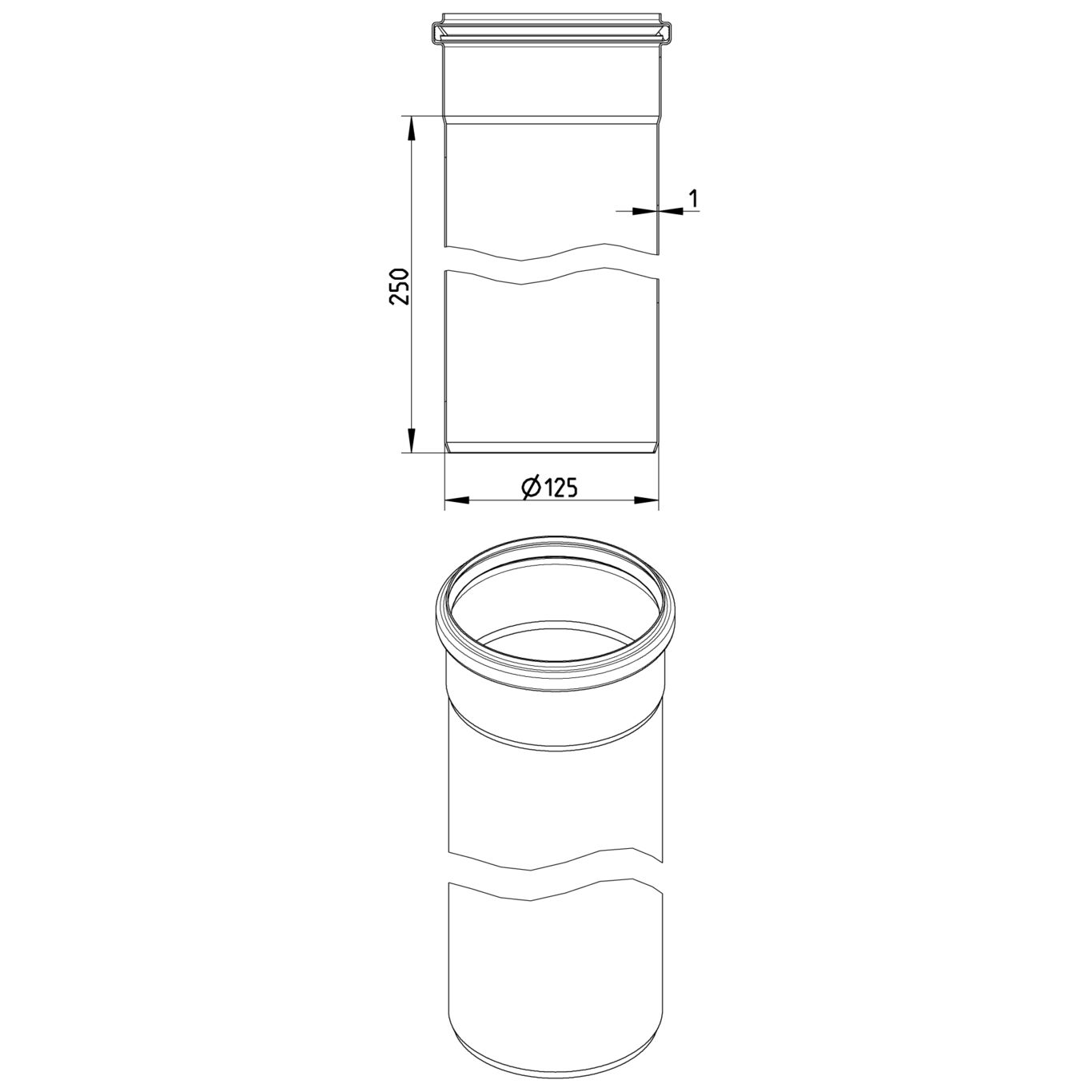

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø125mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 0' 10" |
| Length of straight pipe (mm) | 250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,01 |
| Weight (lbs) | 2,23 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes
