STRAIGHT PIPE WITH ONE SOCKET - (811.025.110)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.025.110
EAN no.: 5705499400328
VVS no.: 160128025
RSK no.: 1550046
NRF no.: 2170019
LVI no.: 0240182

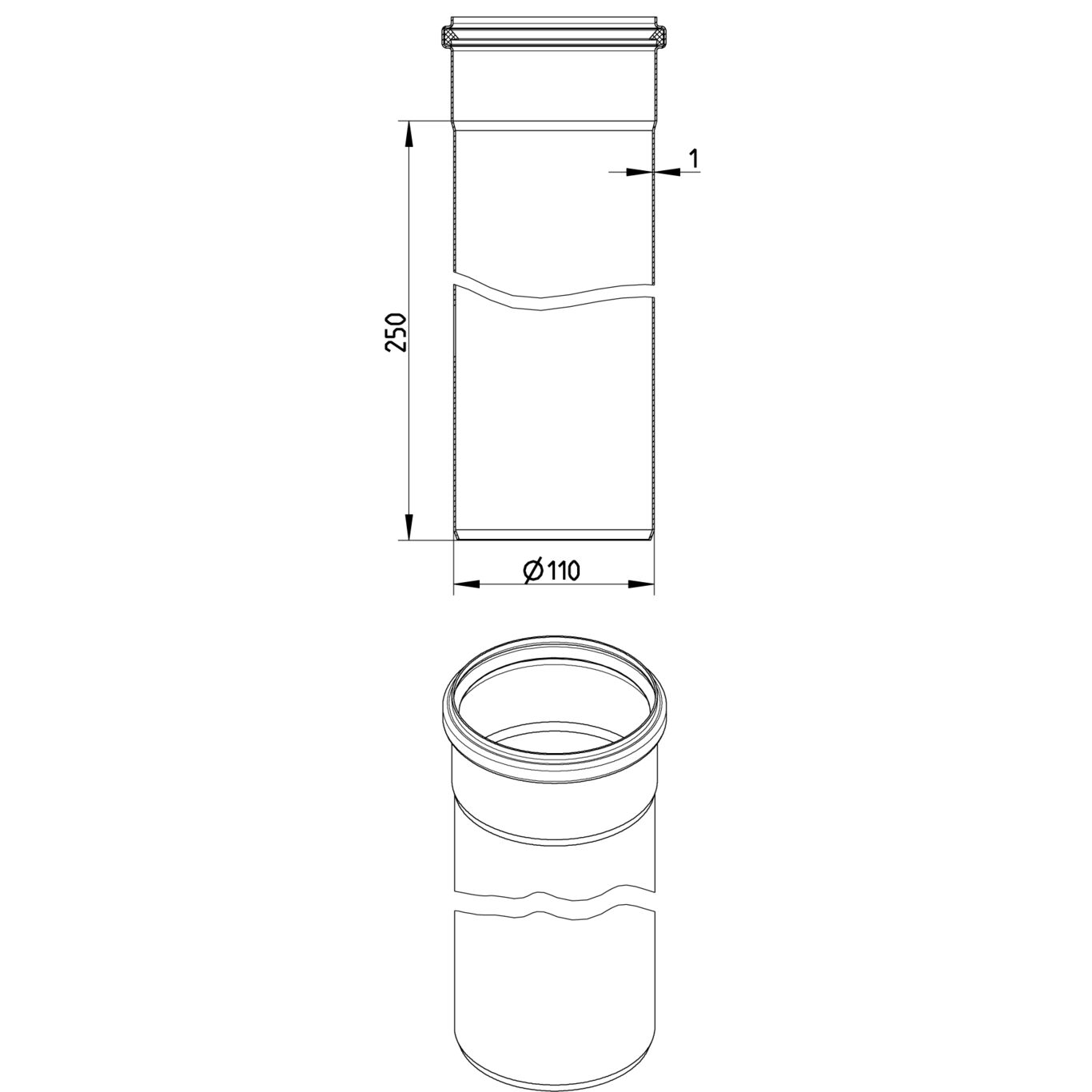

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 0' 10" |
| Length of straight pipe (mm) | 250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,87 |
| Weight (lbs) | 1,92 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24 MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe Lloyds Register LR22419510TA_02 UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001
