STRAIGHT PIPE WITH ONE SOCKET - (811.025.040 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.025.040 S
EAN no.: 5705499412666
VVS no.: 160120325
RSK no.: 1552751
NRF no.: 2172456
LVI no.: 0250032

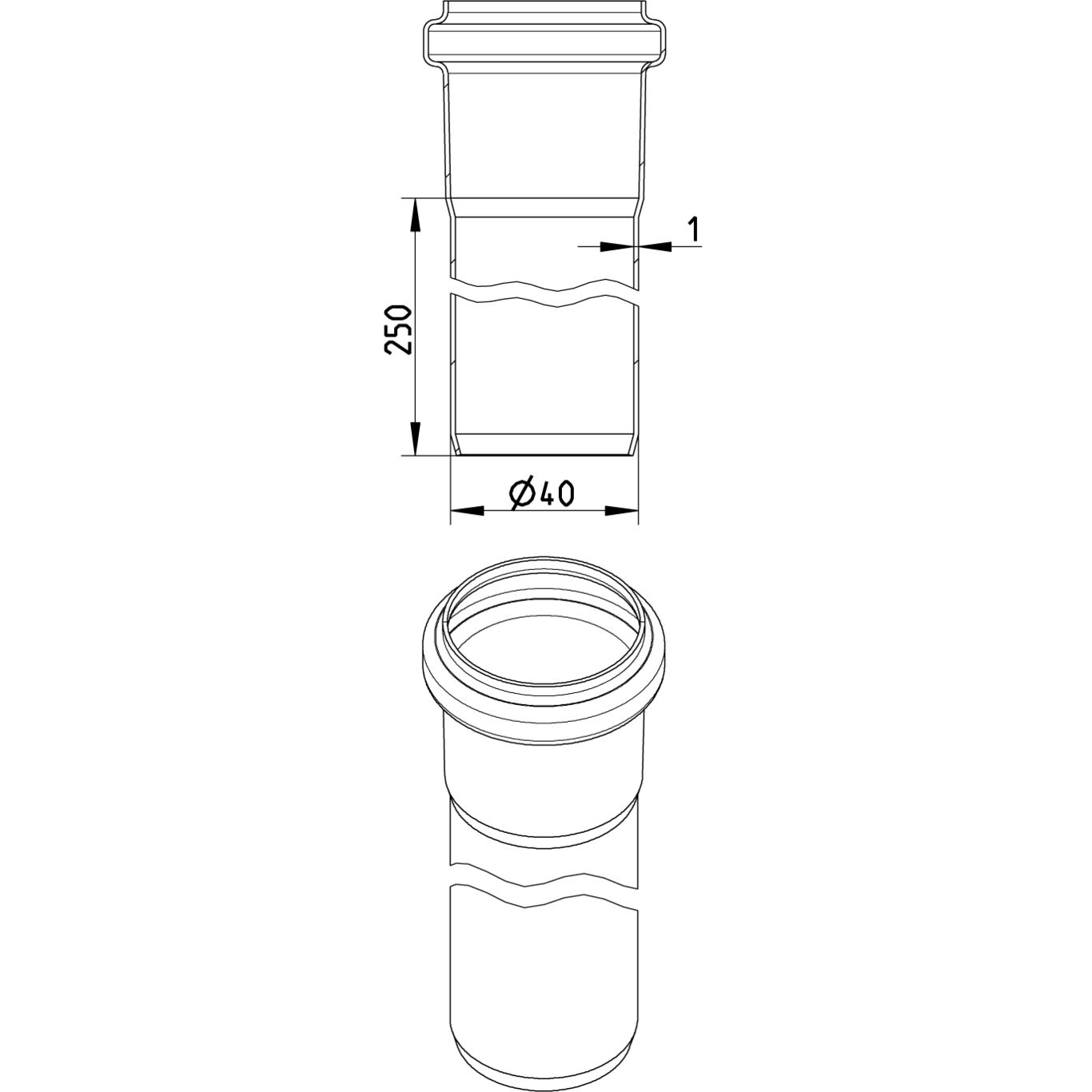

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 0' 10" |
| Length of straight pipe (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,29 |
| Weight (lbs) | 0,64 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes
