STRAIGHT PIPE WITH ONE SOCKET - (811.015.040 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.015.040 S
EAN no.: 5705499412642
VVS no.: 160120315
RSK no.: 1552750
NRF no.: 2172453
LVI no.: 0250031

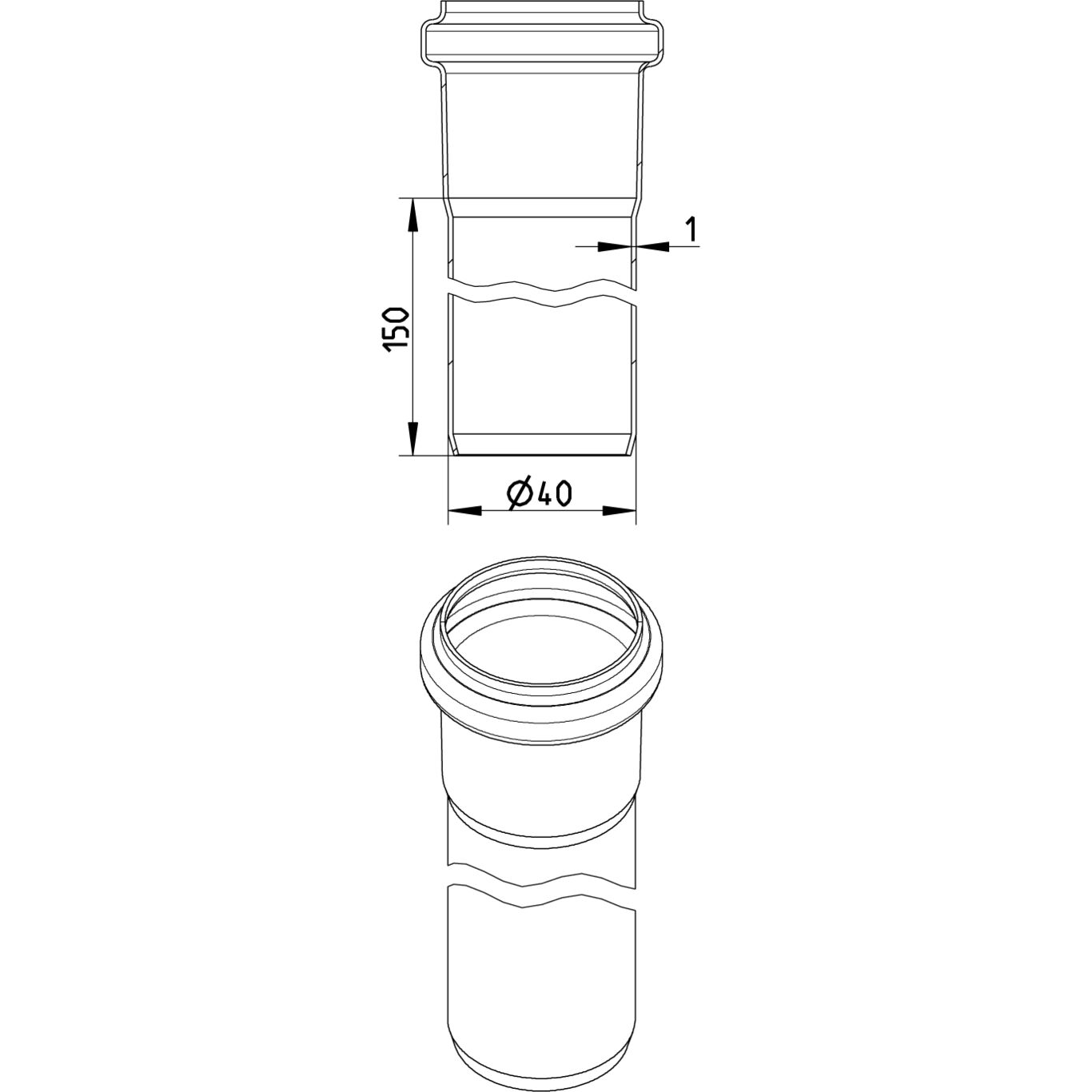

STRAIGHT PIPE WITH ONE SOCKET
-Length: 150mm
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 0' 6" |
| Length of straight pipe (mm) | 150 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,20 |
| Weight (lbs) | 0,44 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe Lloyds Register LR22419510TA Achilles Certificate - 46702-22 RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval RINA -MAC285119XG EuroPipe RU - 0212322 Pipes-21 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev3, Sanitary discharge pipes ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001
