DOUBLE COUPLING - (841.040.040 S)
×
![]()
Part Of the Series: Double coupling
Type no.: 841.040.040 S
EAN no.: 5705499413045
VVS no.: 160275340
RSK no.: 1552764
NRF no.: 2172652
LVI no.: 0252731

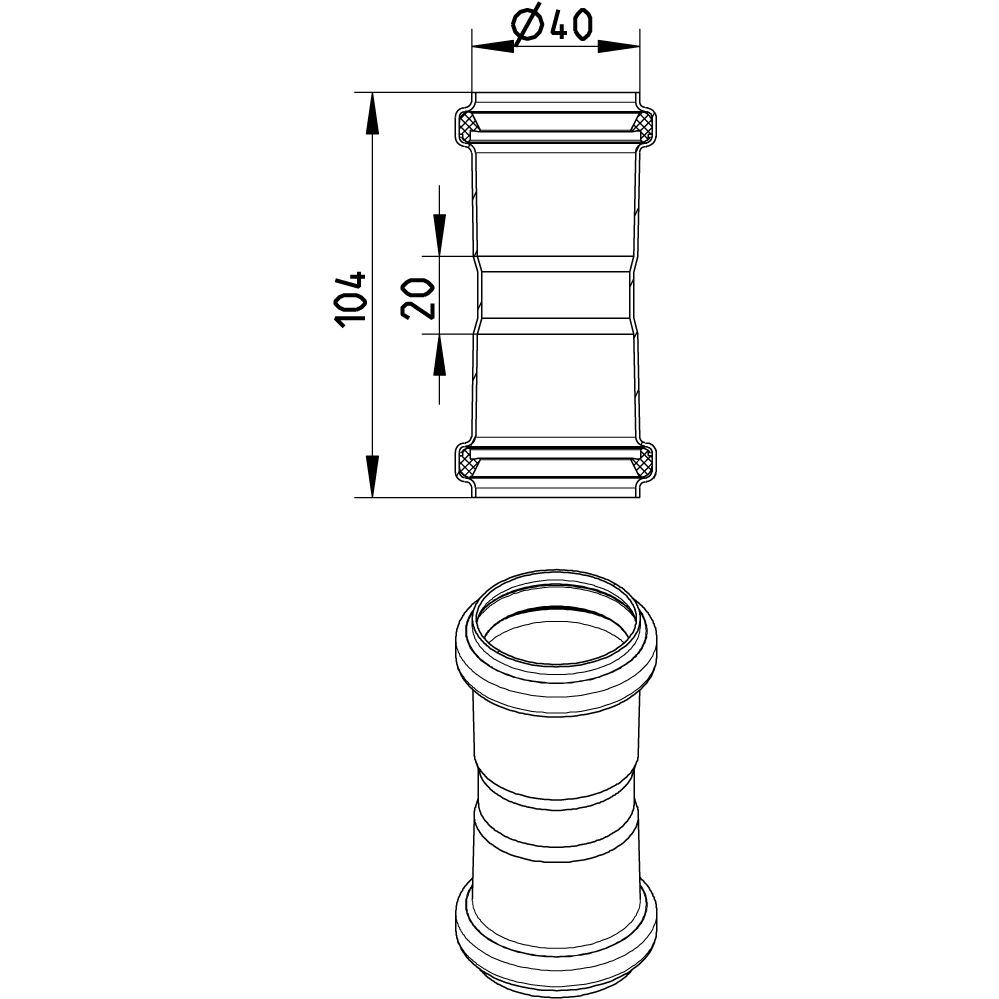

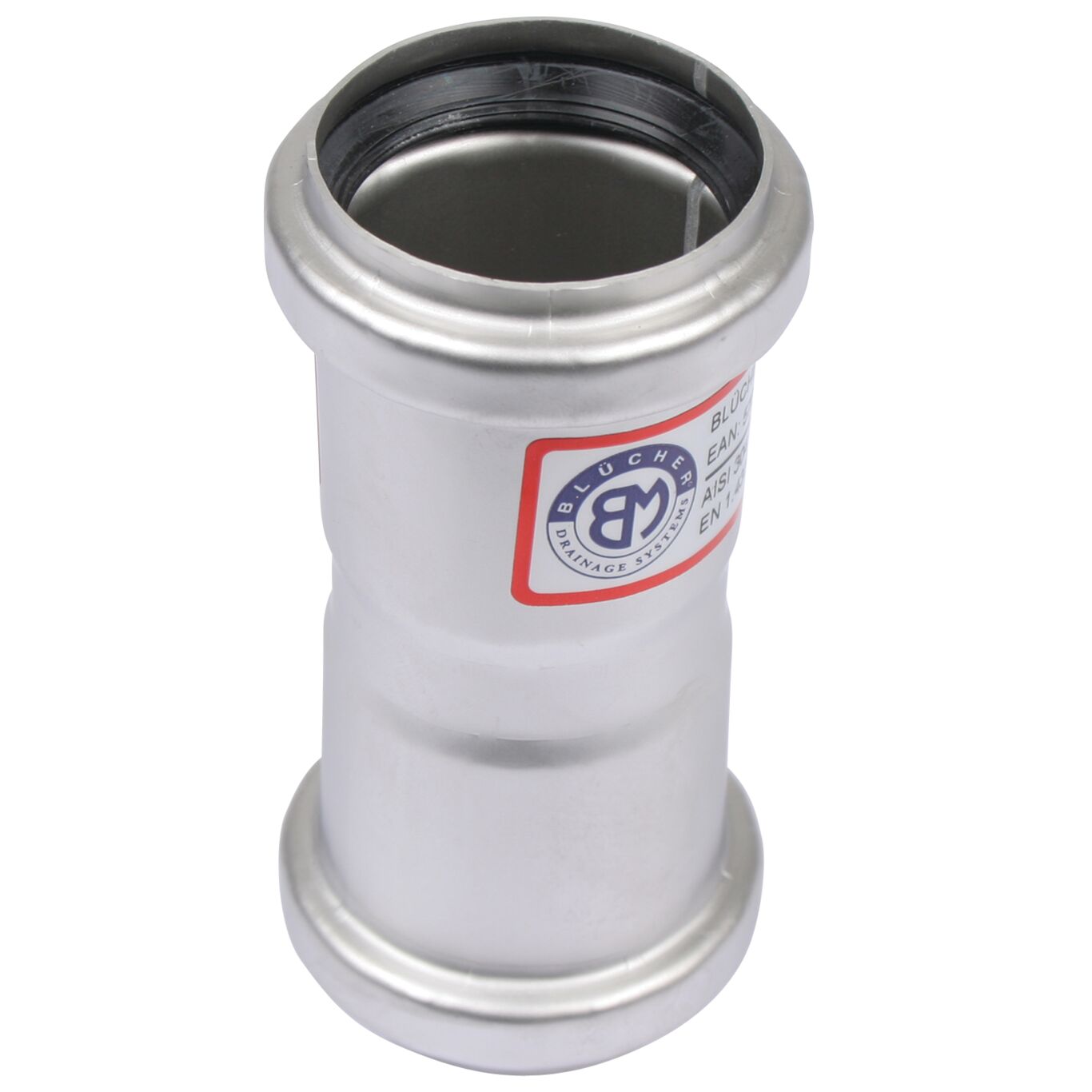

DOUBLE COUPLING
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 20 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,13 |
| Weight (lbs) | 0,29 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22
