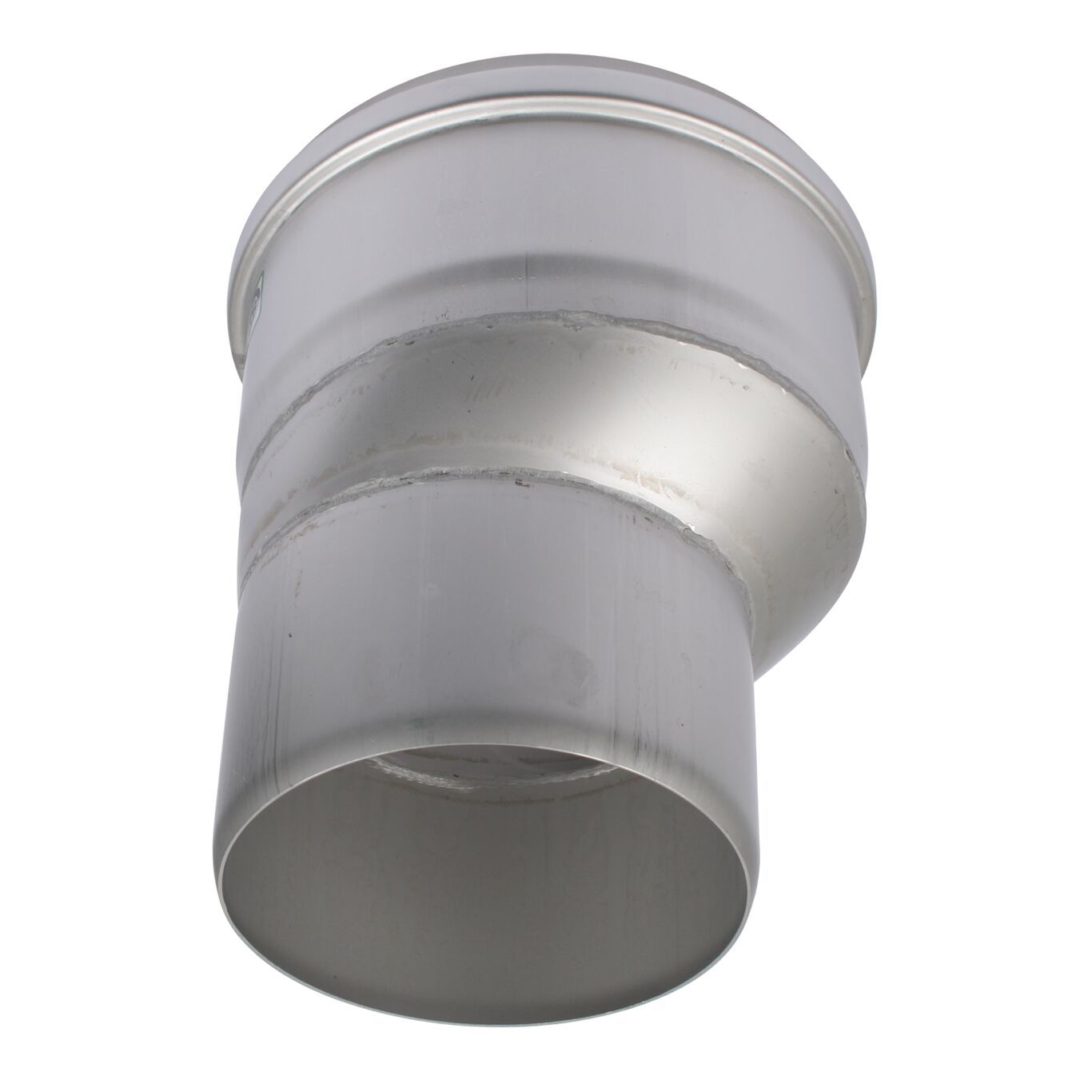

REDUCER ECCENTRIC - (850.200.160 S)
×
![]()
Part Of the Series: Reducer-eccentric
Type no.: 850.200.160 S
EAN no.: 5705499413373
VVS no.: 160261498
NRF no.: 2172705
LVI no.: 0252174

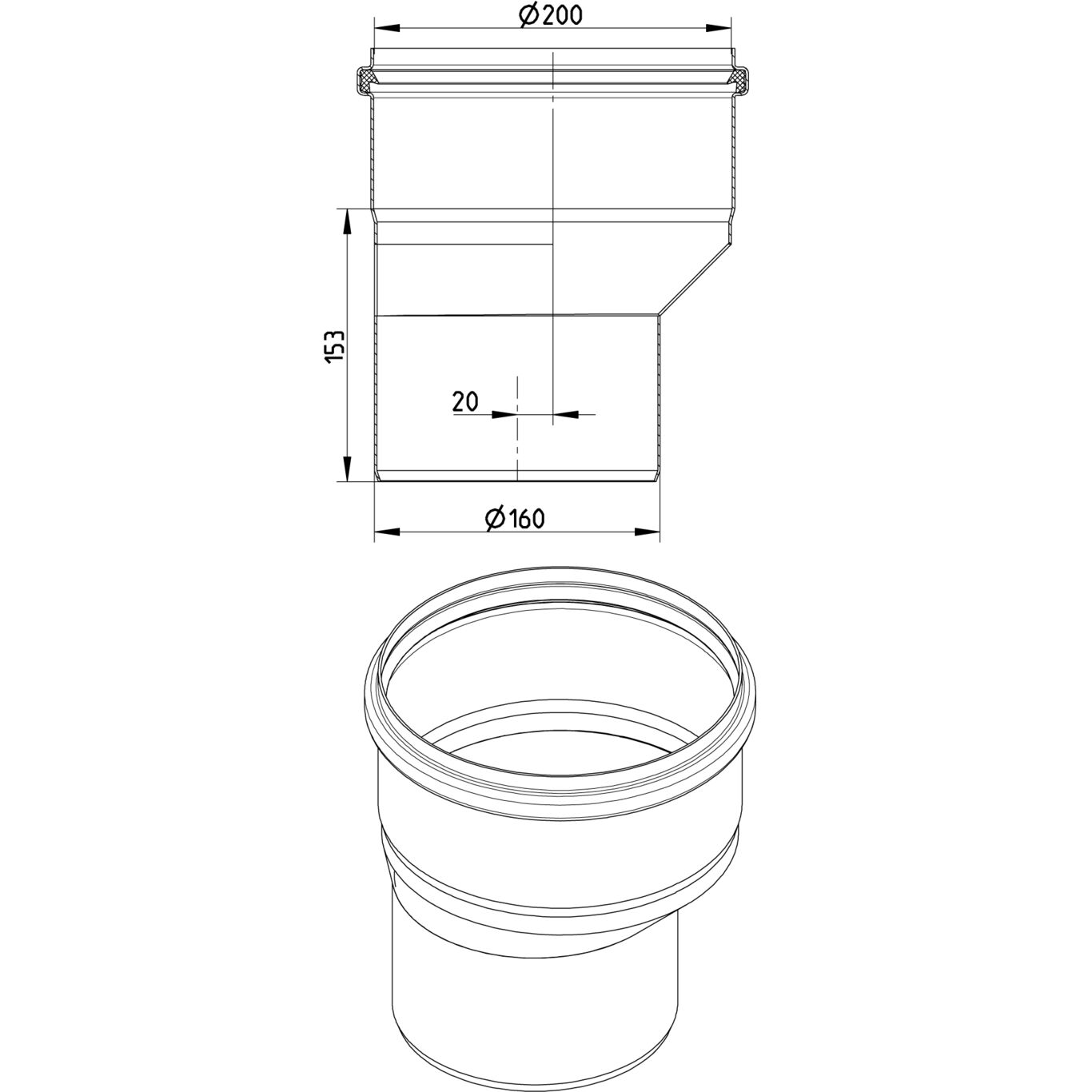

REDUCER ECCENTRIC
-Diameter: Ø200mm to Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 153 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,77 |
| Weight (lbs) | 3,9 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19350
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes
