REDUCER ECCENTRIC - (850.110.050 S)
×
![]()
Part Of the Series: Reducer-eccentric
Type no.: 850.110.050 S
EAN no.: 5705499403183
VVS no.: 160261506
RSK no.: 1550391
NRF no.: 2172695
LVI no.: 0252358

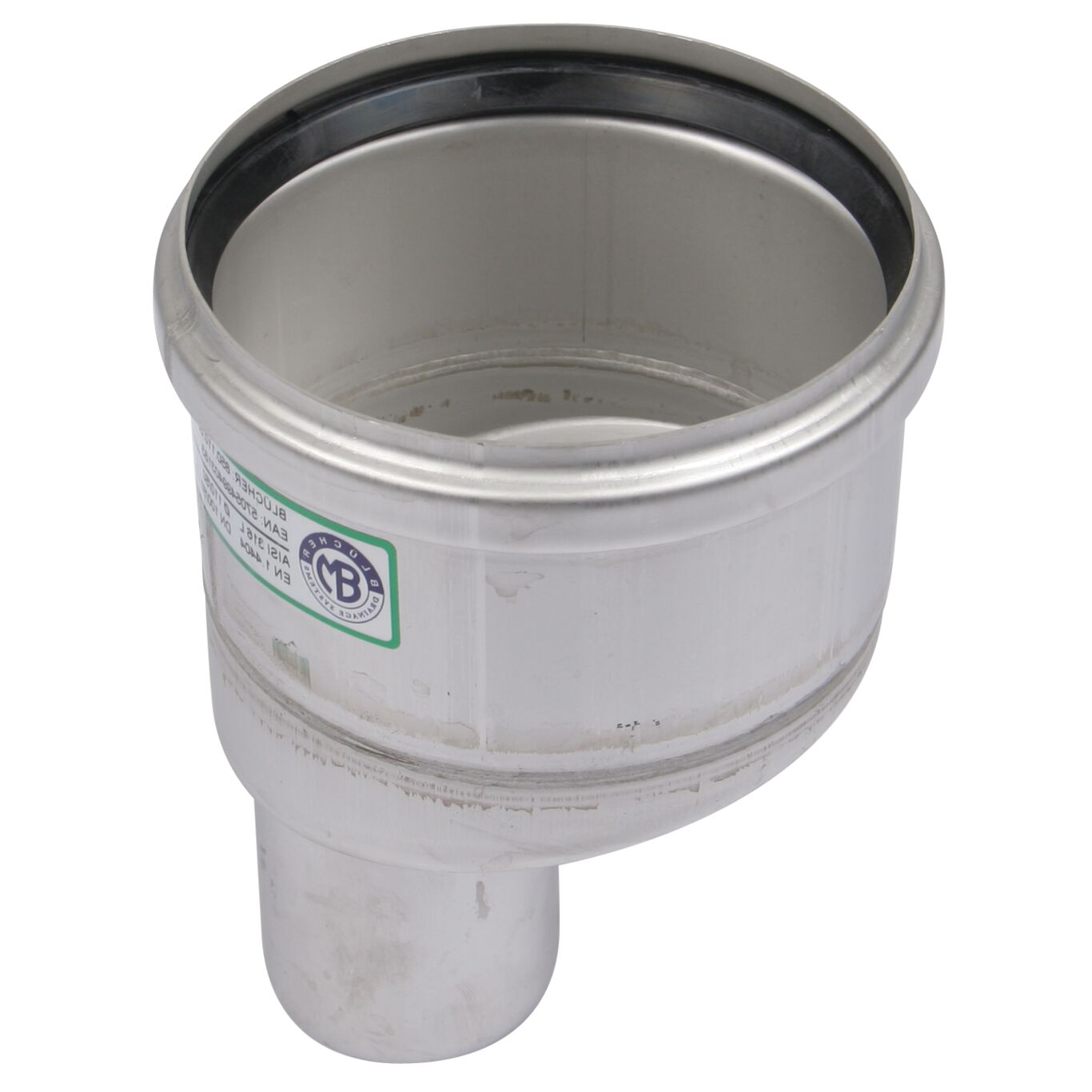

REDUCER ECCENTRIC

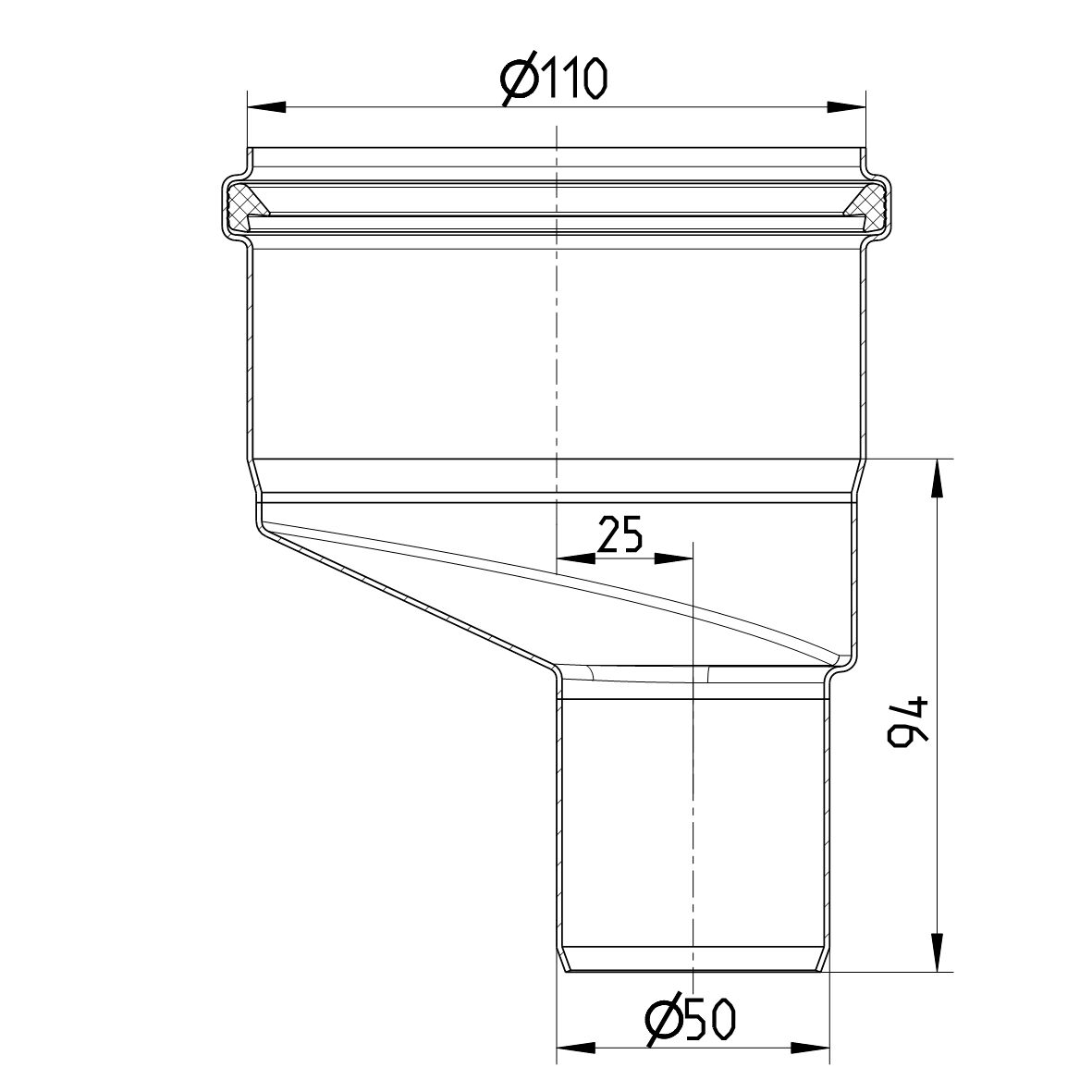

-Diameter: Ø110mm to Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 99 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,50 |
| Weight (lbs) | 1,1 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24 Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA_02 MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains
