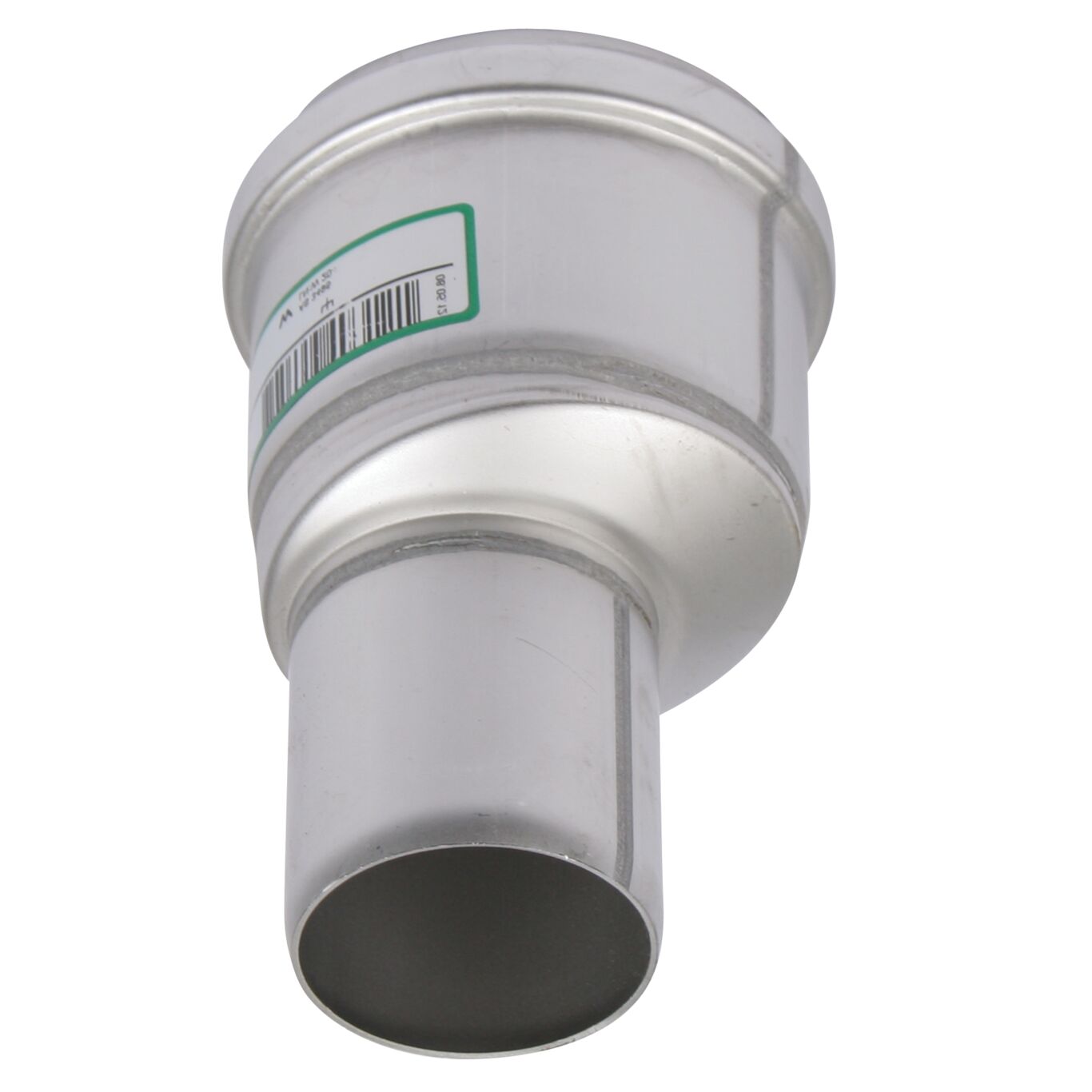

REDUCER ECCENTRIC - (850.075.050 S)
×
![]()
Part Of the Series: Reducer-eccentric
Type no.: 850.075.050 S
EAN no.: 5705499403121
VVS no.: 160261473
RSK no.: 1550390
NRF no.: 2172687
LVI no.: 0252356
REDUCER ECCENTRIC

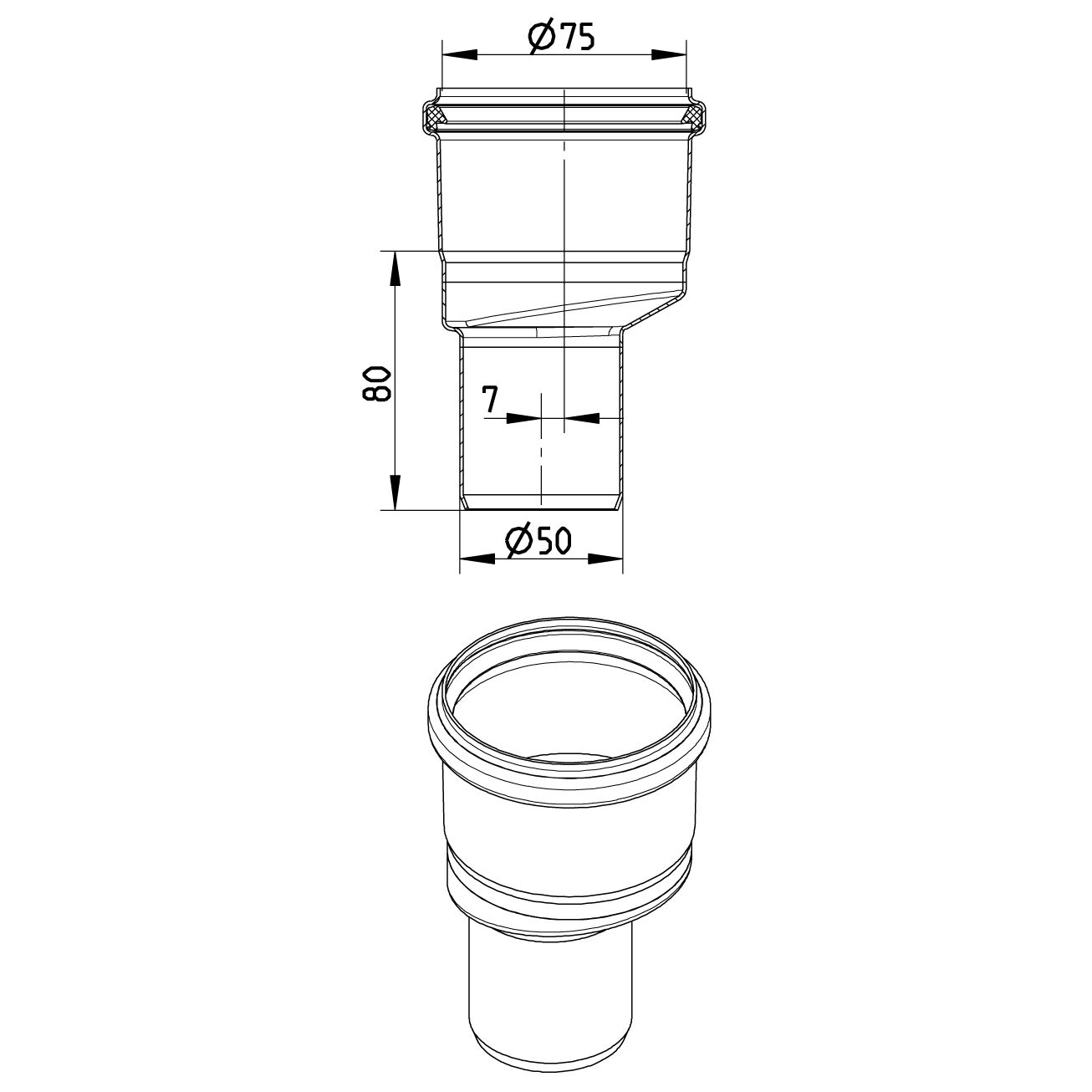

-Diameter: Ø75mm to Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 80 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,28 |
| Weight (lbs) | 0,62 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 ABS - 23-2329630-PDA
