INCREASER ECCENTRIC - (850.075.160)
×
![]()
Part Of the Series: Increaser-eccentric
Type no.: 850.075.160
EAN no.: 5705499403169
VVS no.: 160261155
NRF no.: 2172384
LVI no.: 0242163

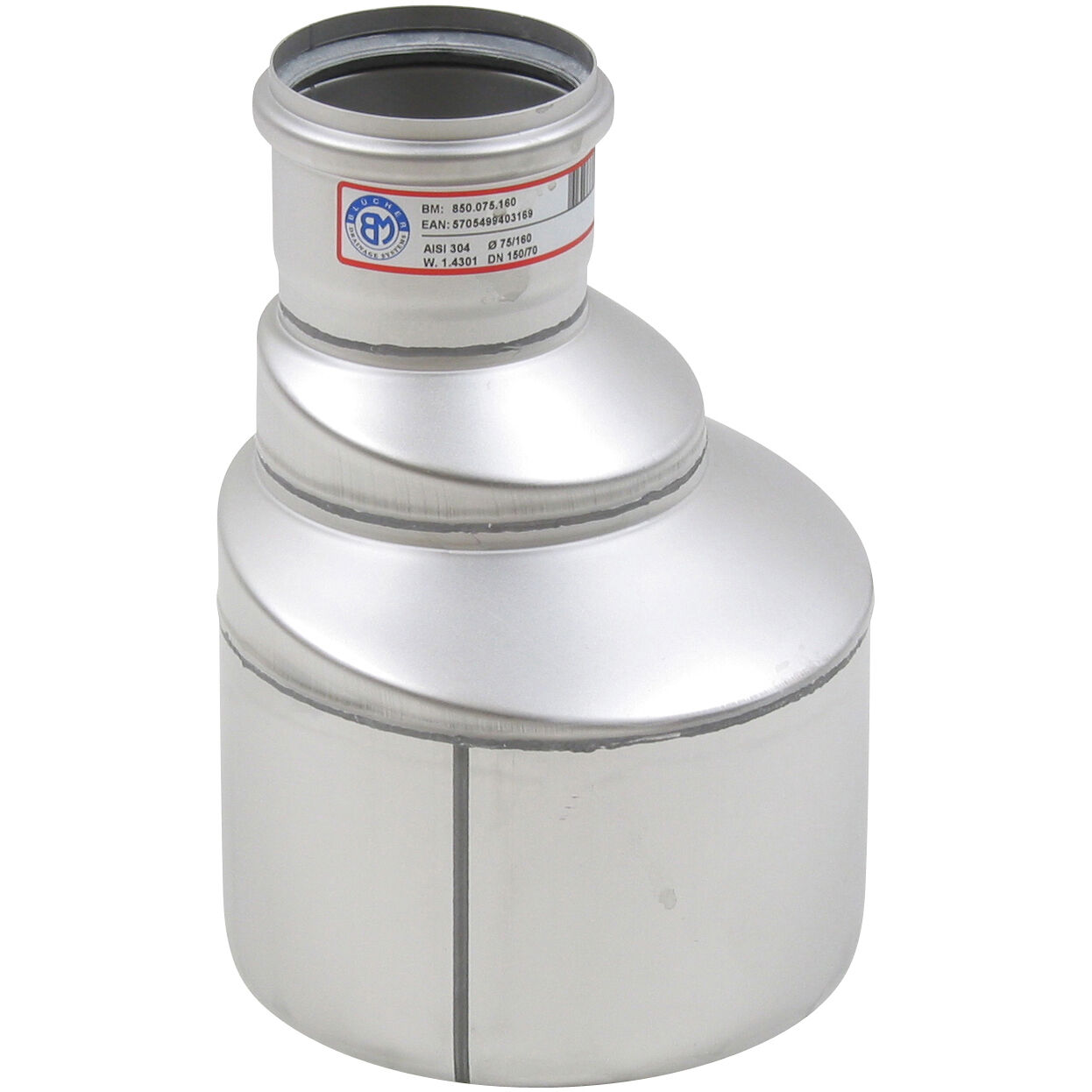

INCREASER ECCENTRIC

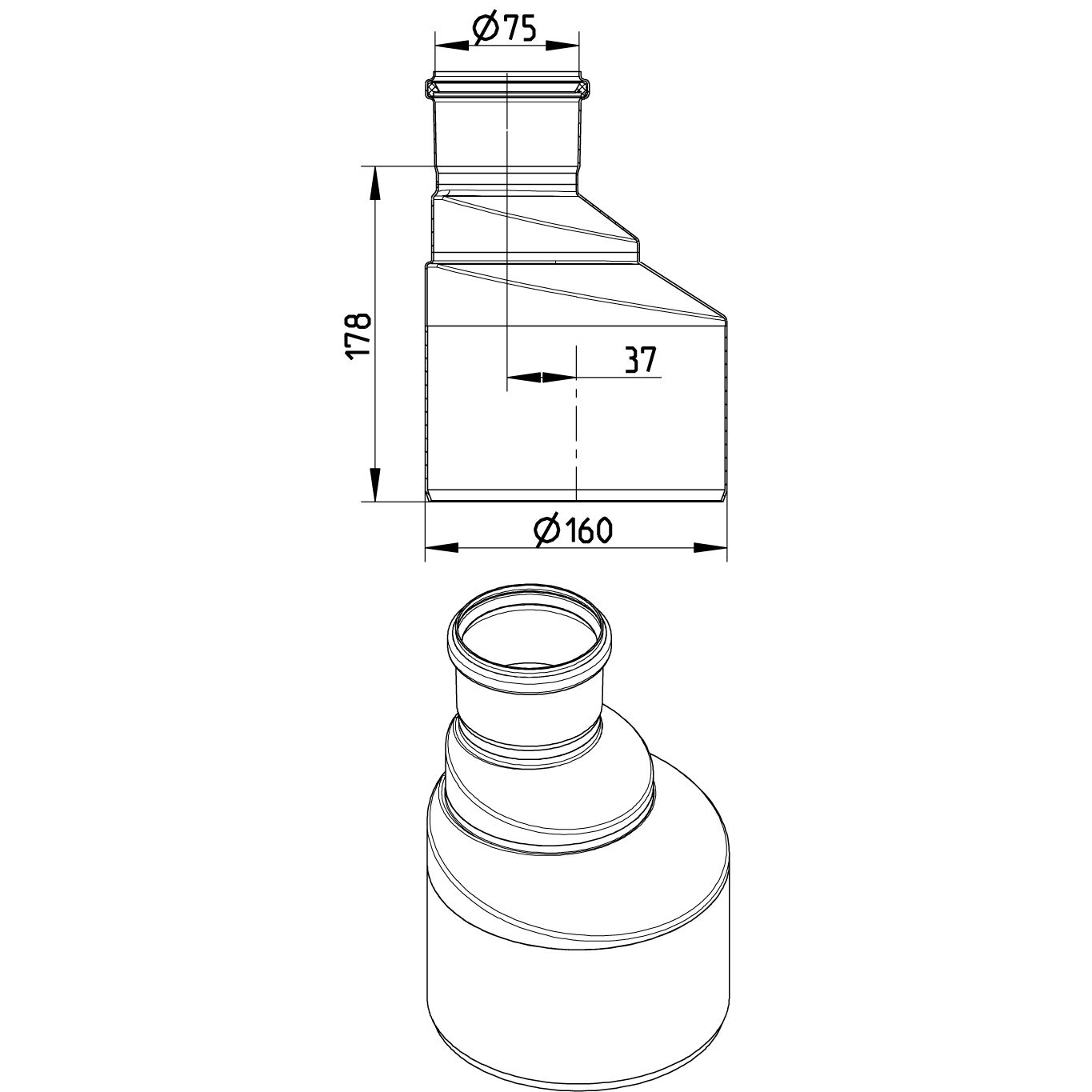

-Diameter: Ø75mm to Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length (mm) | 178 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,20 |
| Weight (lbs) | 2,65 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432 Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains
