INCREASER CONCENTRIC - (850.125.160 CS)
×
![]()
Part Of the Series: Increaser-concentric
Type no.: 850.125.160 CS
EAN no.: 5705499408478
VVS no.: 160261458
RSK no.: 1551185
NRF no.: 2172701
LVI no.: 0256056

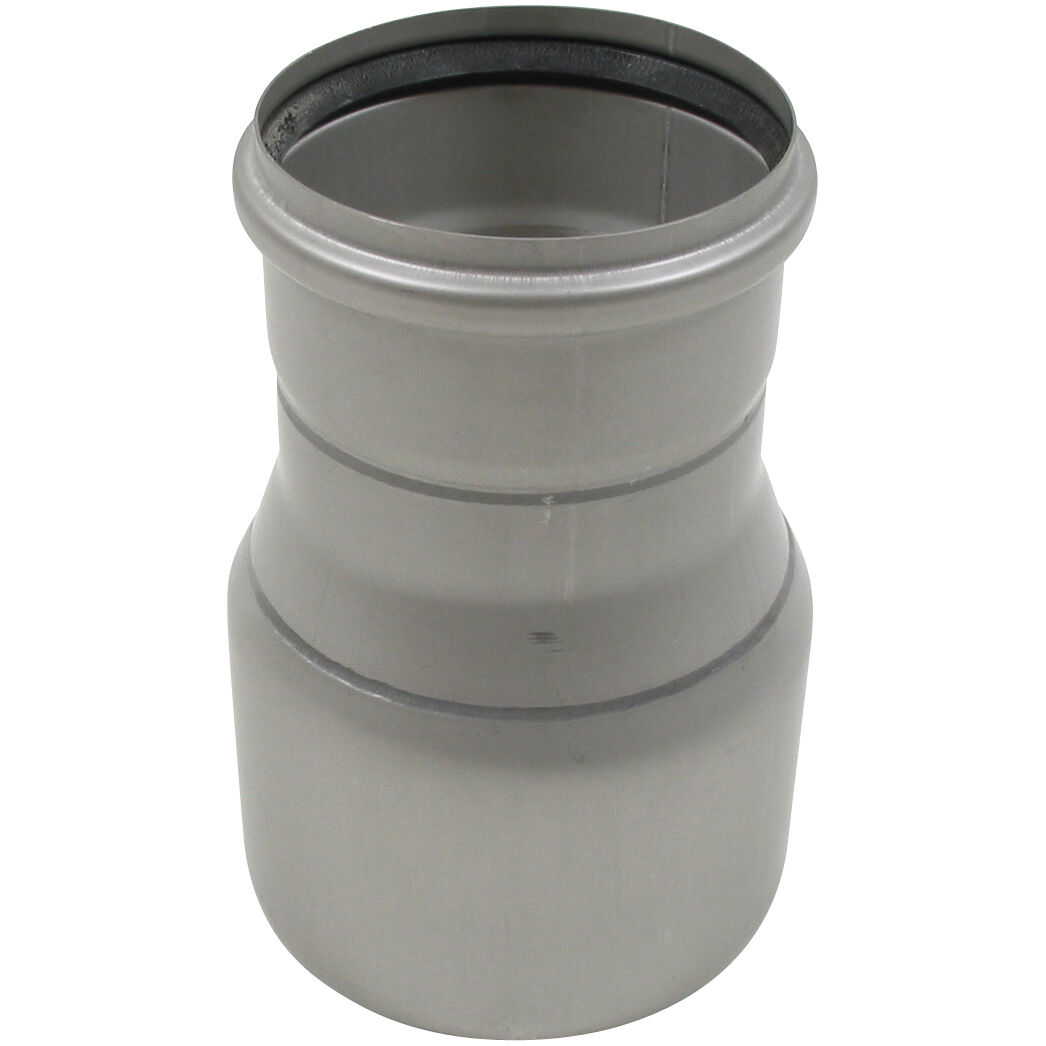

INCREASER CONCENTRIC

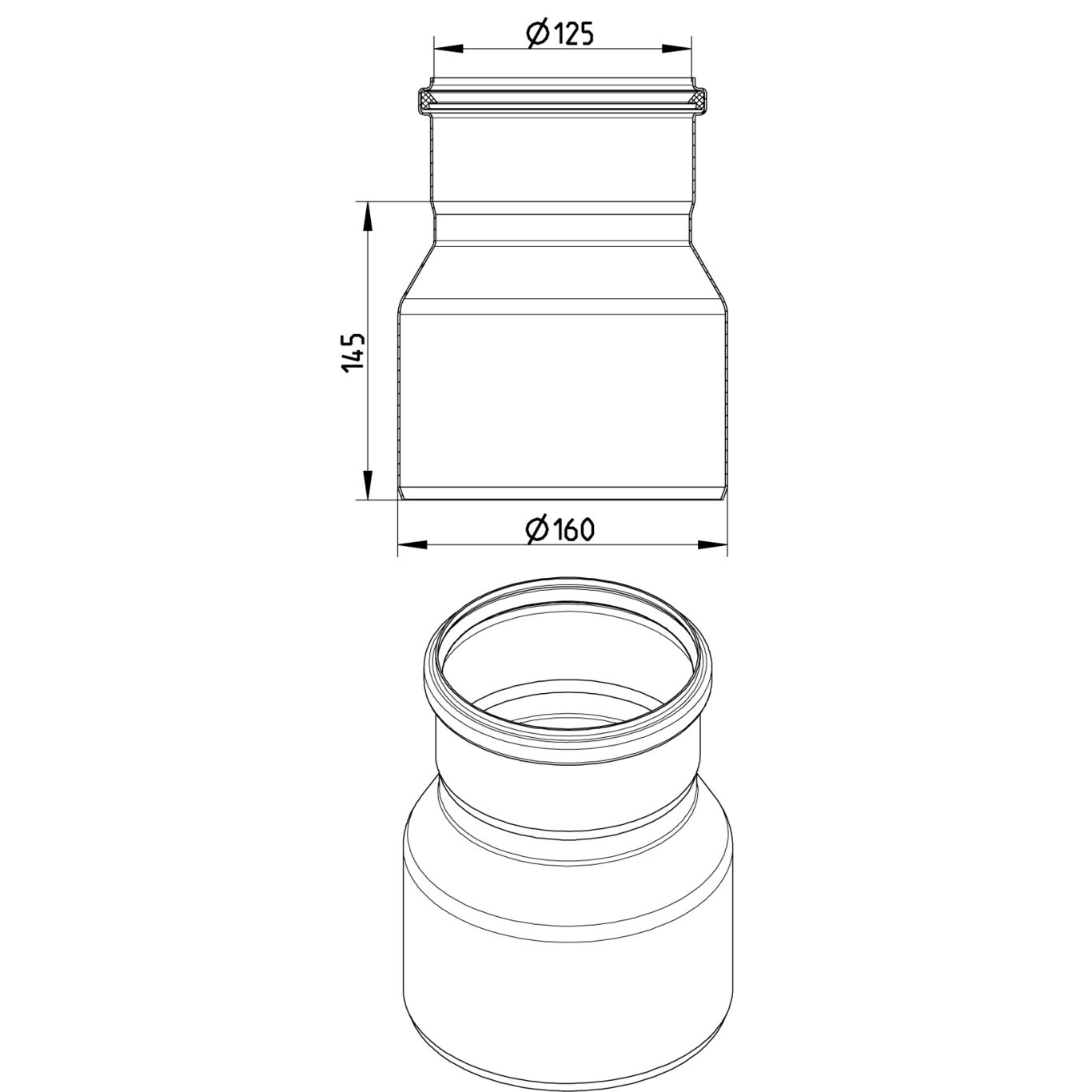

-Diameter: Ø125mm to Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 145 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,00 |
| Weight (lbs) | 2,2 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains
