SWEPT BRANCH 87.5° - (839.160.160)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.160.160
EAN no.: 5705499402650
VVS no.: 160222160
RSK no.: 1550188
NRF no.: 2170137
LVI no.: 0245245

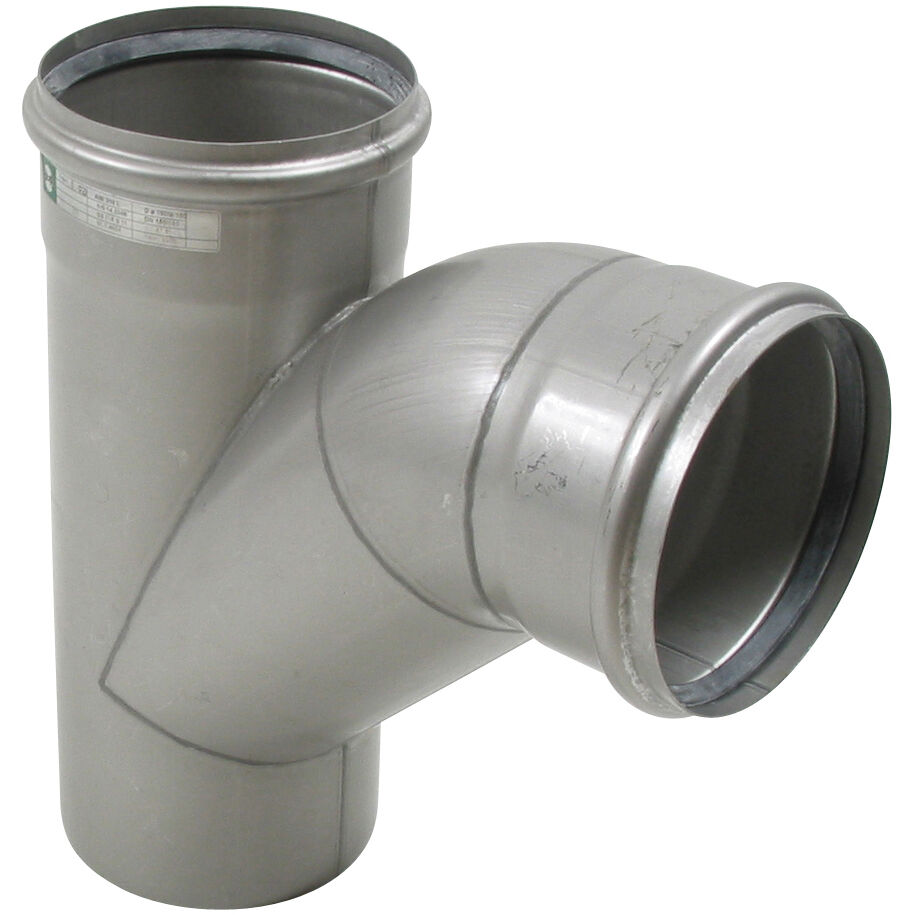

SWEPT BRANCH 87.5°

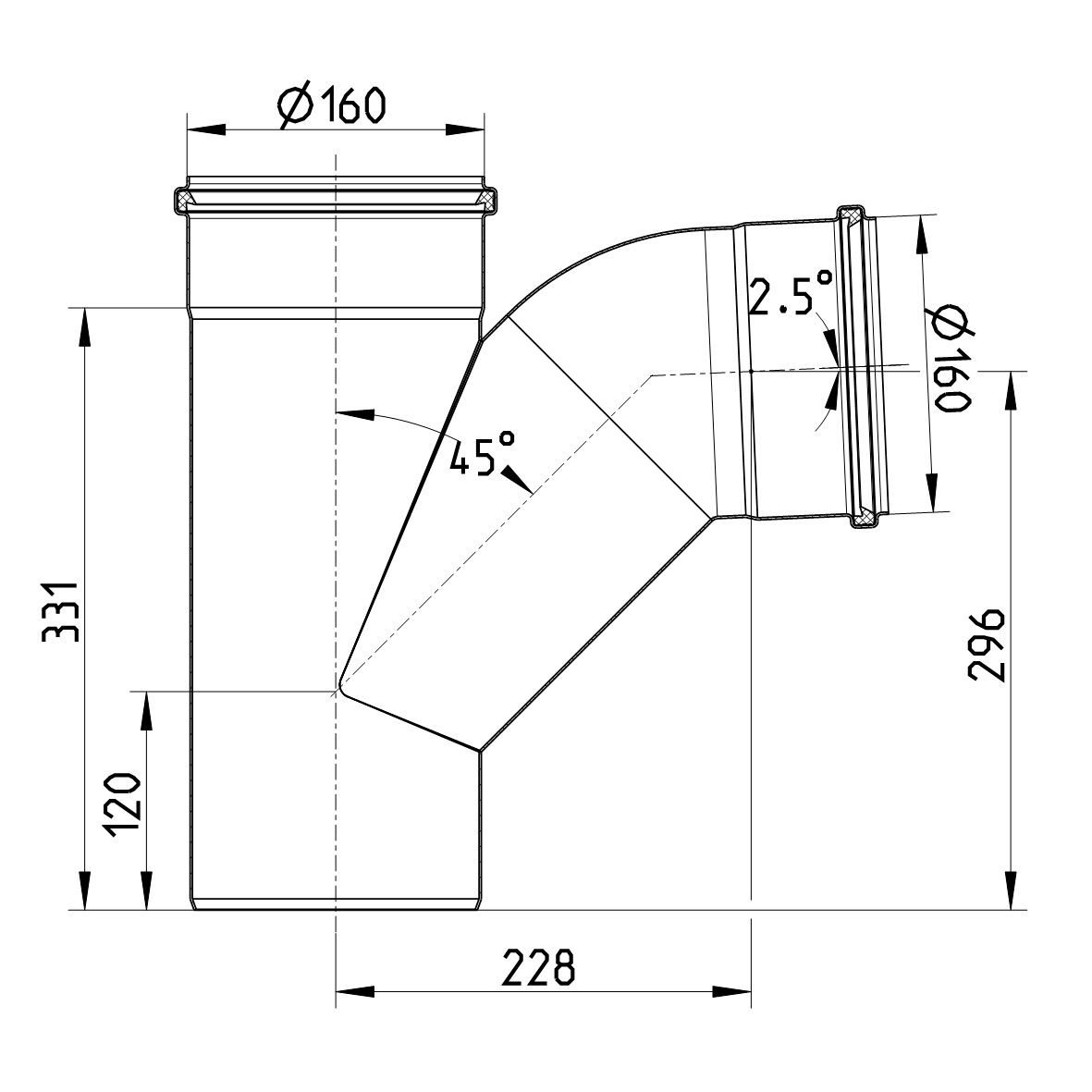

-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 331 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 4,52 |
| Weight (lbs) | 9,96 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
