SWEPT BRANCH 87.5° - (839.110.160 S)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.110.160 S
EAN no.: 5705499402643
VVS no.: 160222457
RSK no.: 1550388
NRF no.: 2170802
LVI no.: 0255244

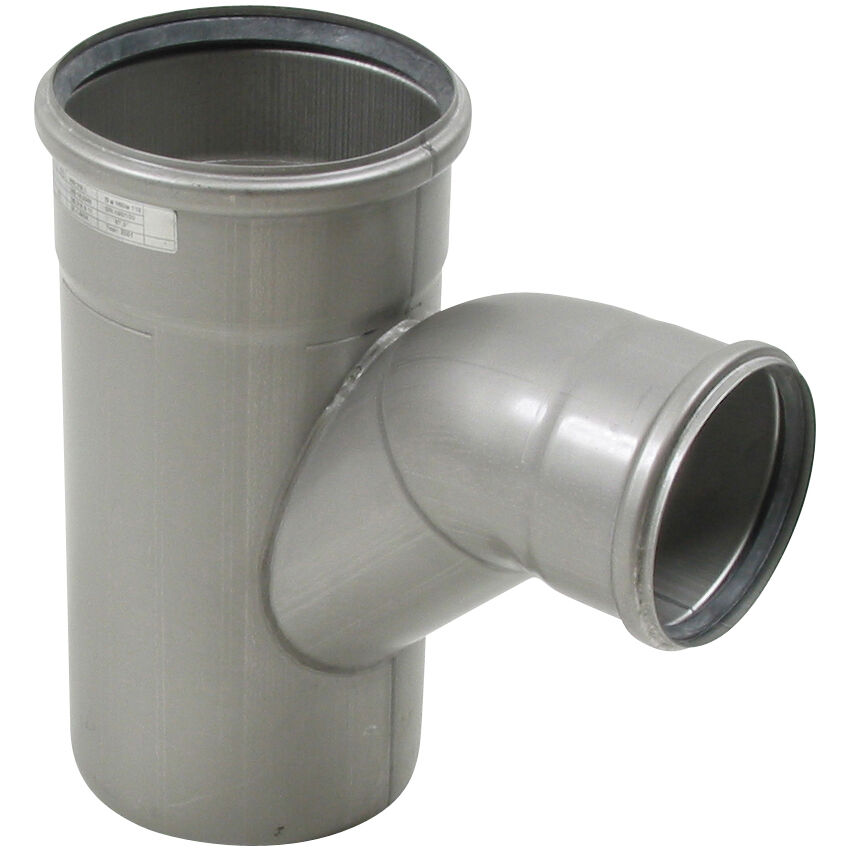

SWEPT BRANCH 87.5°

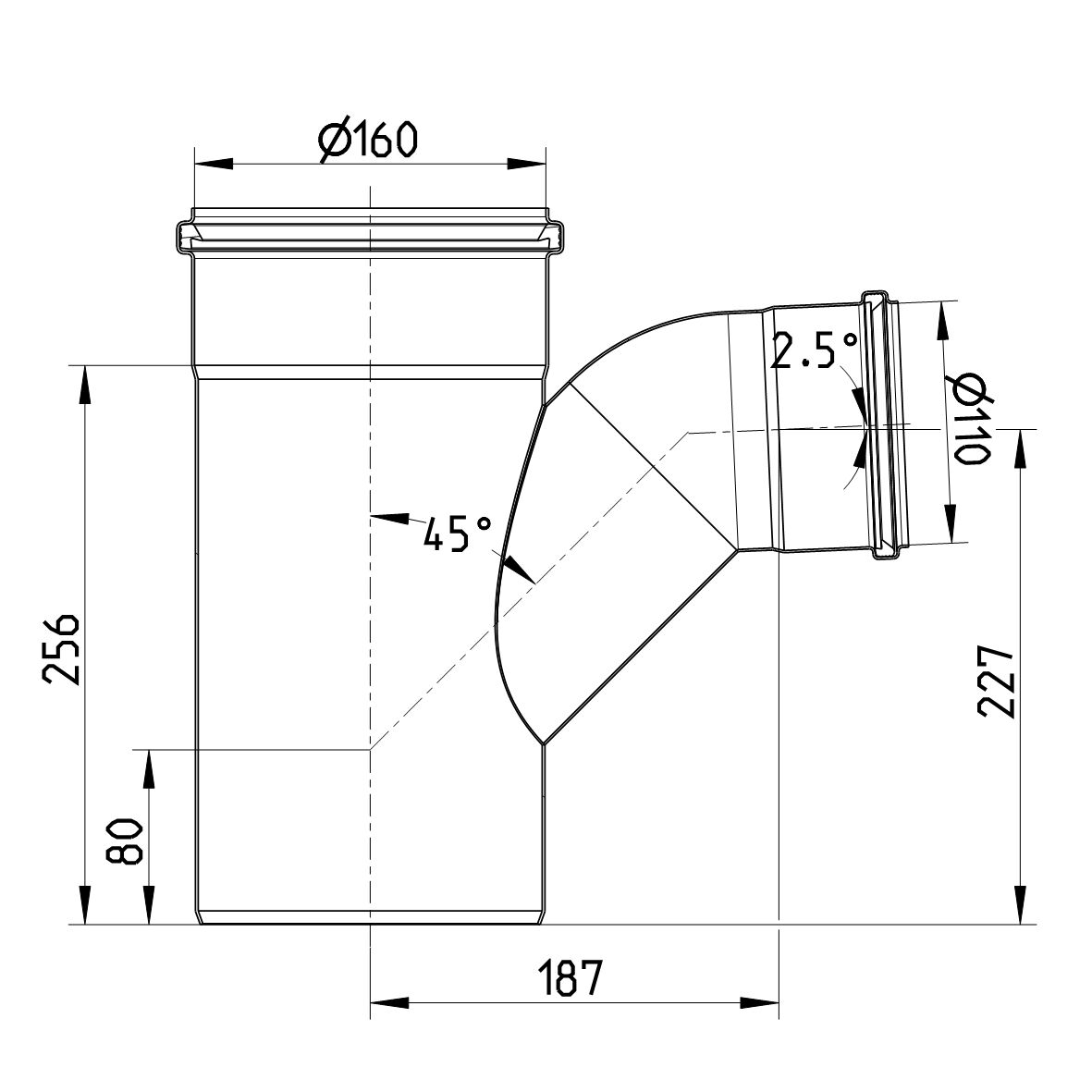

-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 256 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,53 |
| Weight (lbs) | 5,58 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19350
