DOUBLE BRANCH 89° - (832.075.110 AS)
×
![]()
Part Of the Series: Double branch-89-90
Type no.: 832.075.110 AS
EAN no.: 5705499409154
NRF no.: 2172598

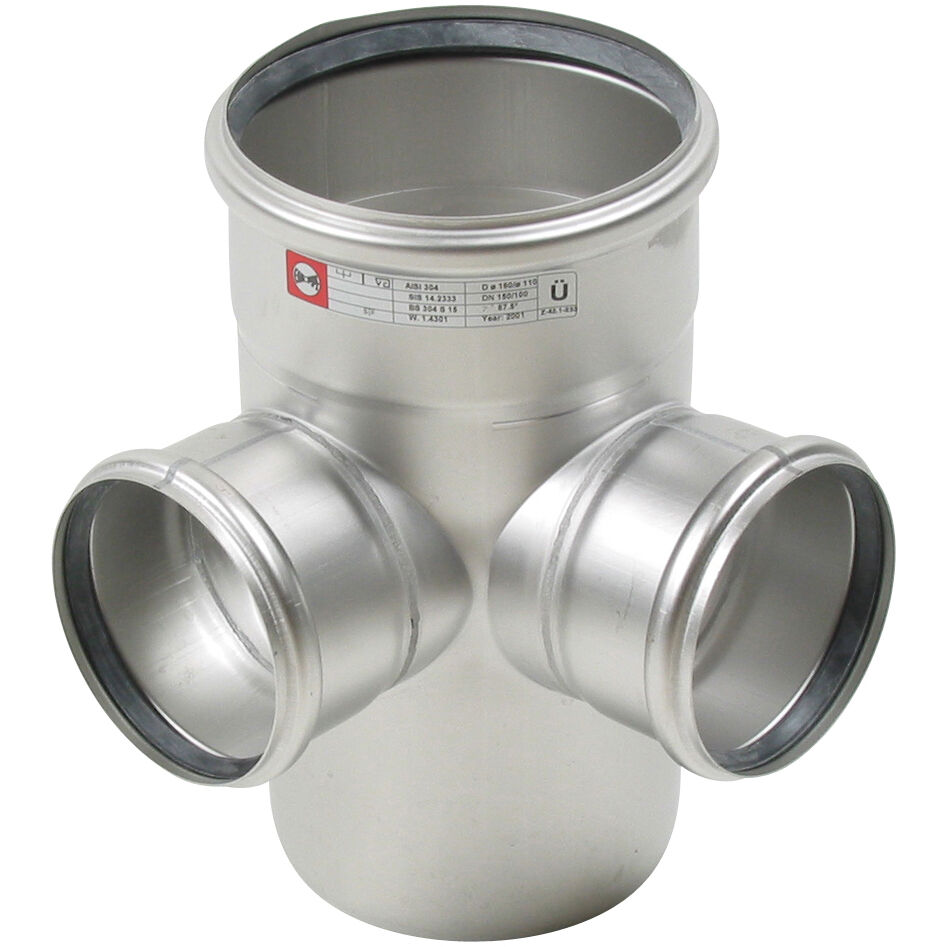

DOUBLE BRANCH 89°

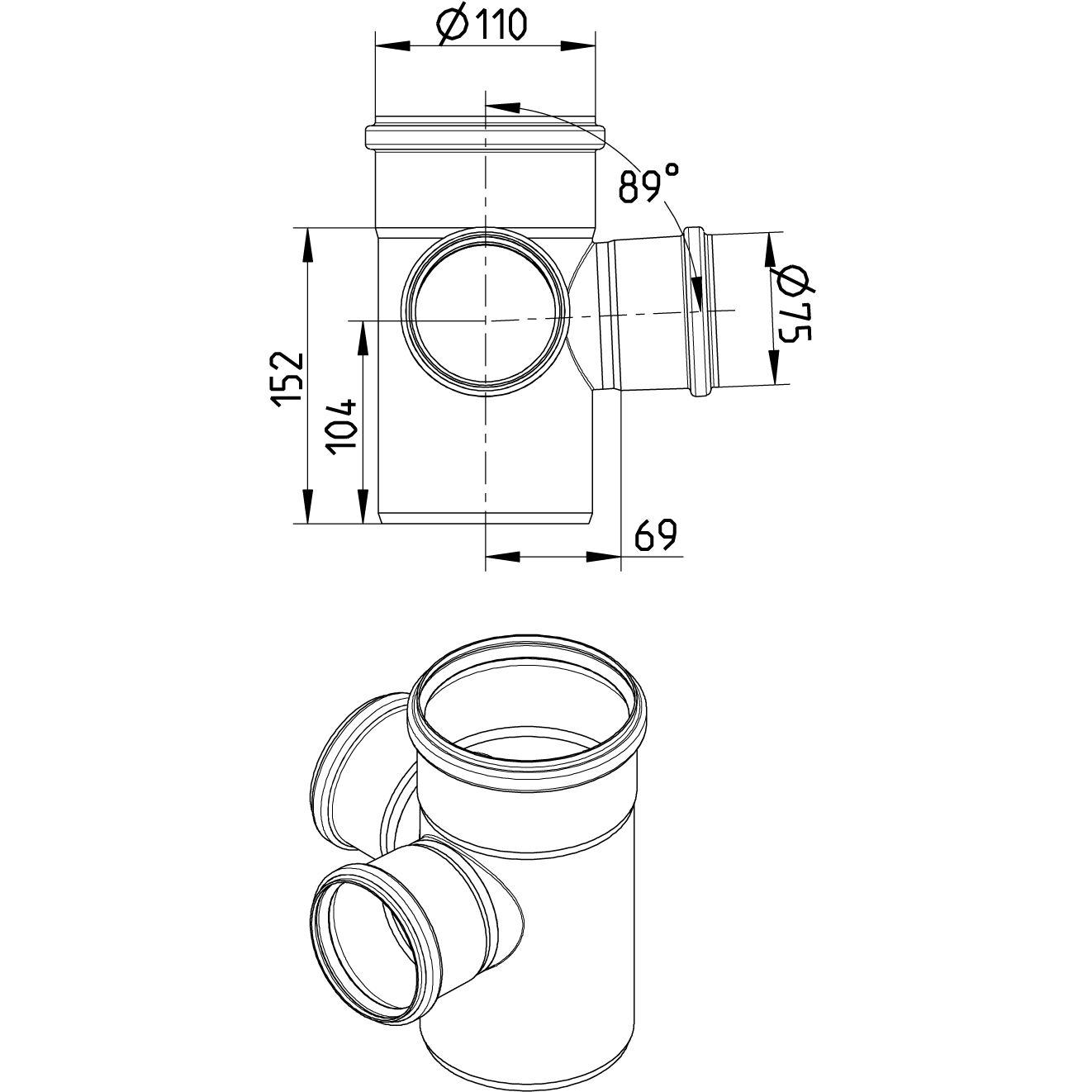

-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 152 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,89 |
| Weight (lbs) | 1,96 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
