DOUBLE BRANCH 87.5° - (831.160.160 S)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.160.160 S
EAN no.: 5705499401936
VVS no.: 160231460
RSK no.: 1549407
NRF no.: 2172589
LVI no.: 0254165

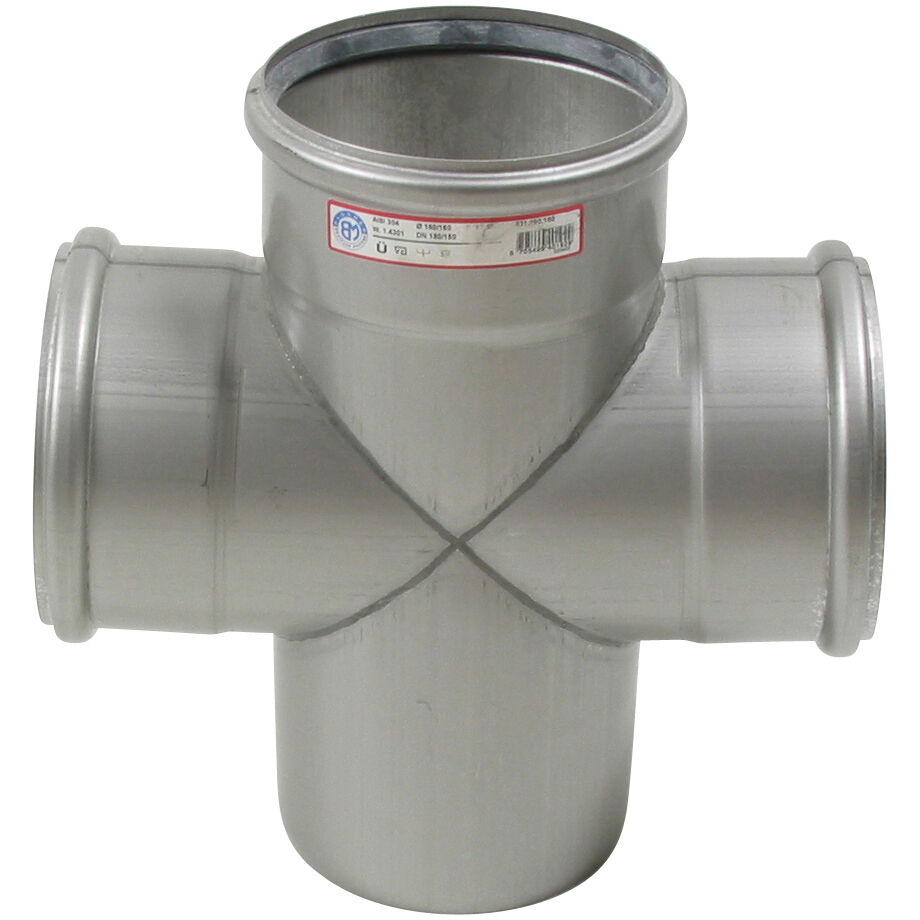

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 288 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,91 |
| Weight (lbs) | 6,42 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
