DOUBLE BRANCH 87.5° - (831.110.160 S)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.110.160 S
EAN no.: 5705499401912
VVS no.: 160231457
RSK no.: 1549406
NRF no.: 2172587
LVI no.: 0254164

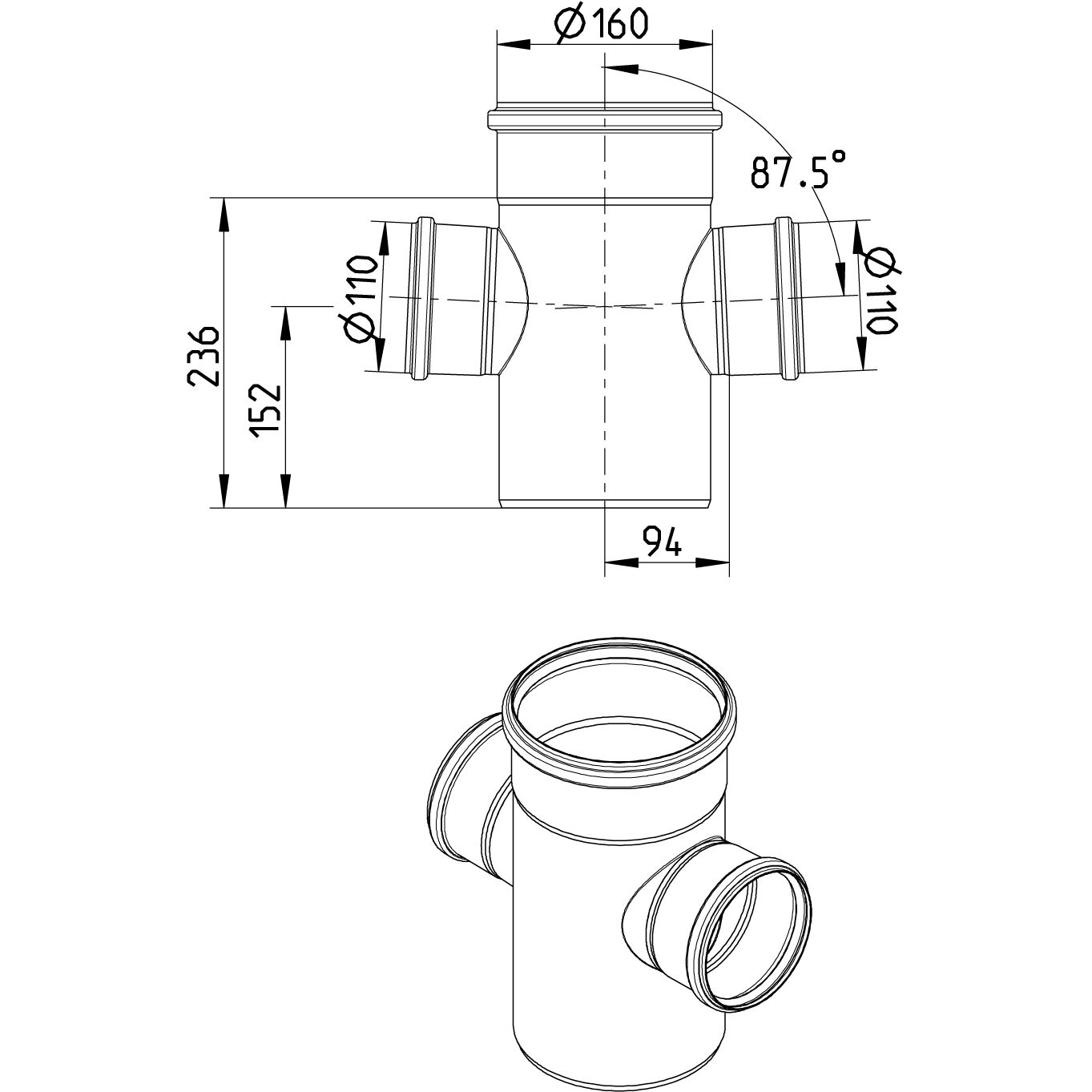

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 236 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,05 |
| Weight (lbs) | 4,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC320524XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products
