DOUBLE BRANCH 87.5° - (831.110.160)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.110.160
EAN no.: 5705499401905
VVS no.: 160231157
NRF no.: 2172346
LVI no.: 0244164

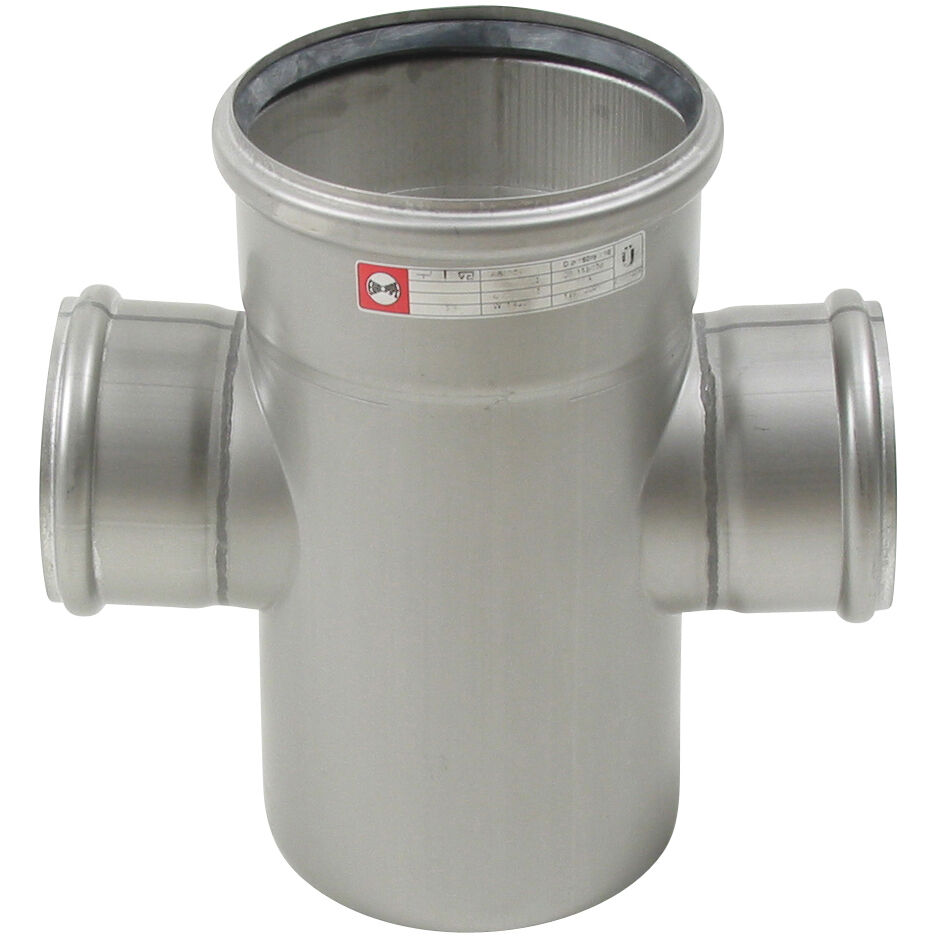

DOUBLE BRANCH 87.5°

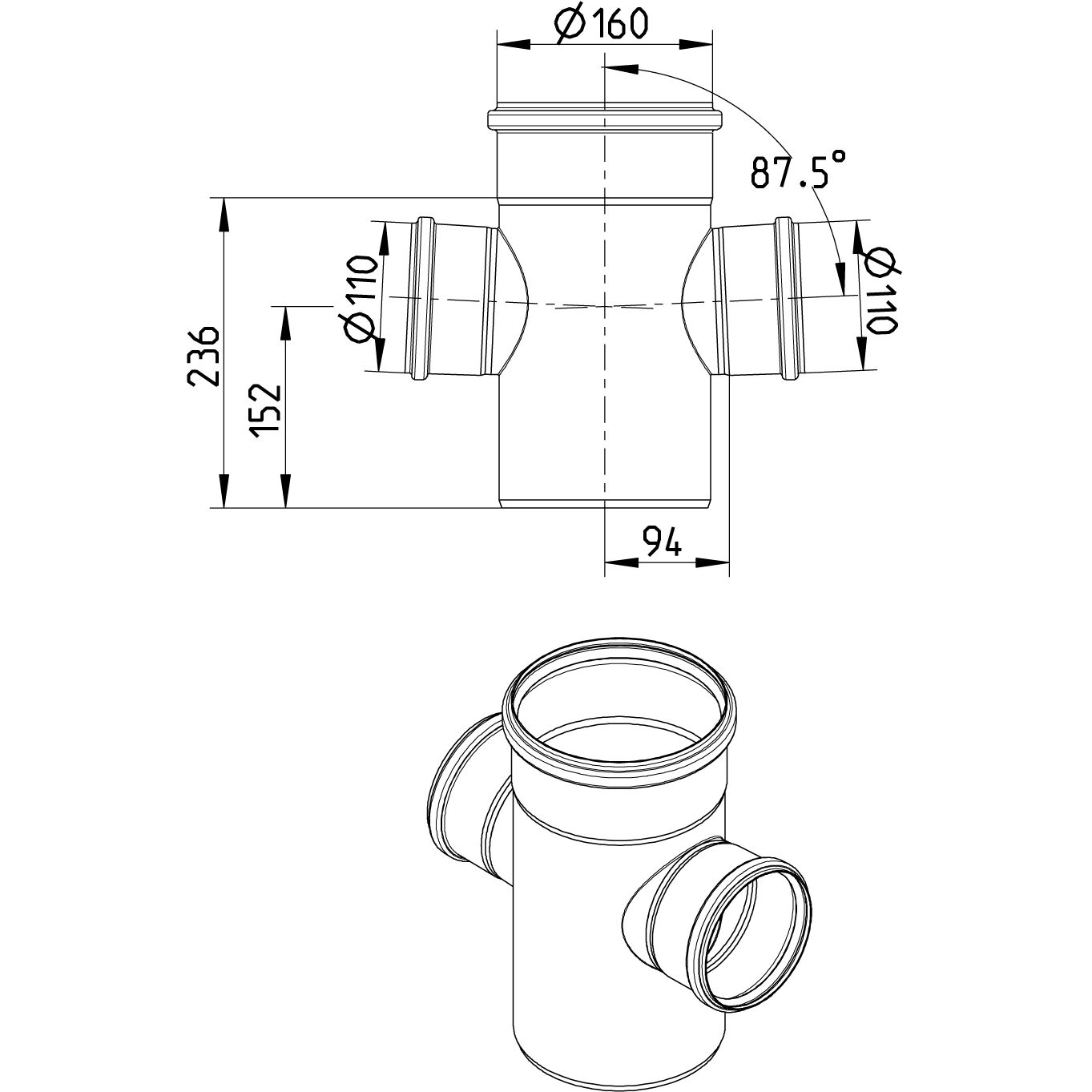

-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 236 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,05 |
| Weight (lbs) | 4,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
