DOUBLE BRANCH 87.5° - (831.110.110 S)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.110.110 S
EAN no.: 5705499401899
VVS no.: 160231410
RSK no.: 1550374
NRF no.: 2172585
LVI no.: 0254160

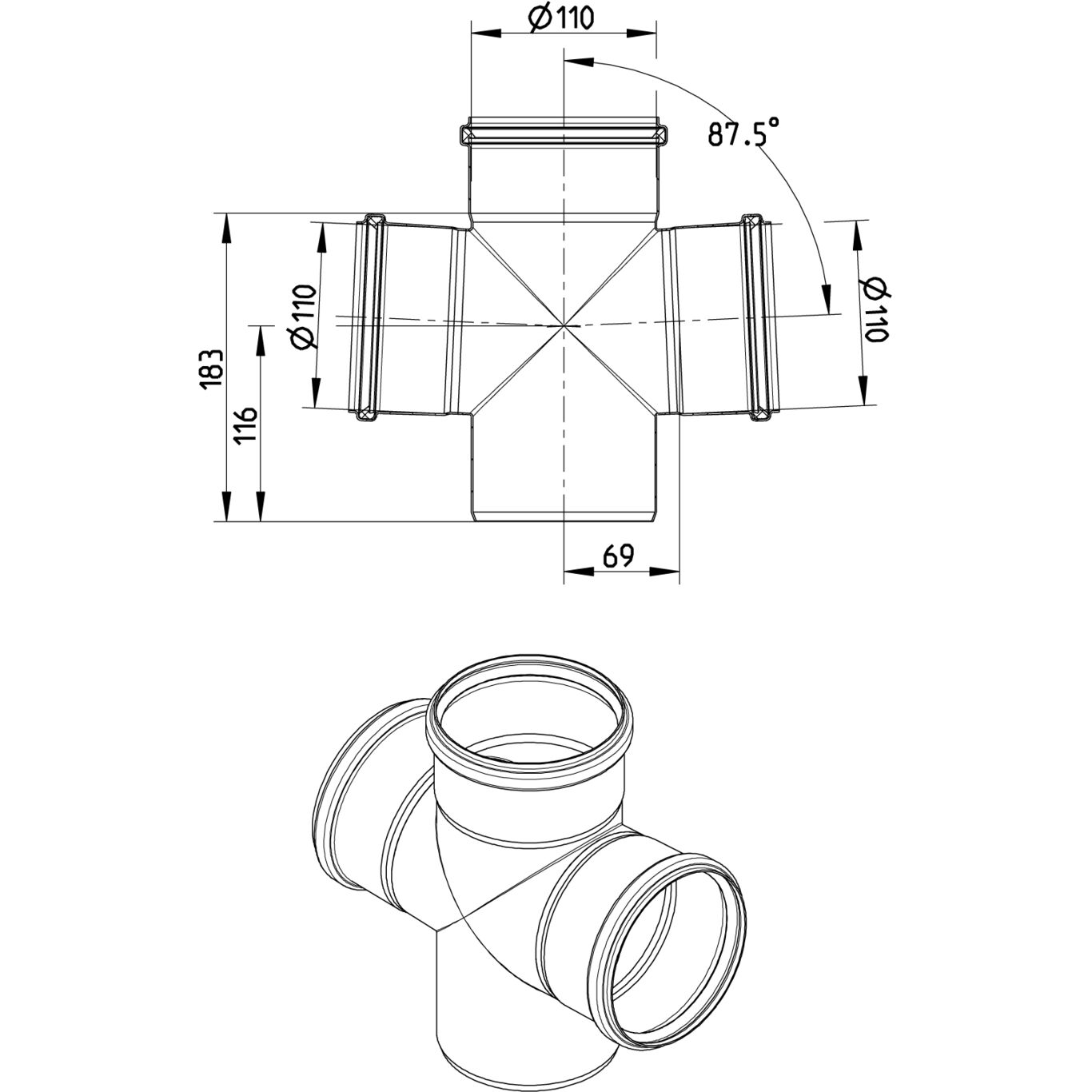

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 183 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,13 |
| Weight (lbs) | 2,49 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24 Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 Lloyds Register LR22419510TA_02
