DOUBLE BRANCH 45° - (836.075.110 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.075.110 S
EAN no.: 5705499402193
VVS no.: 160235408
RSK no.: 1550377
NRF no.: 2172609
LVI no.: 0253659

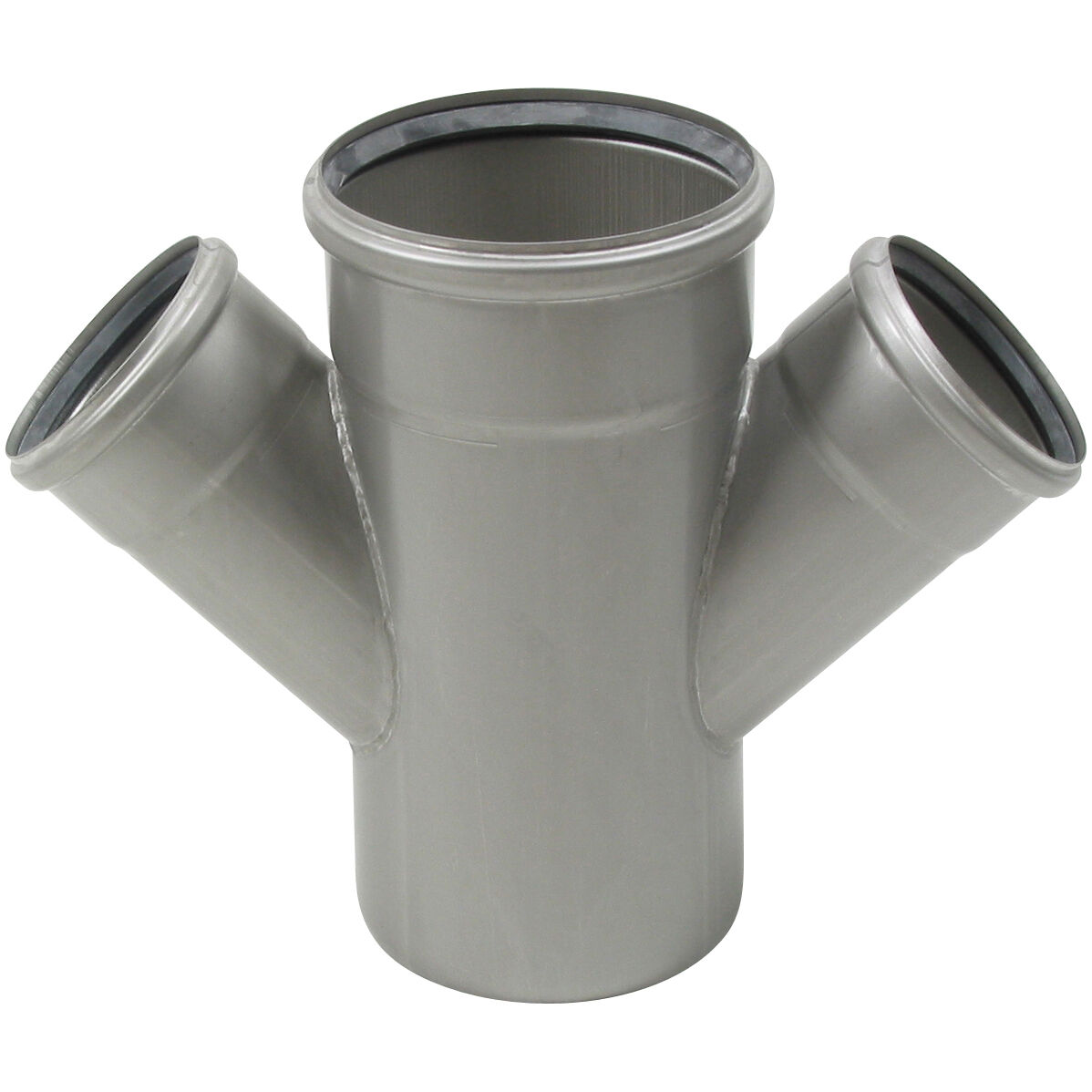

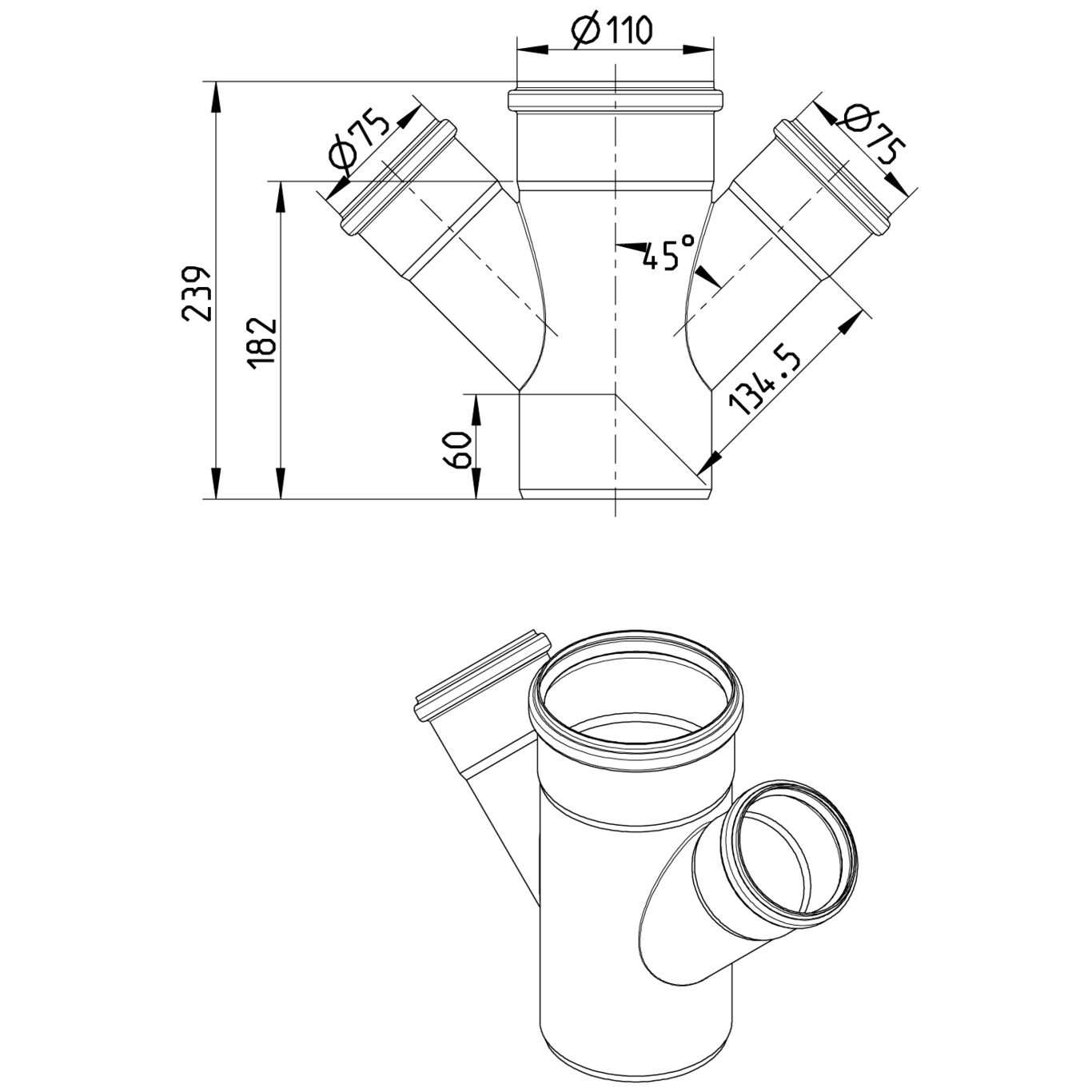

DOUBLE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 182 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,31 |
| Weight (lbs) | 2,89 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
