DOUBLE BRANCH 45° - (836.075.075 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.075.075 S
EAN no.: 5705499402179
VVS no.: 160235375
RSK no.: 1549394
NRF no.: 2172608
LVI no.: 0253656

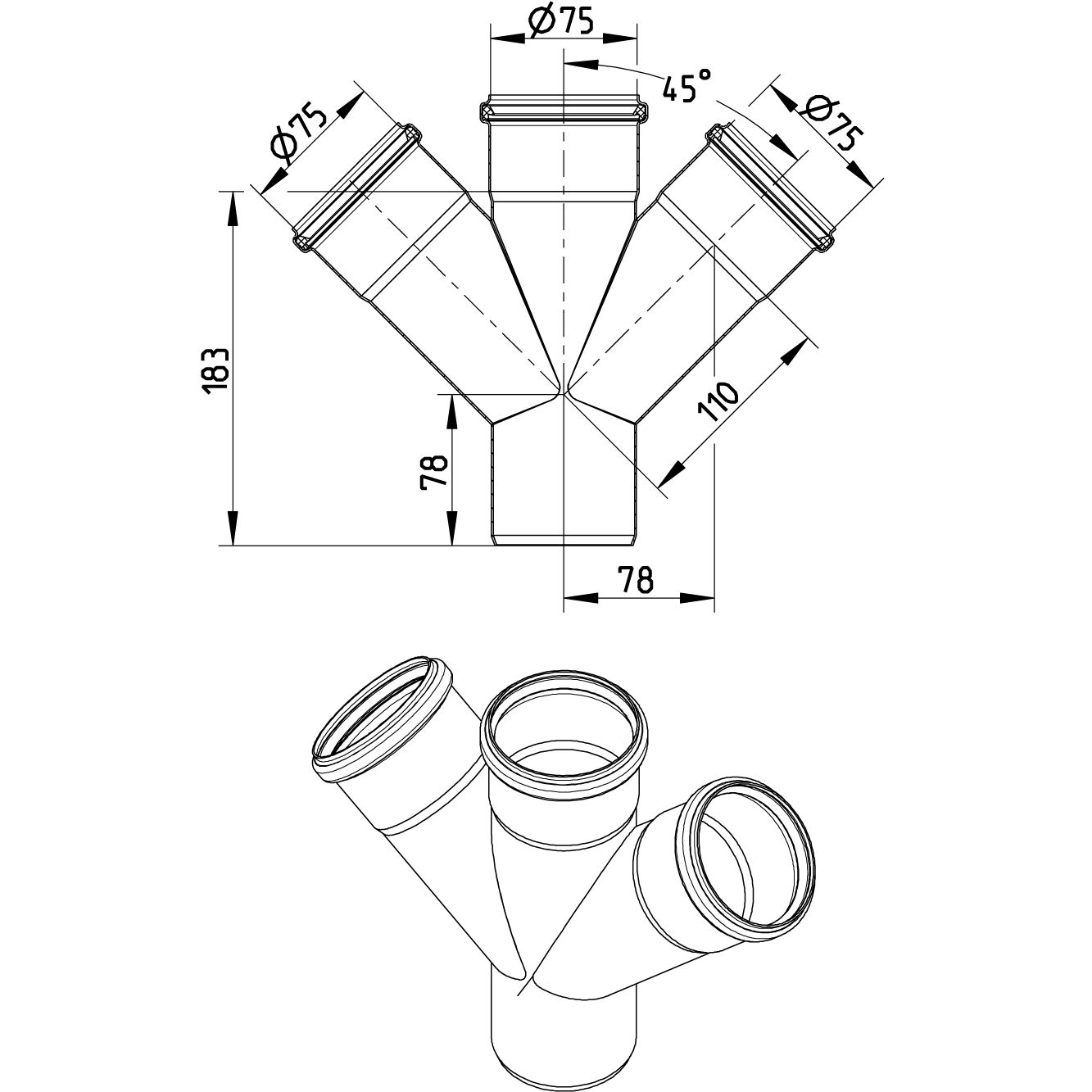

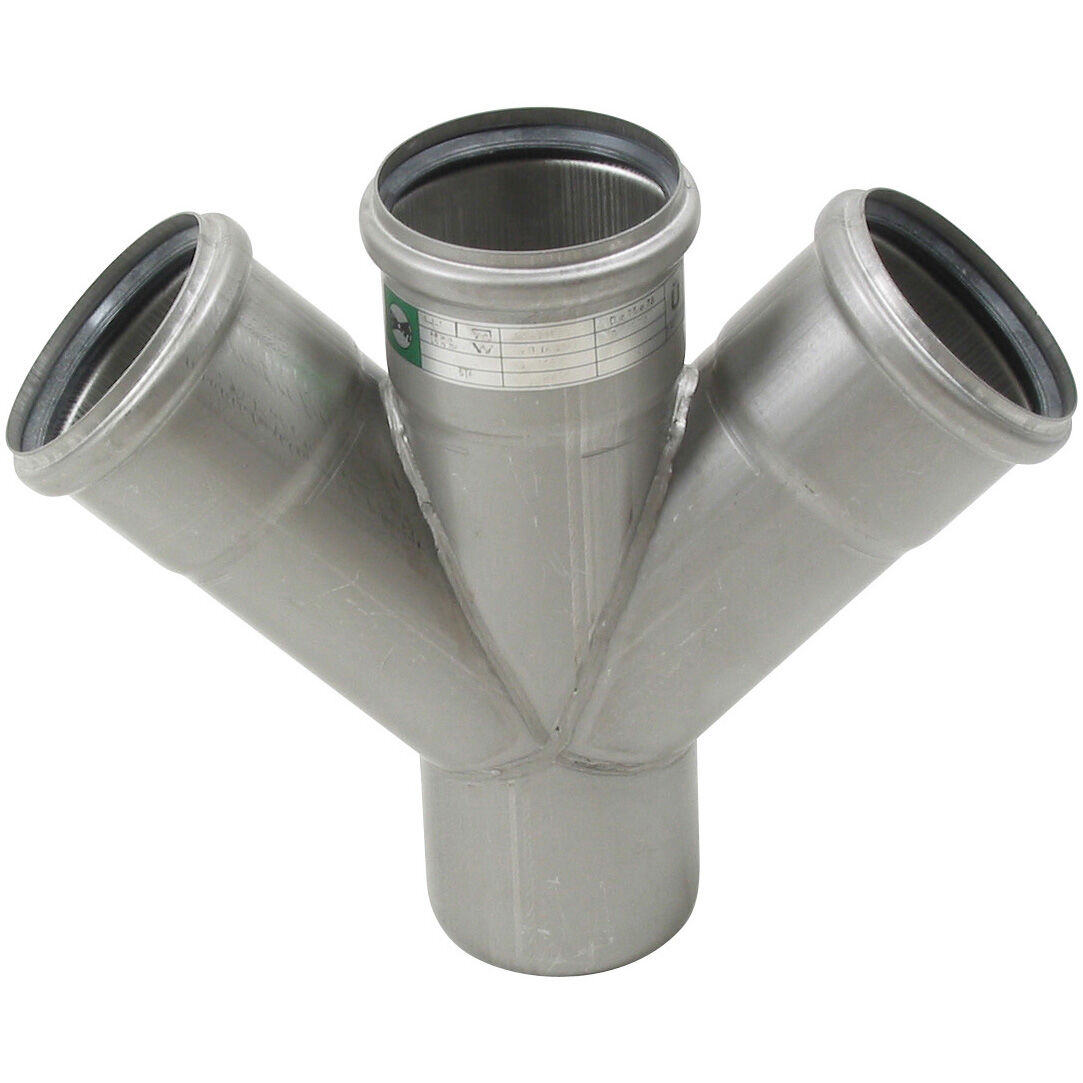

DOUBLE BRANCH 45°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 183 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 1,15 |
| Weight (lbs) | 2,54 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
