BRANCH 89° - (830.110.160 AS)
×
![]()
Part Of the Series: Branch-89
Type no.: 830.110.160 AS
EAN no.: 5705499408997
NRF no.: 2172571

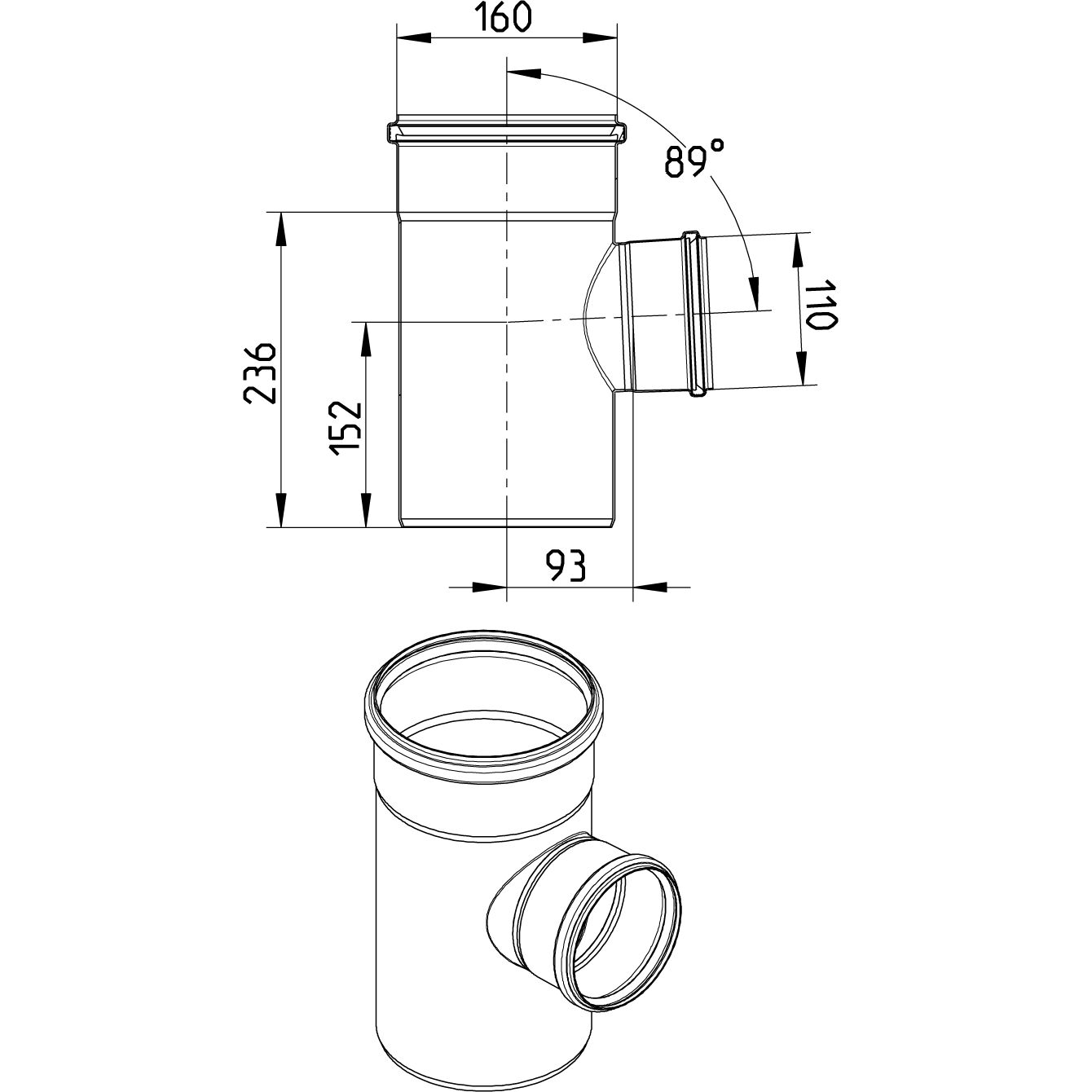

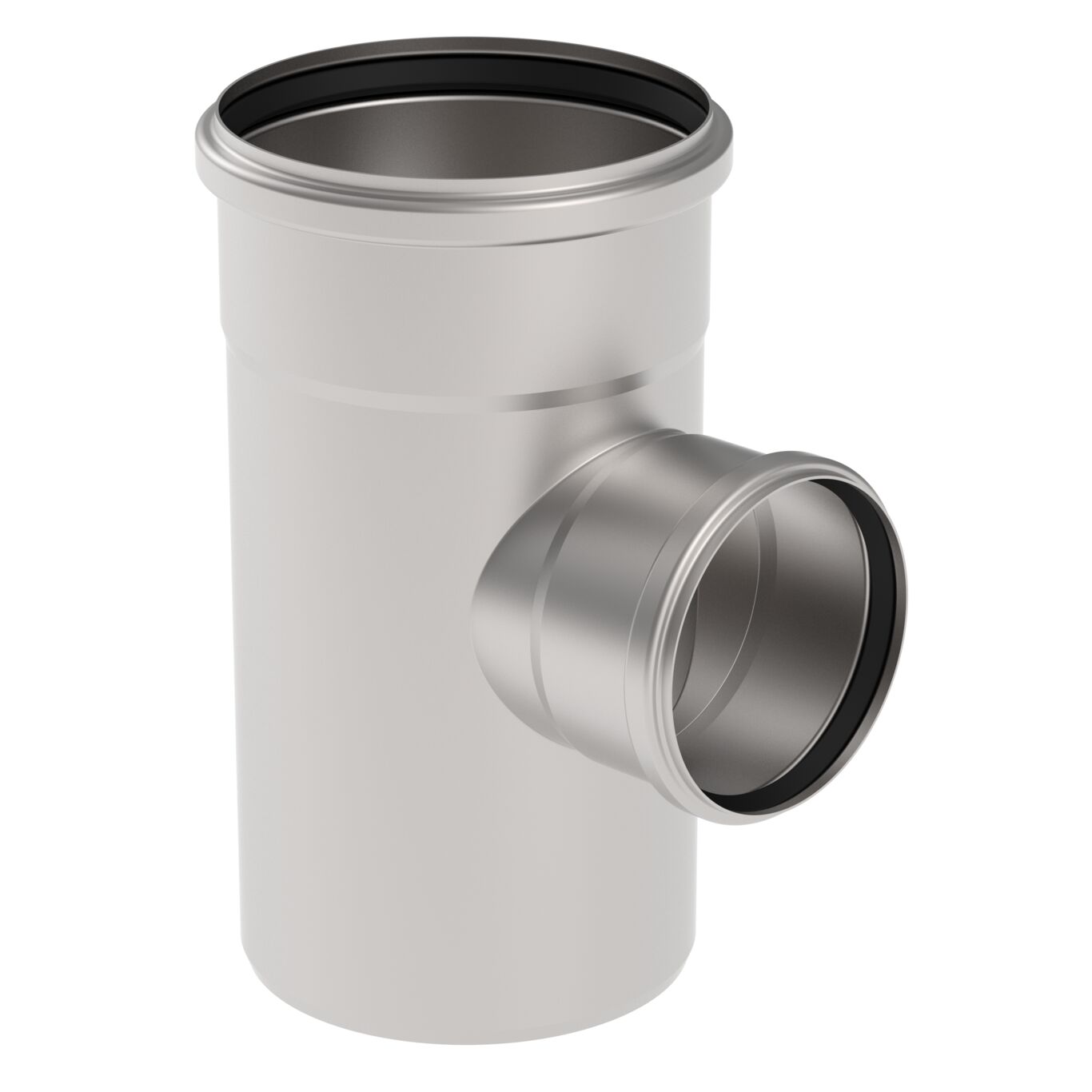

BRANCH 89°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 236 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,83 |
| Weight (lbs) | 4,03 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19350
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 RU - 0212322 Pipes-21 PL - Hygienic Certificate - All Products
