BRANCH 87.5° - (830.200.250 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.200.250 S
EAN no.: 5705499121636
VVS no.: 160221549
RSK no.: 1552158
NRF no.: 2170858
LVI no.: 0251970

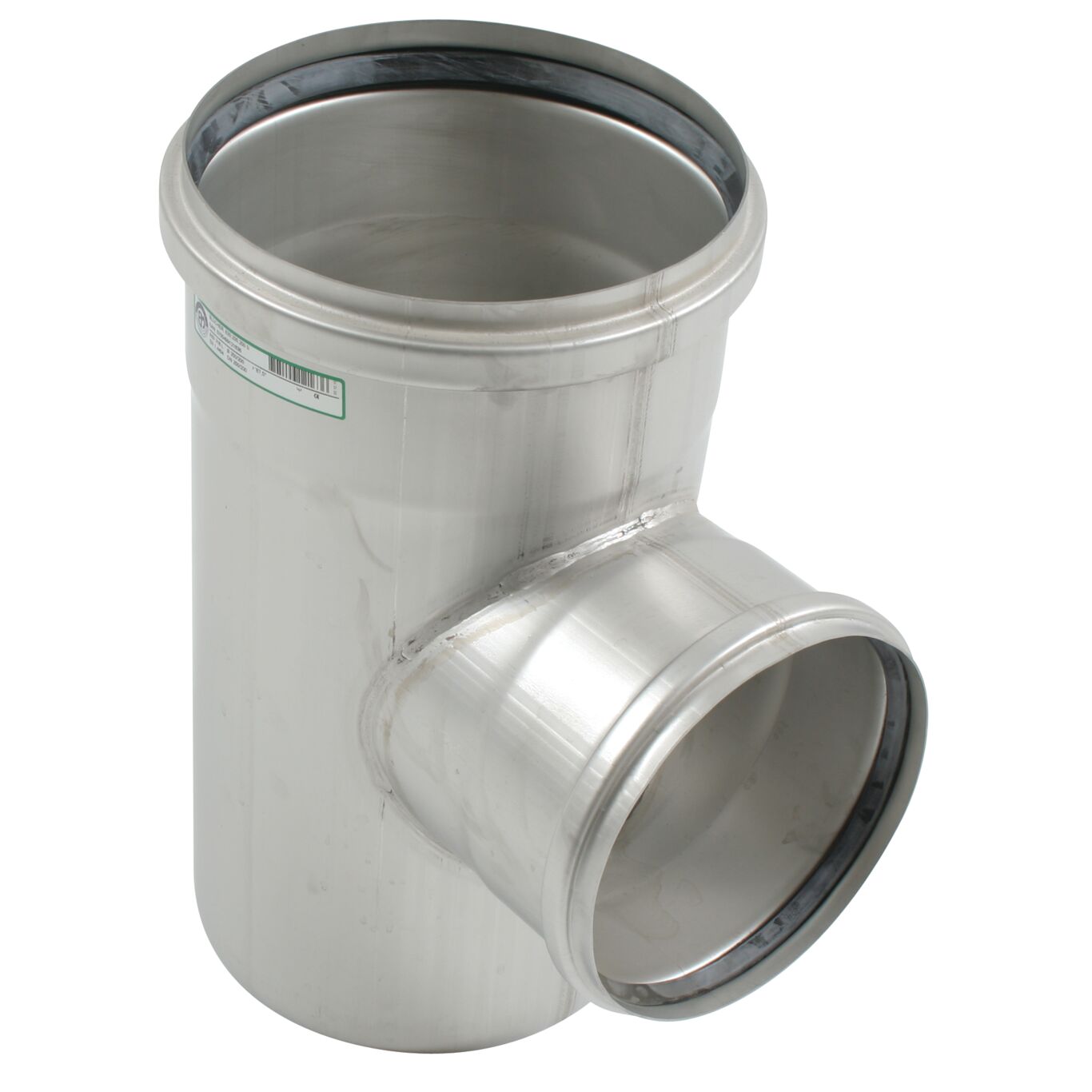

BRANCH 87.5°

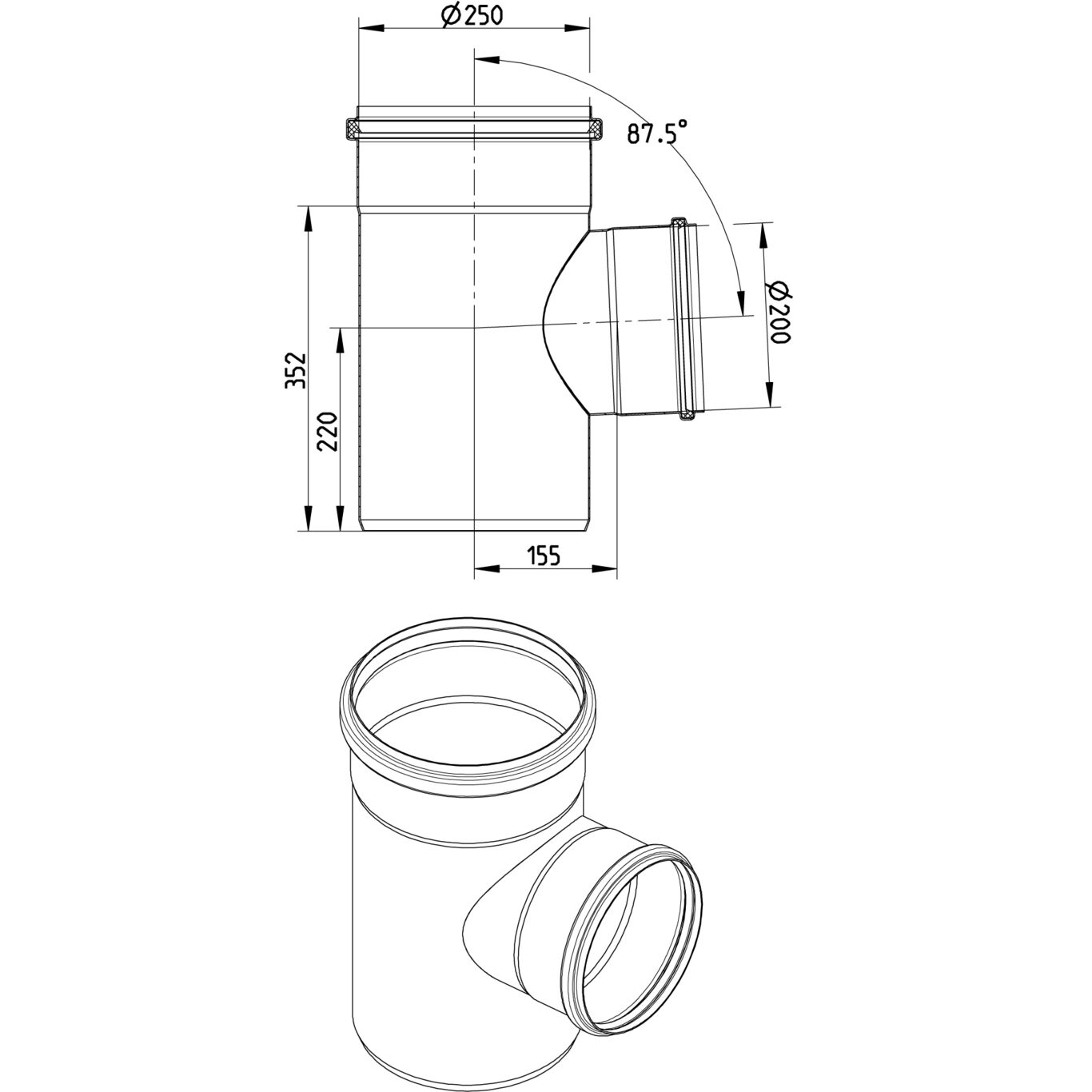

-Pipe diameter: Ø250mm. Branch diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 352 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 10 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 5,50 |
| Weight (lbs) | 12,13 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains
