BRANCH 87.5° - (830.160.200 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.160.200 S
EAN no.: 5705499411003
VVS no.: 160221498
RSK no.: 1551549
NRF no.: 2170821
LVI no.: 0251968

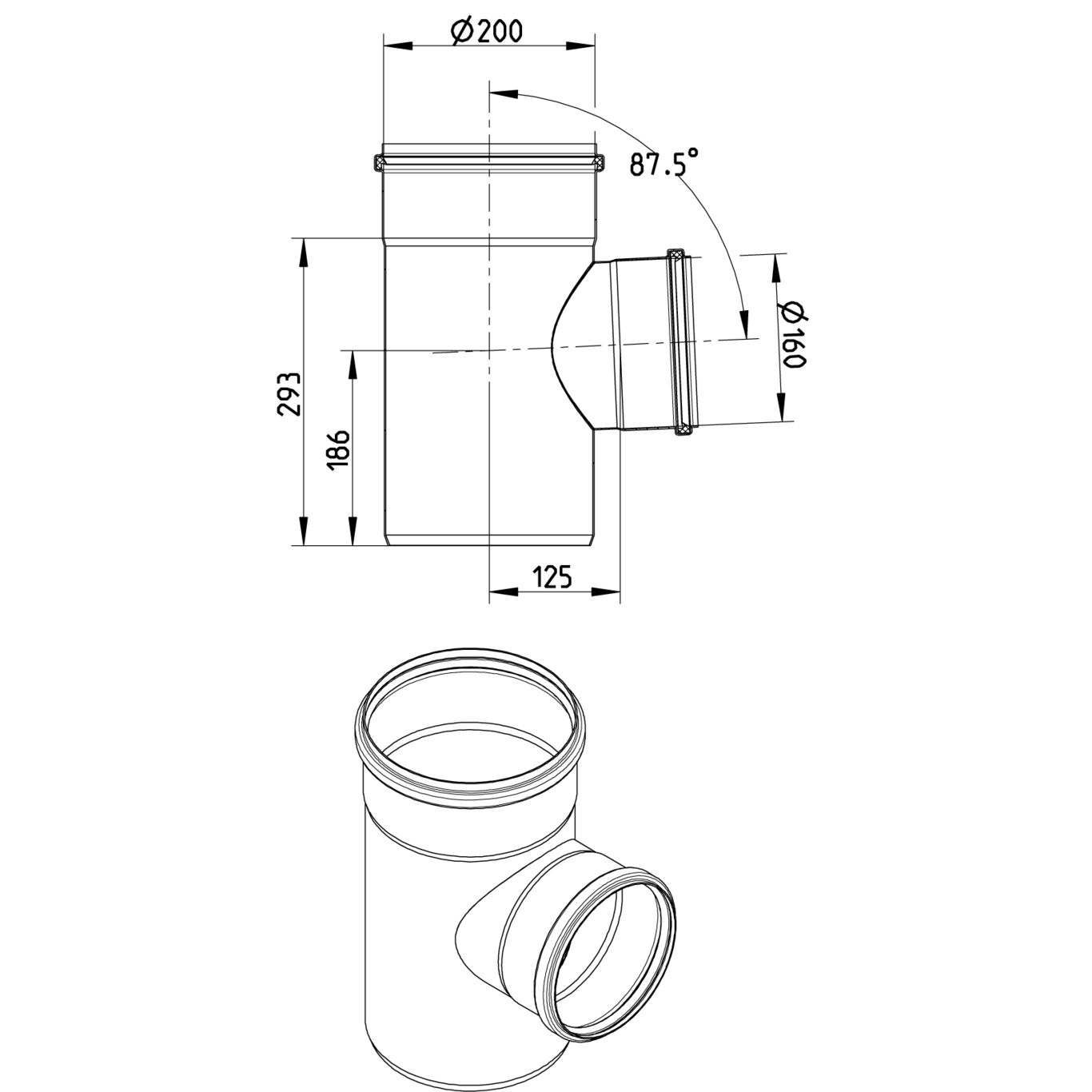

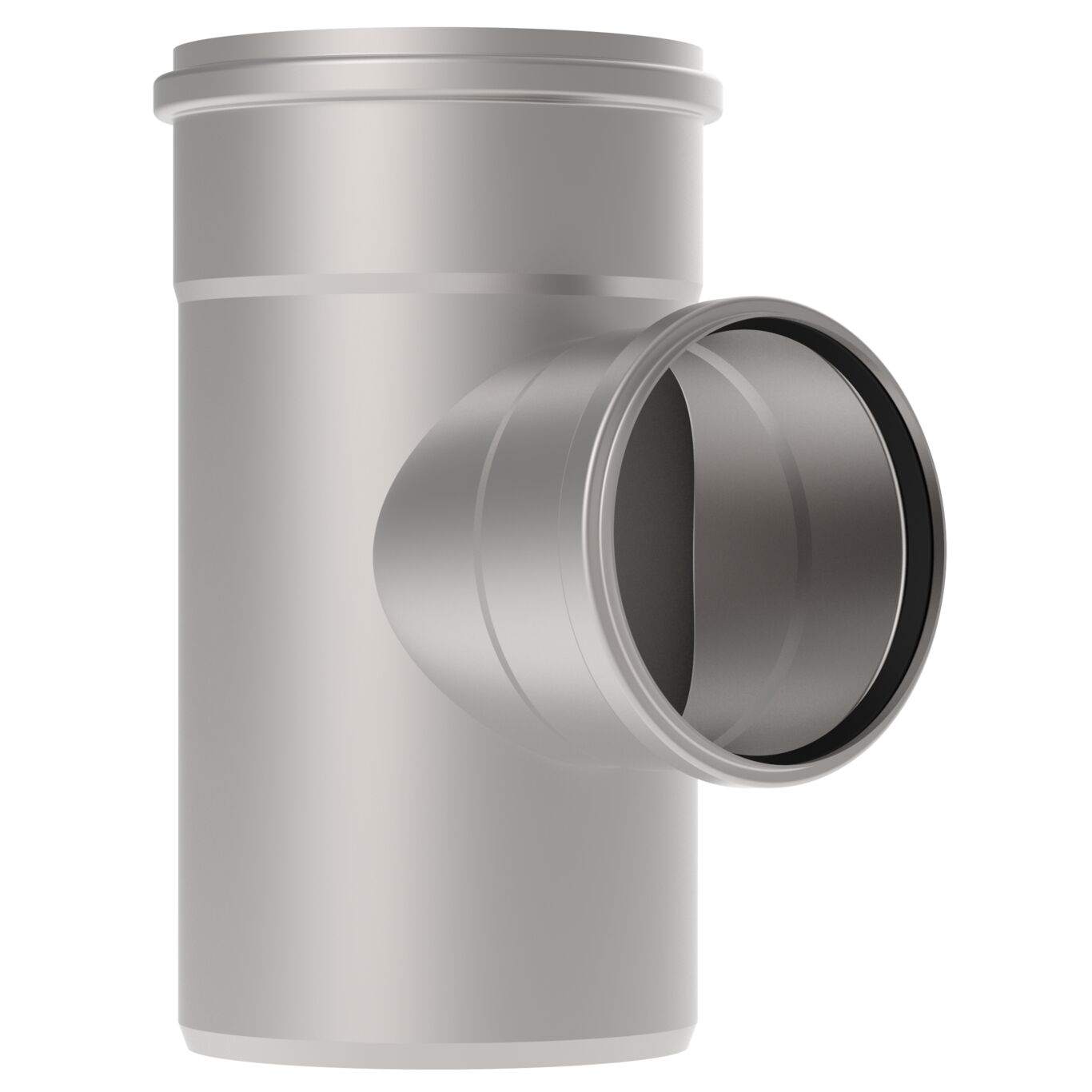

BRANCH 87.5°
-Pipe diameter: Ø200mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 293 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 8 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 3,45 |
| Weight (lbs) | 7,61 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe
