BRANCH 87.5° - (830.125.125 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.125.125 S
EAN no.: 5705499409017
VVS no.: 160221425
RSK no.: 1551174
NRF no.: 2170831
LVI no.: 0256025

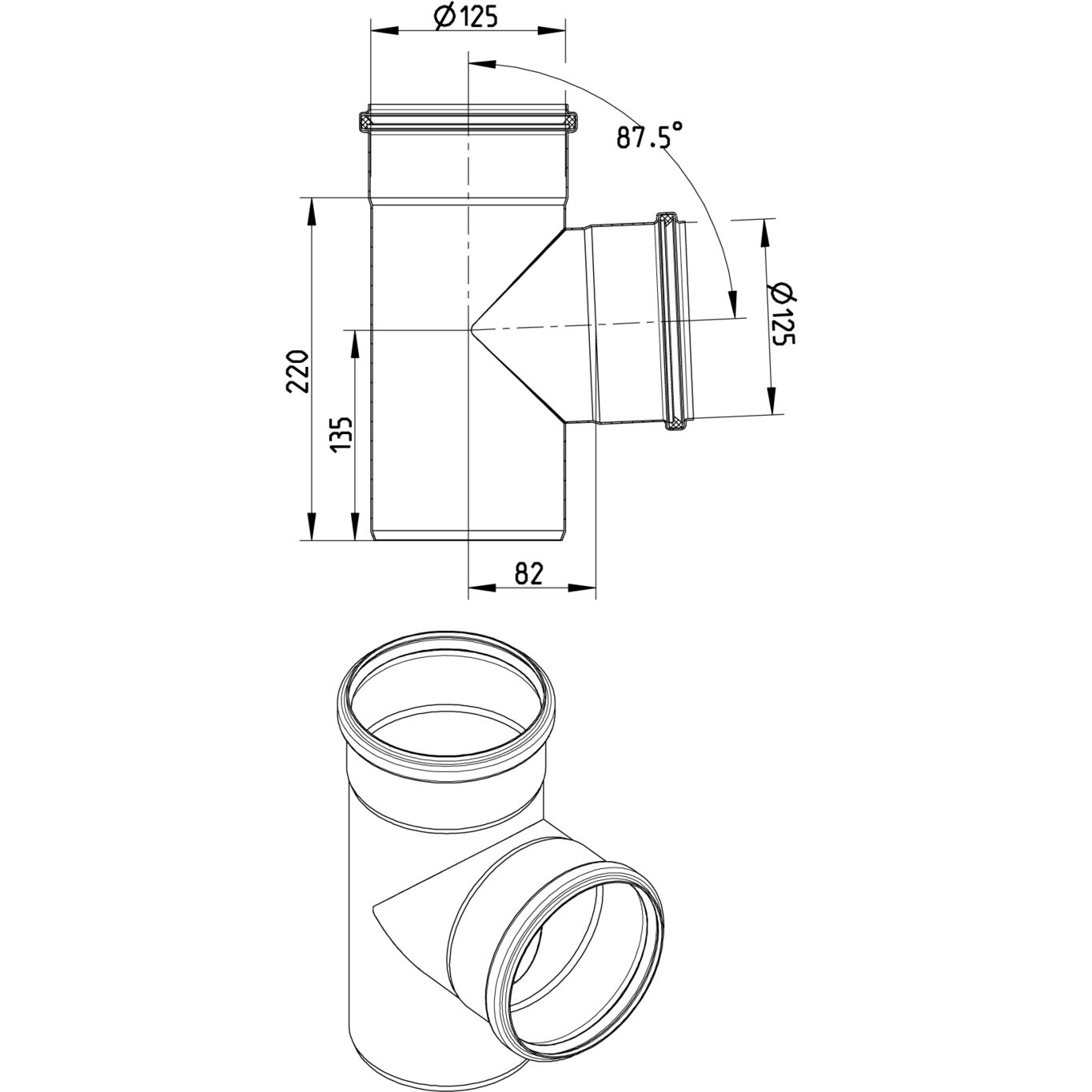

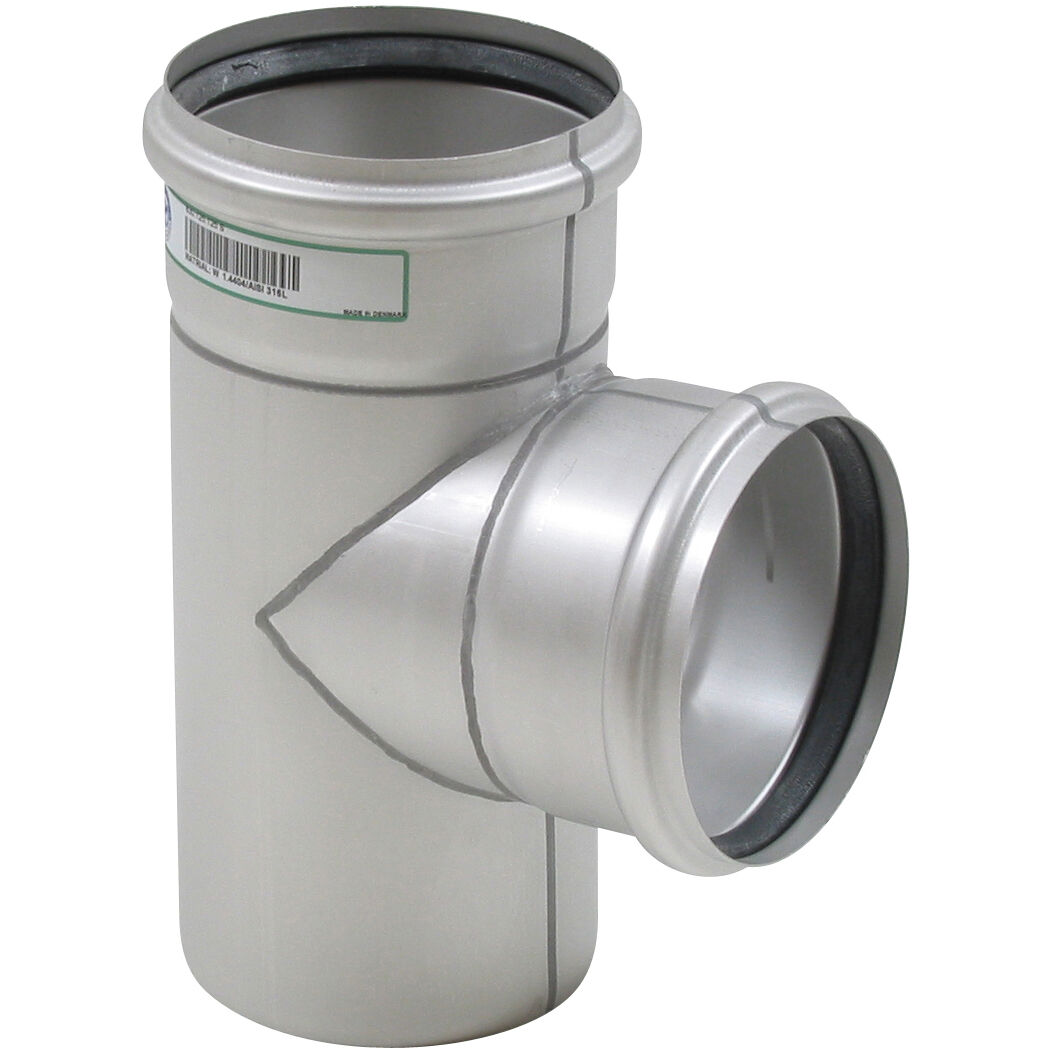

BRANCH 87.5°
-Pipe diameter: Ø125mm. Branch diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 220 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,17 |
| Weight (lbs) | 2,58 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19350
