BRANCH 87.5° - (830.110.110 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.110.110 S
EAN no.: 5705499401738
VVS no.: 160221410
RSK no.: 1550305
NRF no.: 2170826
LVI no.: 0251960

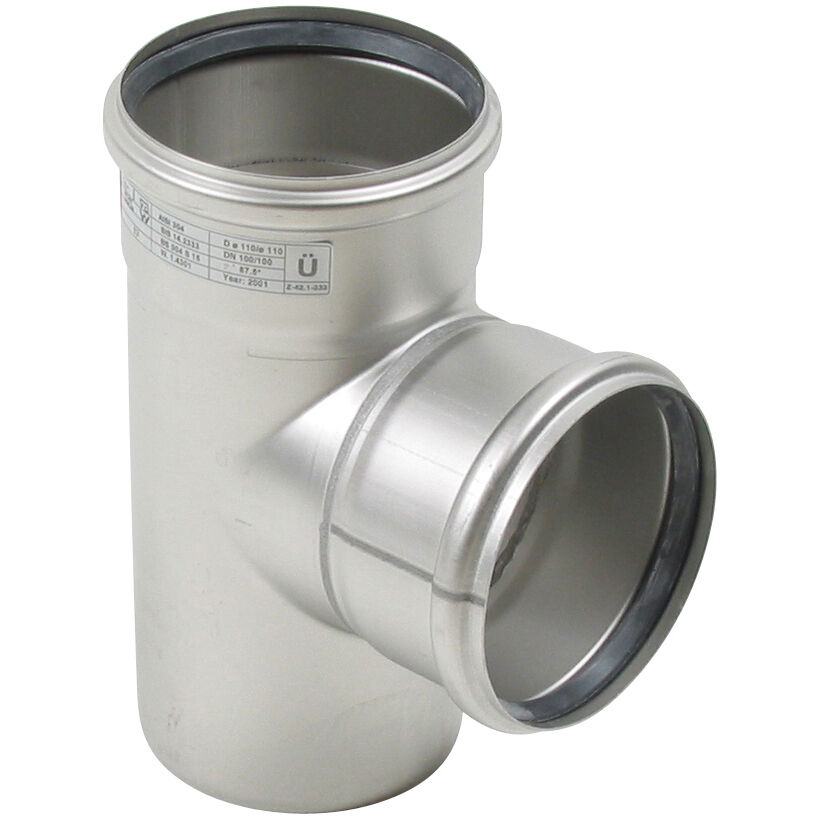

BRANCH 87.5°

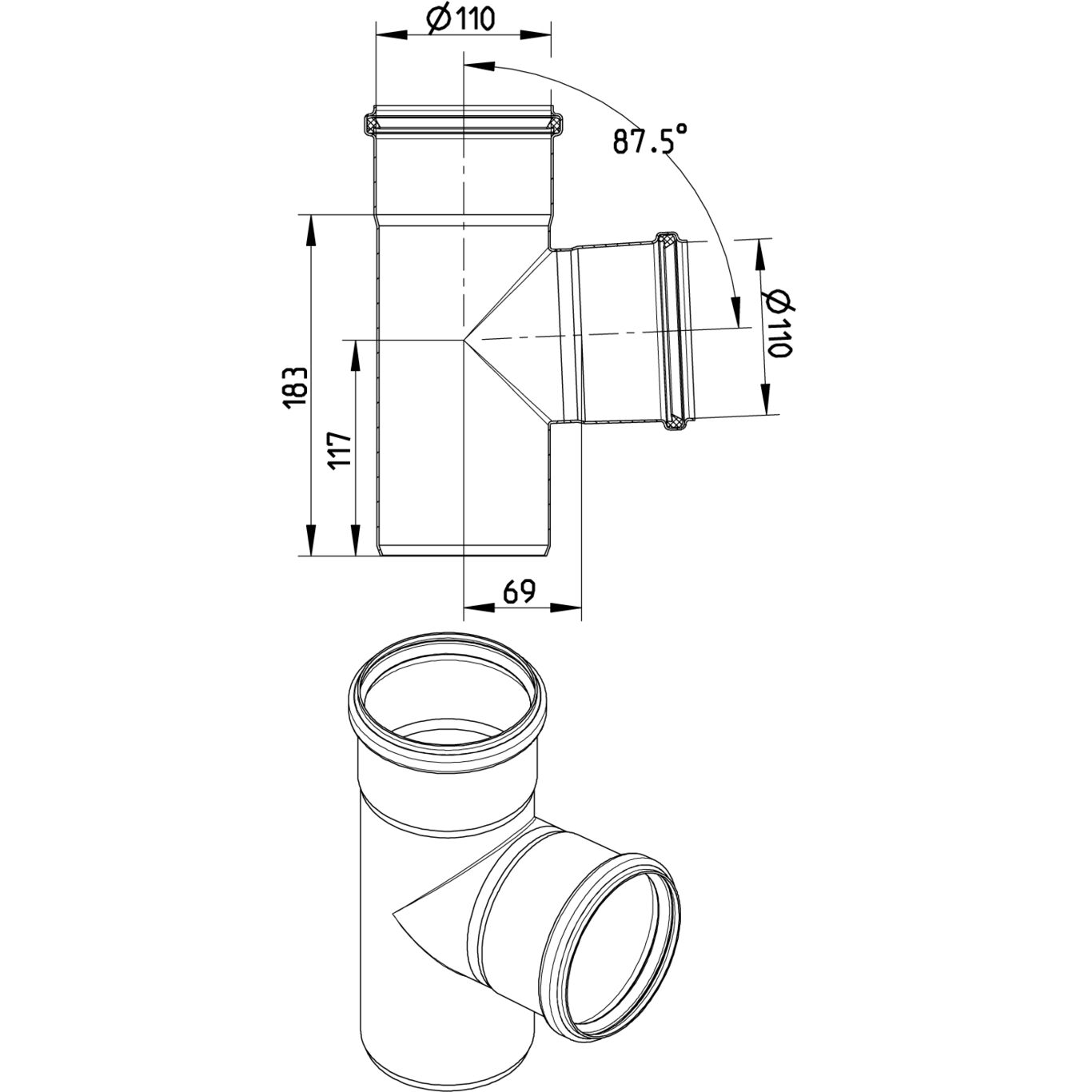

-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 183 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,89 |
| Weight (lbs) | 1,94 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19350
