BRANCH 67.5° - (829.075.075)
×
![]()
Part Of the Series: Branch-67.5
Type no.: 829.075.075
EAN no.: 5705499401592
VVS no.: 160223075
NRF no.: 2172331
LVI no.: 0246012

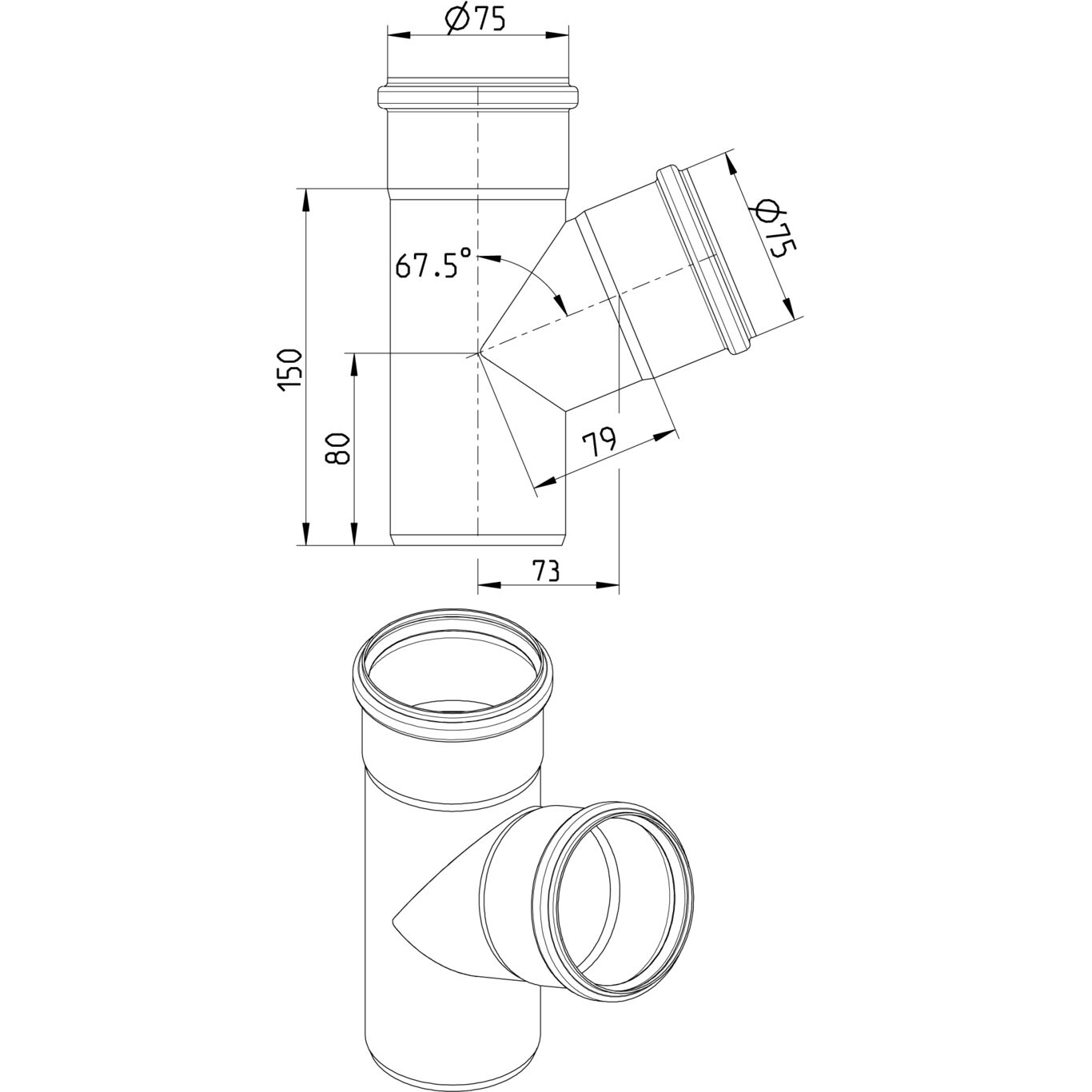

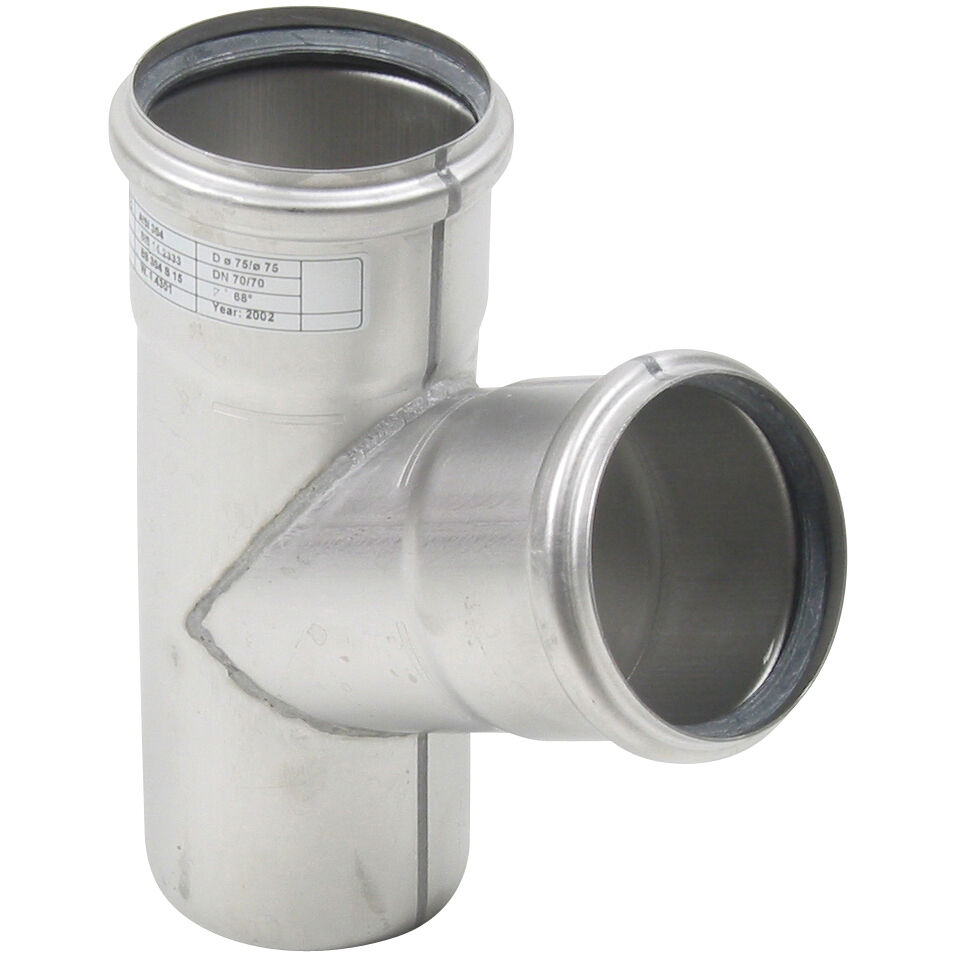

BRANCH 67.5°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 67.5 |
| Length (mm) | 150 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,53 |
| Weight (lbs) | 1,17 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
