OBLIQUE BRANCH 45° - (838.315.315 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.315.315 S
EAN no.: 5705499413885
VVS no.: 160224615
RSK no.: 1554590
NRF no.: 2172634
LVI no.: 0251173

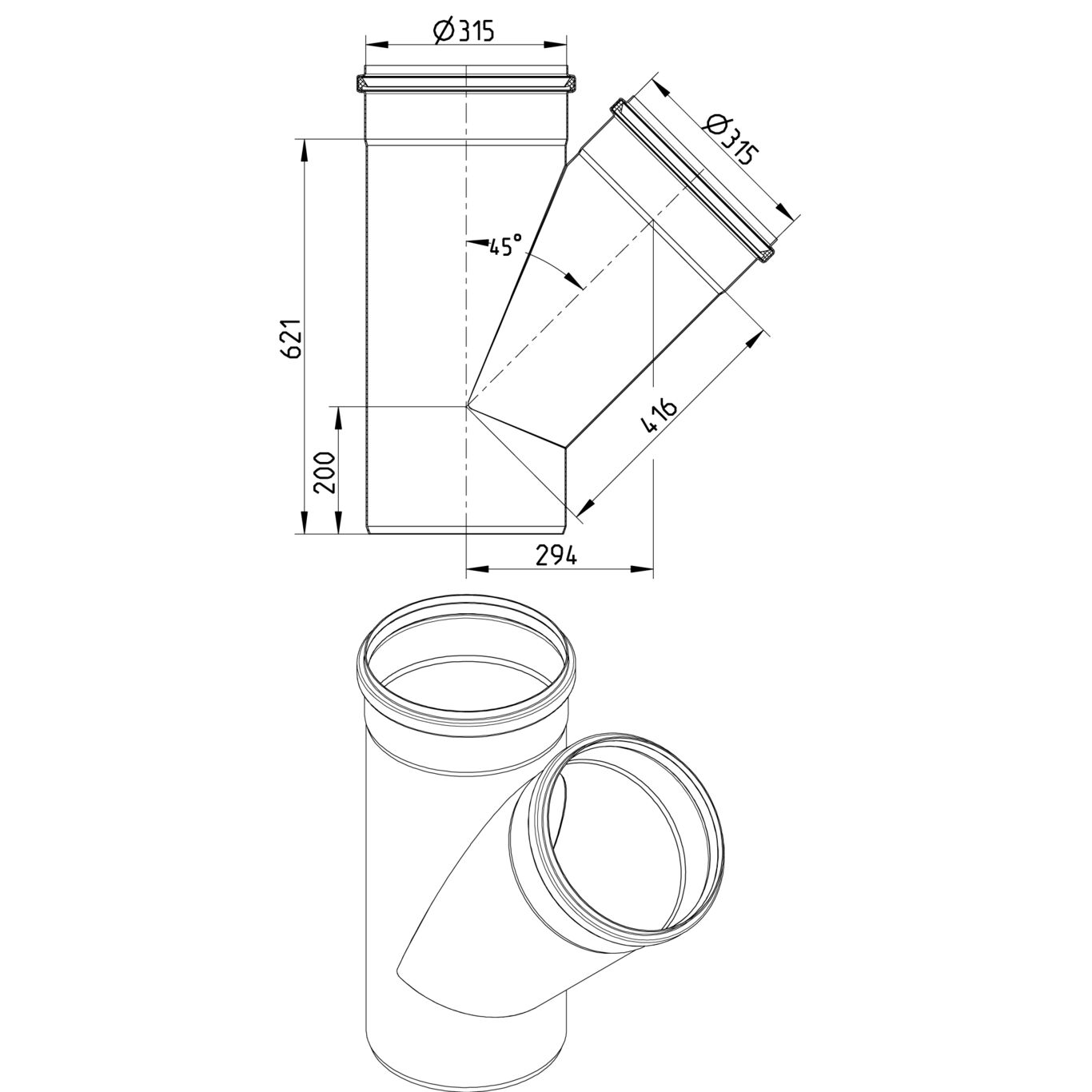

OBLIQUE BRANCH 45°
-Pipe diameter: Ø315mm. Branch diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 621 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 12 |
| Outlet Diameter (mm) | 315 |
| Weight (kg) | 16,53 |
| Weight (lbs) | 36,44 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products
