OBLIQUE BRANCH 45° - (838.250.315 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.250.315 S
EAN no.: 5705499413878
VVS no.: 160224614
RSK no.: 1554589
NRF no.: 2172633
LVI no.: 0251172

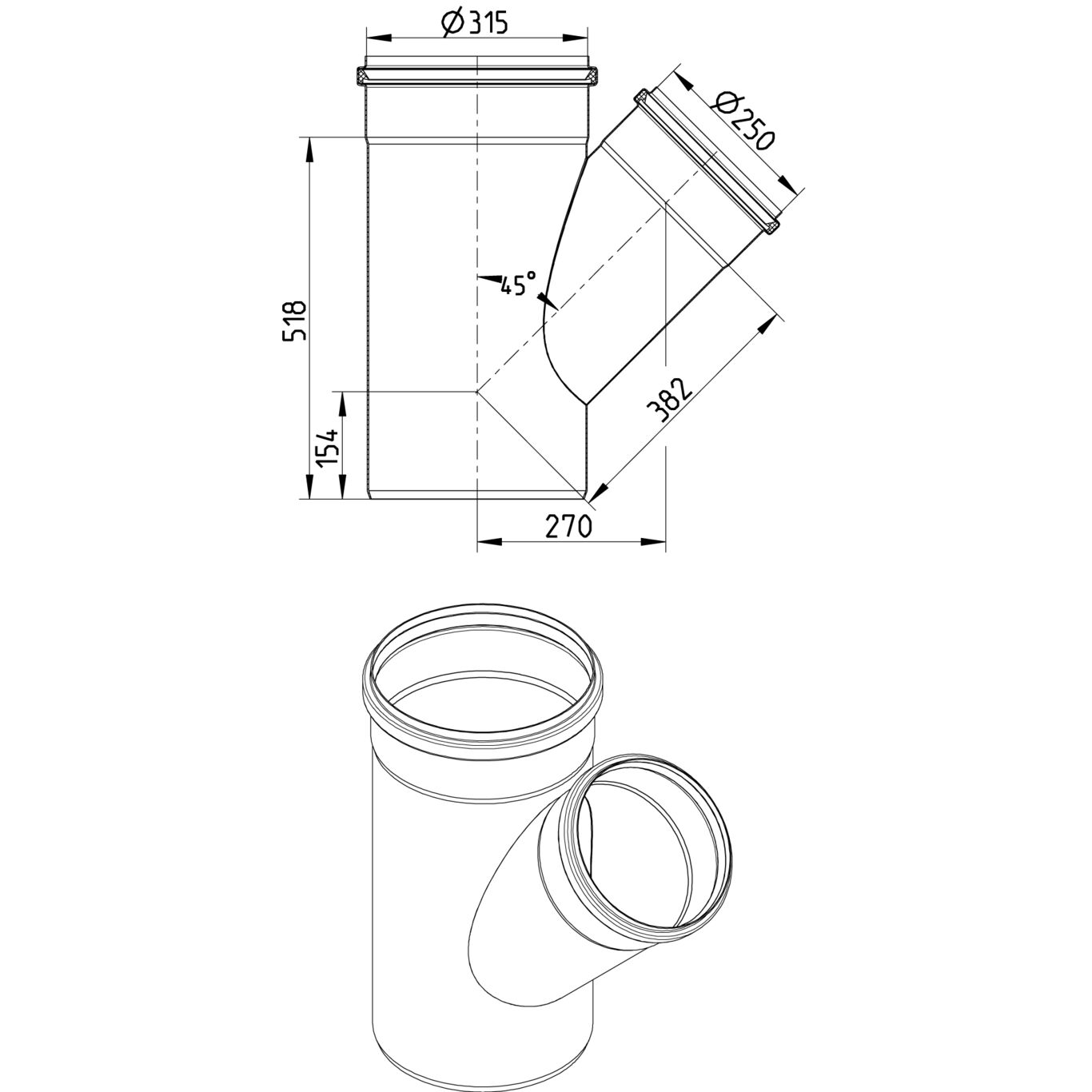

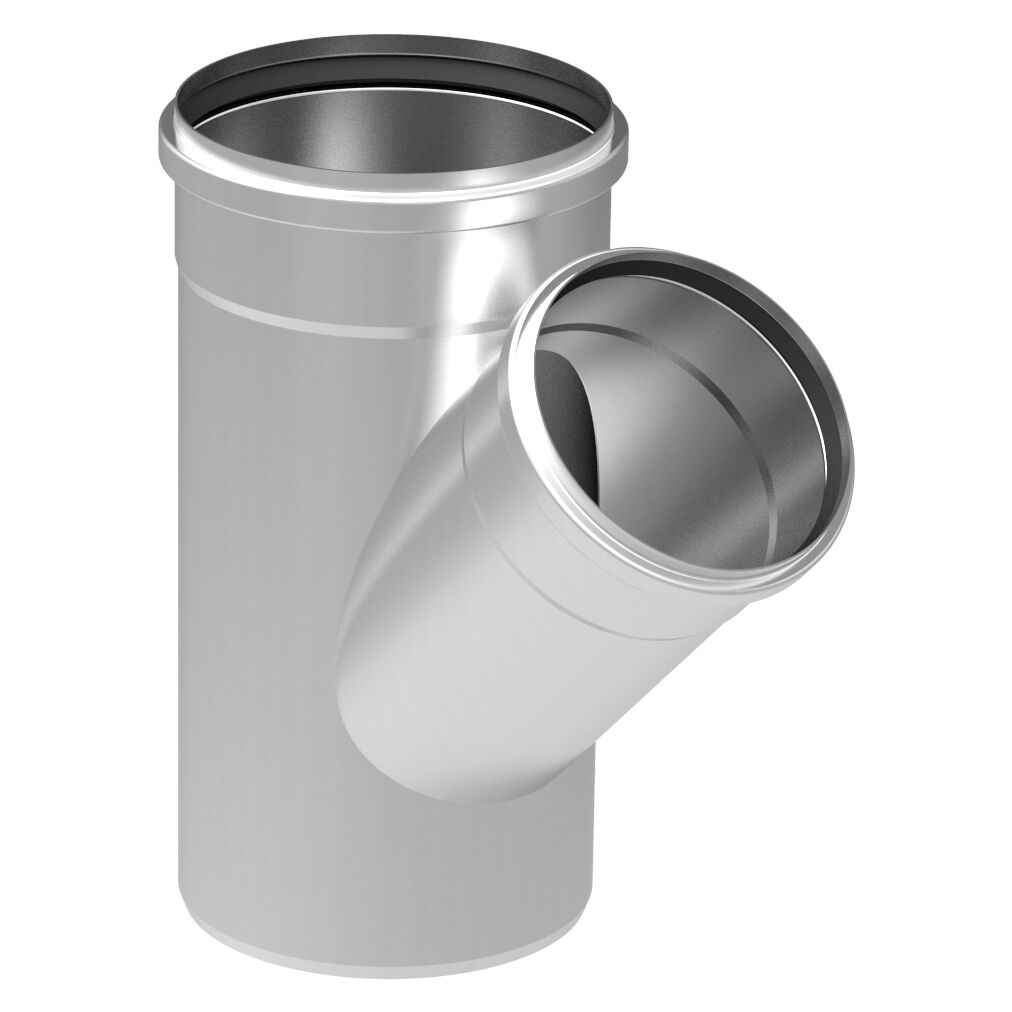

OBLIQUE BRANCH 45°
-Pipe diameter: Ø315mm. Branch diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 518 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 12 |
| Outlet Diameter (mm) | 315 |
| Weight (kg) | 12,48 |
| Weight (lbs) | 27,51 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19350
DE - LGA Certificate 57214035 a
