OBLIQUE BRANCH 45° - (838.200.200 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.200.200 S
EAN no.: 5705499411034
VVS no.: 160224500
RSK no.: 1551552
NRF no.: 2170842
LVI no.: 0251169
OBLIQUE BRANCH 45°

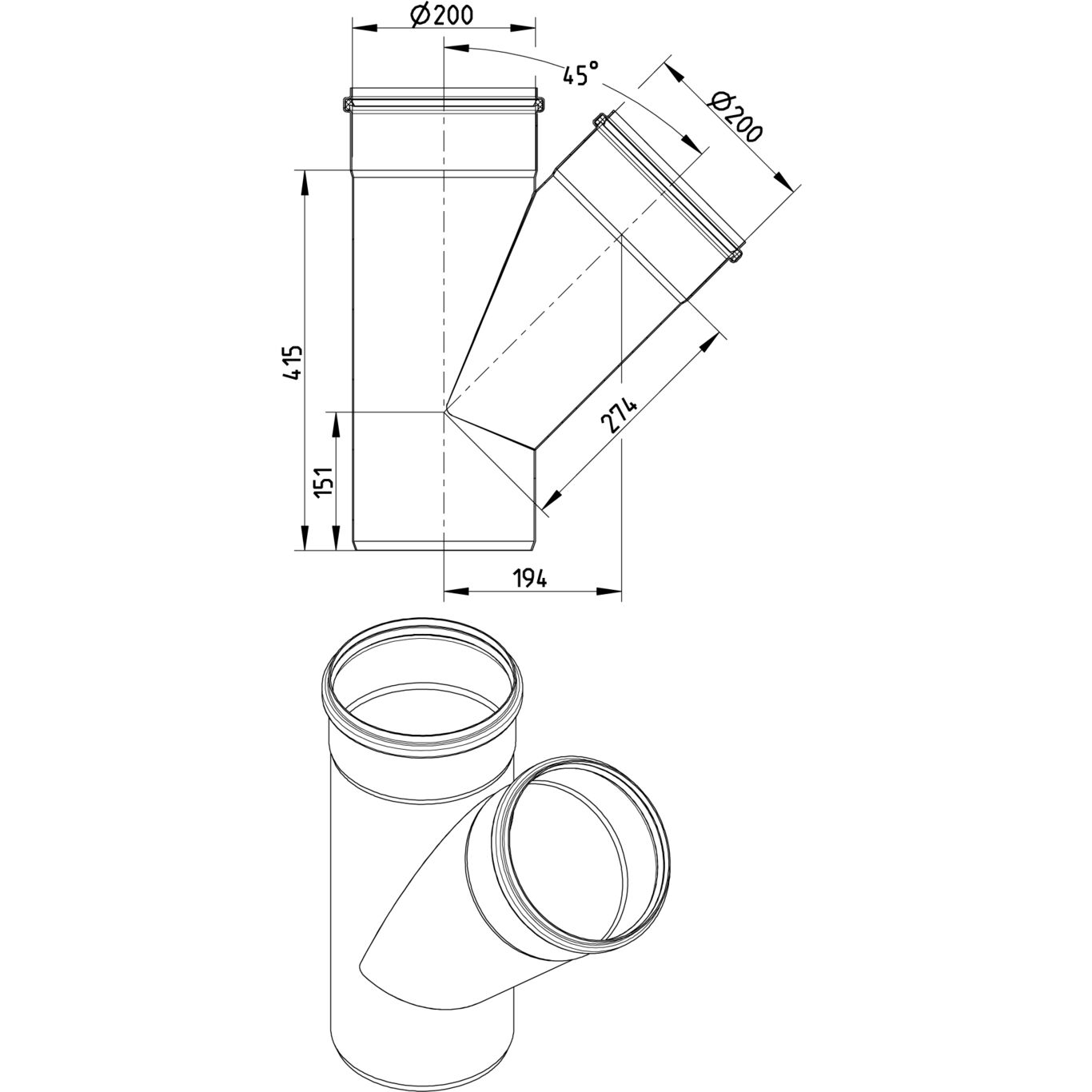

-Pipe diameter: Ø200mm. Branch diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 415 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 8 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 5,47 |
| Weight (lbs) | 12,06 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19350
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
