OBLIQUE BRANCH 45° - (838.125.125)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.125.125
EAN no.: 5705499409352
VVS no.: 160224125
RSK no.: 1551535
NRF no.: 2170118
LVI no.: 0246022

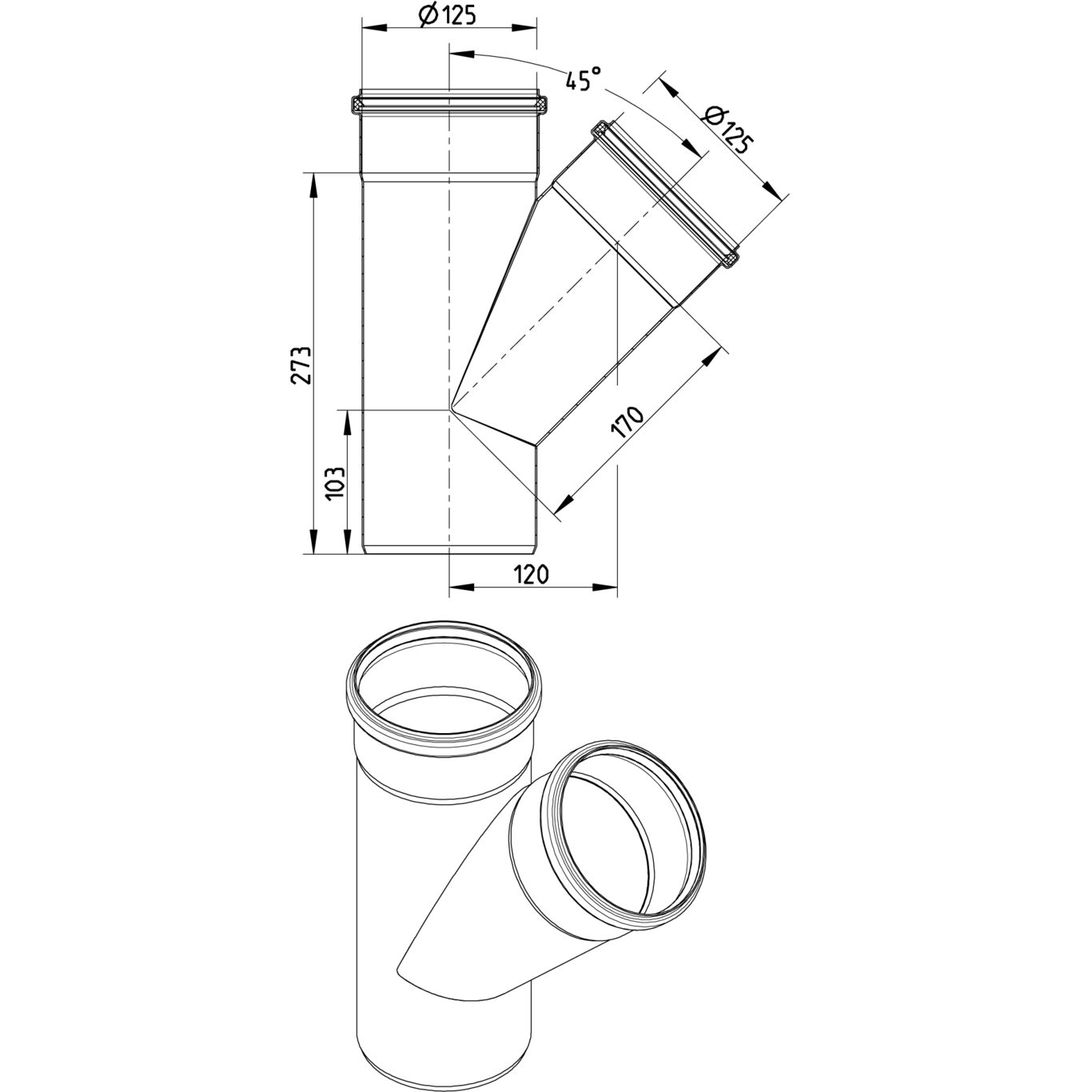

OBLIQUE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø125mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 273 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,49 |
| Weight (lbs) | 3,28 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19350
