OBLIQUE BRANCH 45° - (838.110.160 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.110.160 S
EAN no.: 5705499402483
VVS no.: 160224457
RSK no.: 1550319
NRF no.: 2170138
LVI no.: 0251164

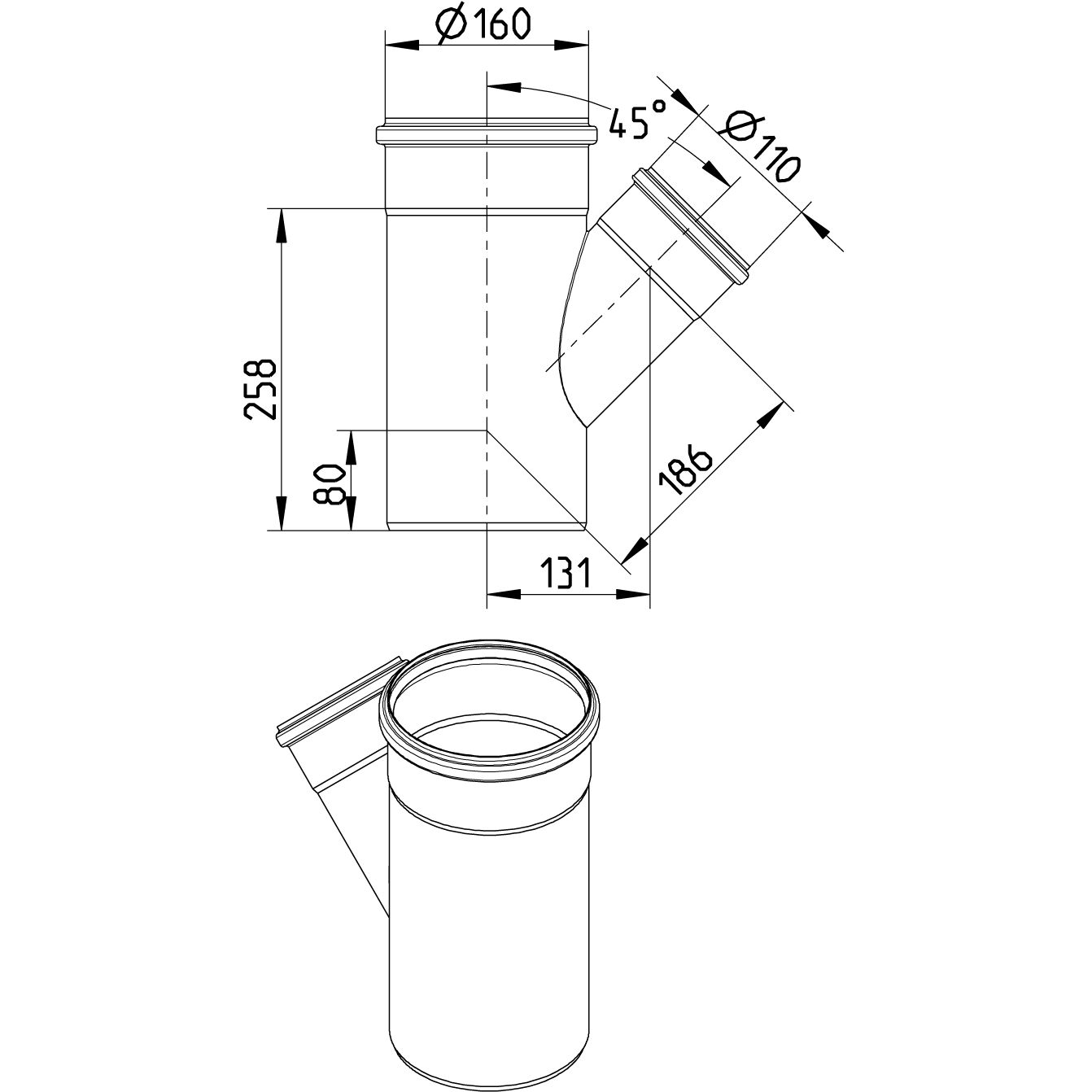

OBLIQUE BRANCH 45°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 258 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 2,02 |
| Weight (lbs) | 4,65 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
