OBLIQUE BRANCH 45° - (838.110.110 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.110.110 S
EAN no.: 5705499402469
VVS no.: 160224410
RSK no.: 1550312
NRF no.: 2170799
LVI no.: 0251160

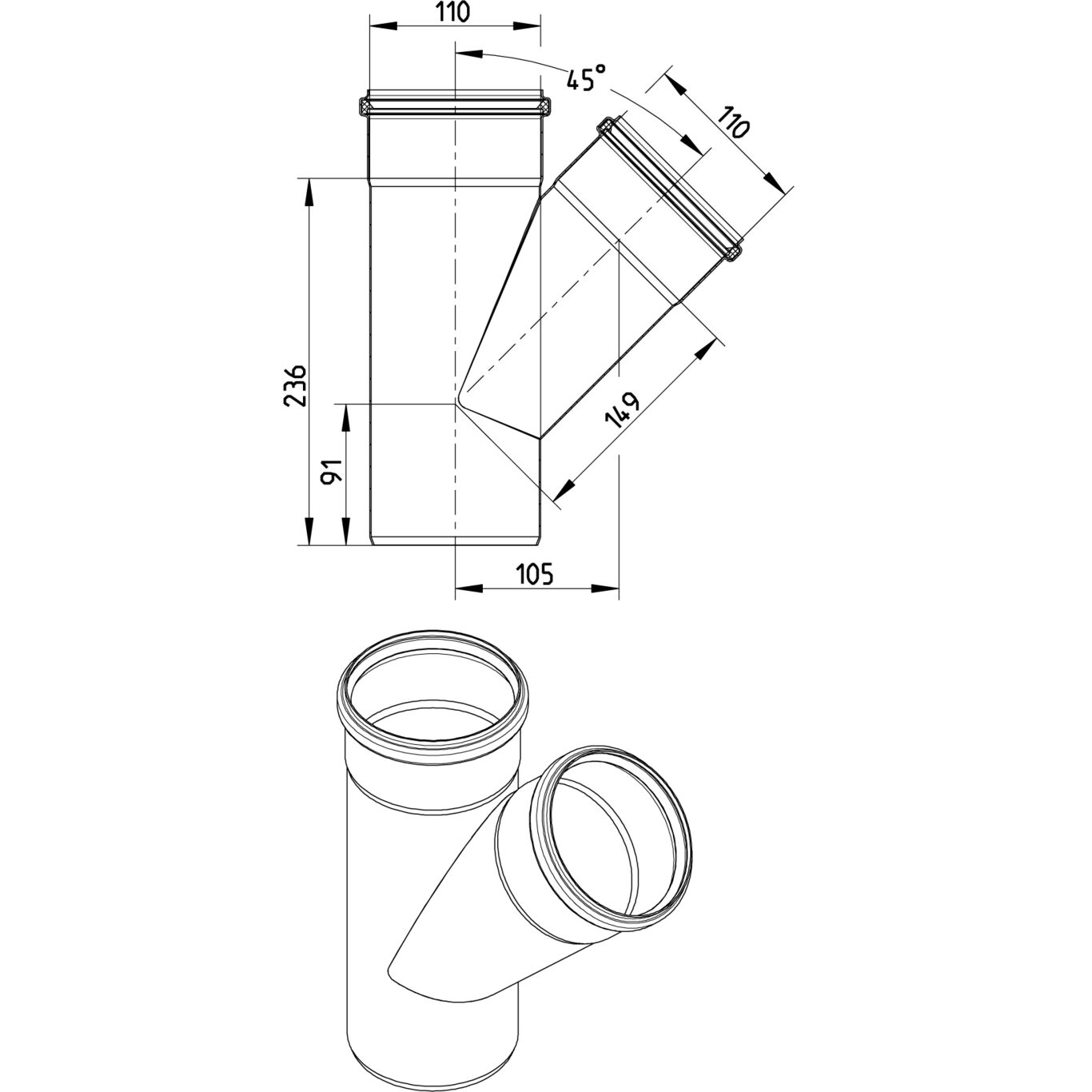

OBLIQUE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 236 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,16 |
| Weight (lbs) | 2,56 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products
