OBLIQUE BRANCH 45° - (838.082.082 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.082.082 S
EAN no.: 5705499412031
VVS no.: 160224382
NRF no.: 2172632

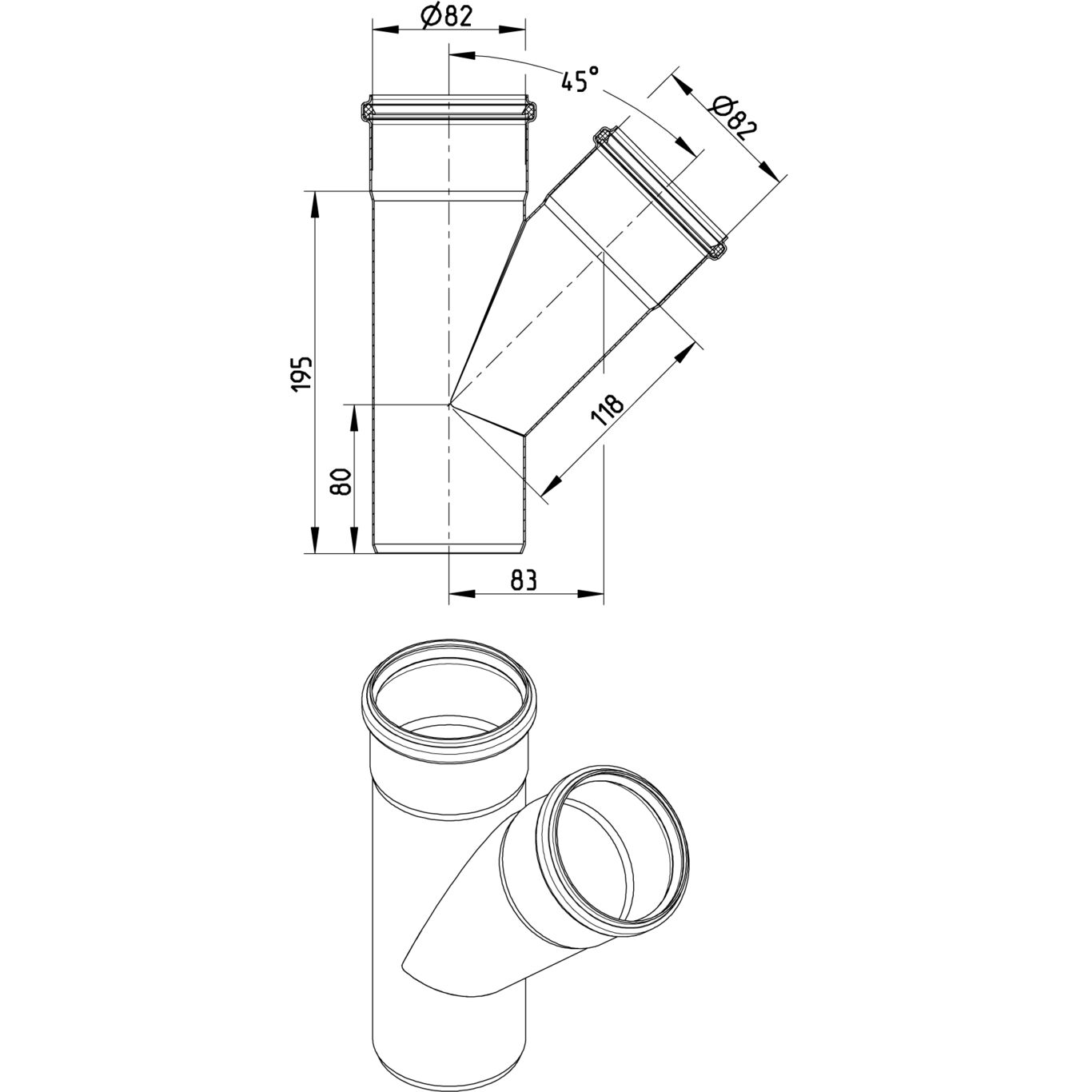

OBLIQUE BRANCH 45°
-Pipe diameter: Ø82mm. Branch diameter: Ø82mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| All Renovation 82 products | RS82 |
| Angle (°) | 45 |
| Length (mm) | 195 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3¼ |
| Outlet Diameter (mm) | 82 |
| Weight (kg) | 0,75 |
| Weight (lbs) | 1,65 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
