OBLIQUE BRANCH 45° - (838.075.082)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.075.082
EAN no.: 5705499412000
VVS no.: 160224081
NRF no.: 2172357

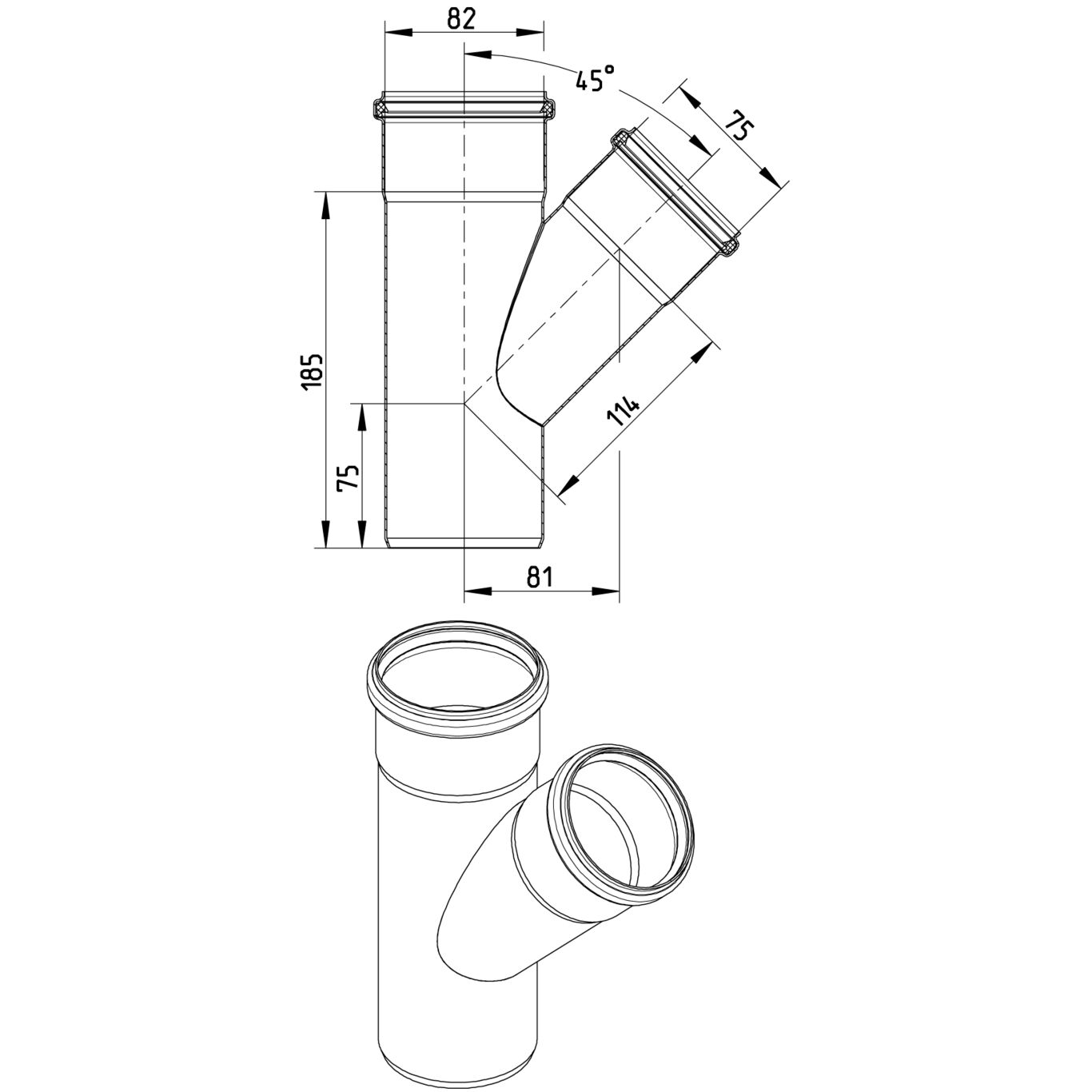

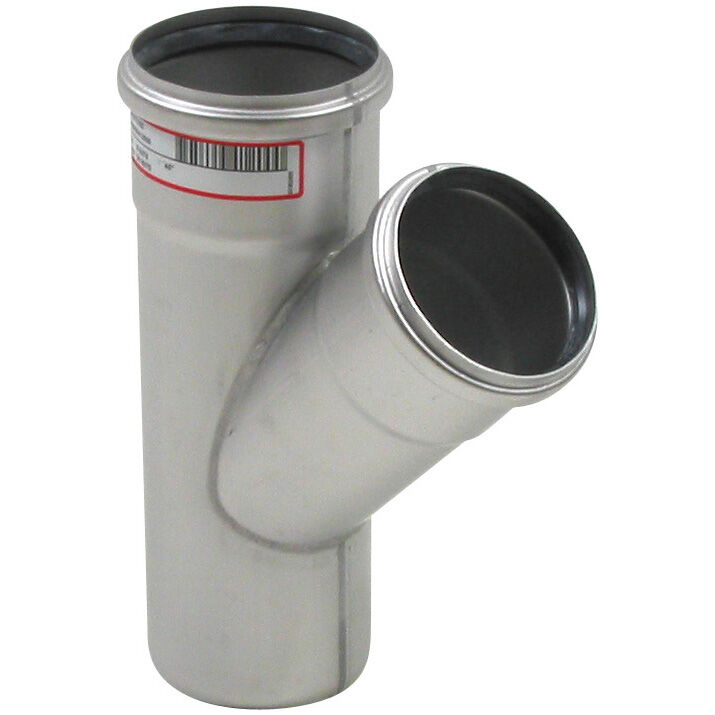

OBLIQUE BRANCH 45°
-Pipe diameter: Ø82mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| All Renovation 82 products | RS82 |
| Angle (°) | 45 |
| Length (mm) | 185 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3¼ |
| Outlet Diameter (mm) | 82 |
| Weight (kg) | 0,70 |
| Weight (lbs) | 1,54 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains
