OBLIQUE BRANCH 45° - (838.075.075 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.075.075 S
EAN no.: 5705499402421
VVS no.: 160224375
RSK no.: 1550310
NRF no.: 2170789
LVI no.: 0251156

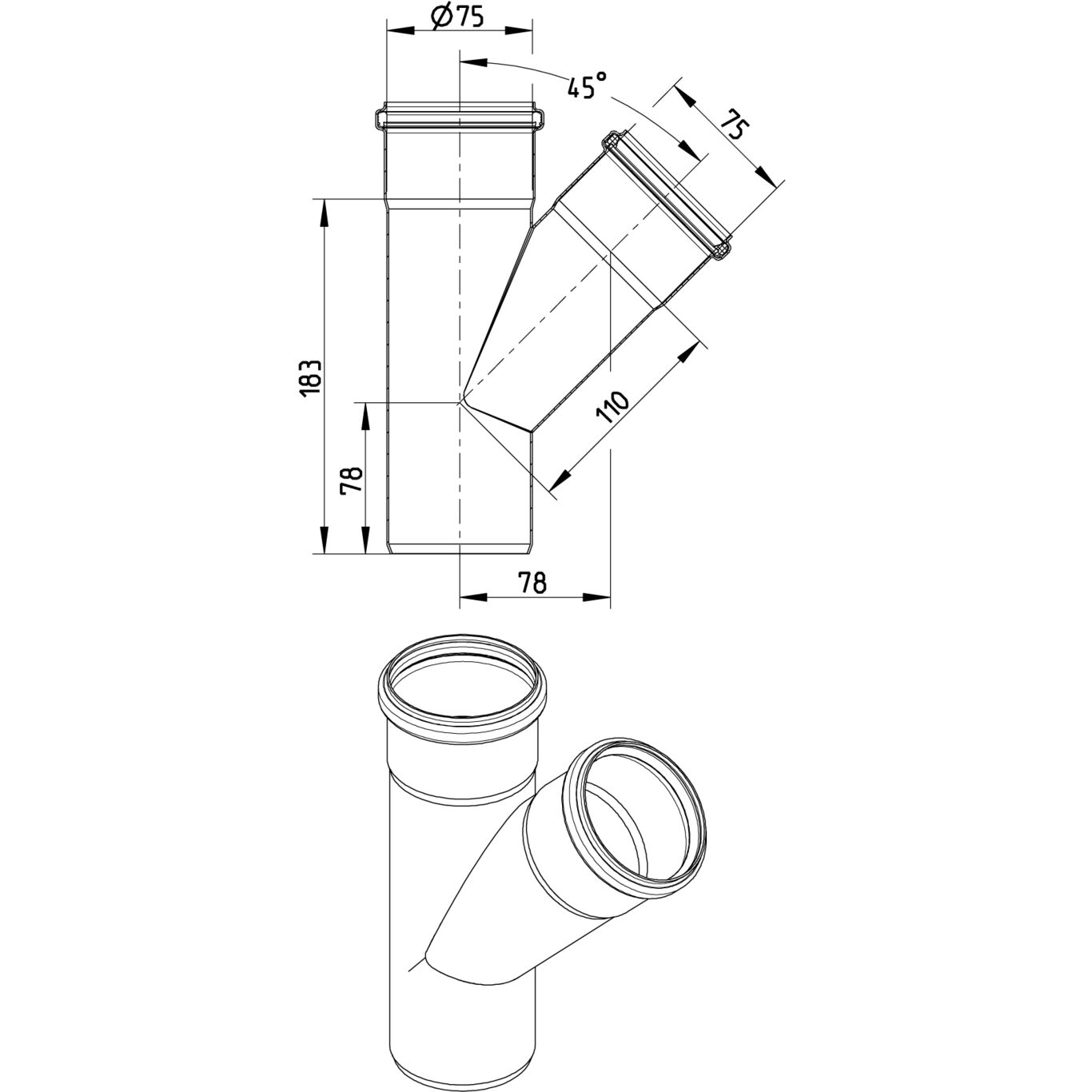

OBLIQUE BRANCH 45°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 183 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,64 |
| Weight (lbs) | 1,41 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA_02
