BEND 87.5° - (820.090.160)
×
![]()
Part Of the Series: Bend-87.5
Type no.: 820.090.160
EAN no.: 5705499401448
VVS no.: 160201160
RSK no.: 1550088
NRF no.: 2170071
LVI no.: 0240835

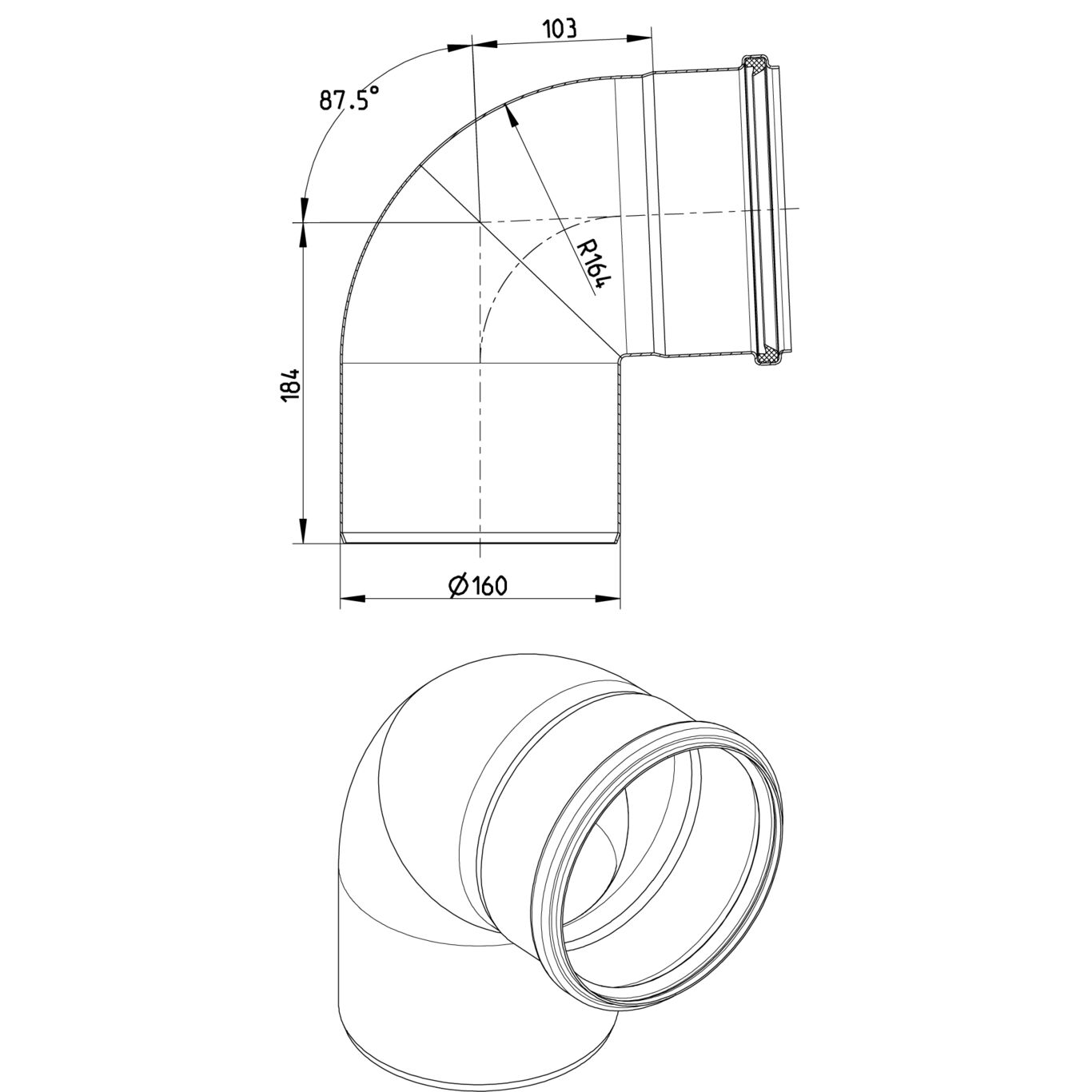

BEND 87.5°
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,72 |
| Weight (lbs) | 4,63 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe PL - Hygienic Certificate - All Products ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes
