BEND 87.5° - (820.090.125 S)
×
![]()
Part Of the Series: Bend-87.5
Type no.: 820.090.125 S
EAN no.: 5705499408737
VVS no.: 160201425
RSK no.: 1551167
NRF no.: 2170775
LVI no.: 0256081

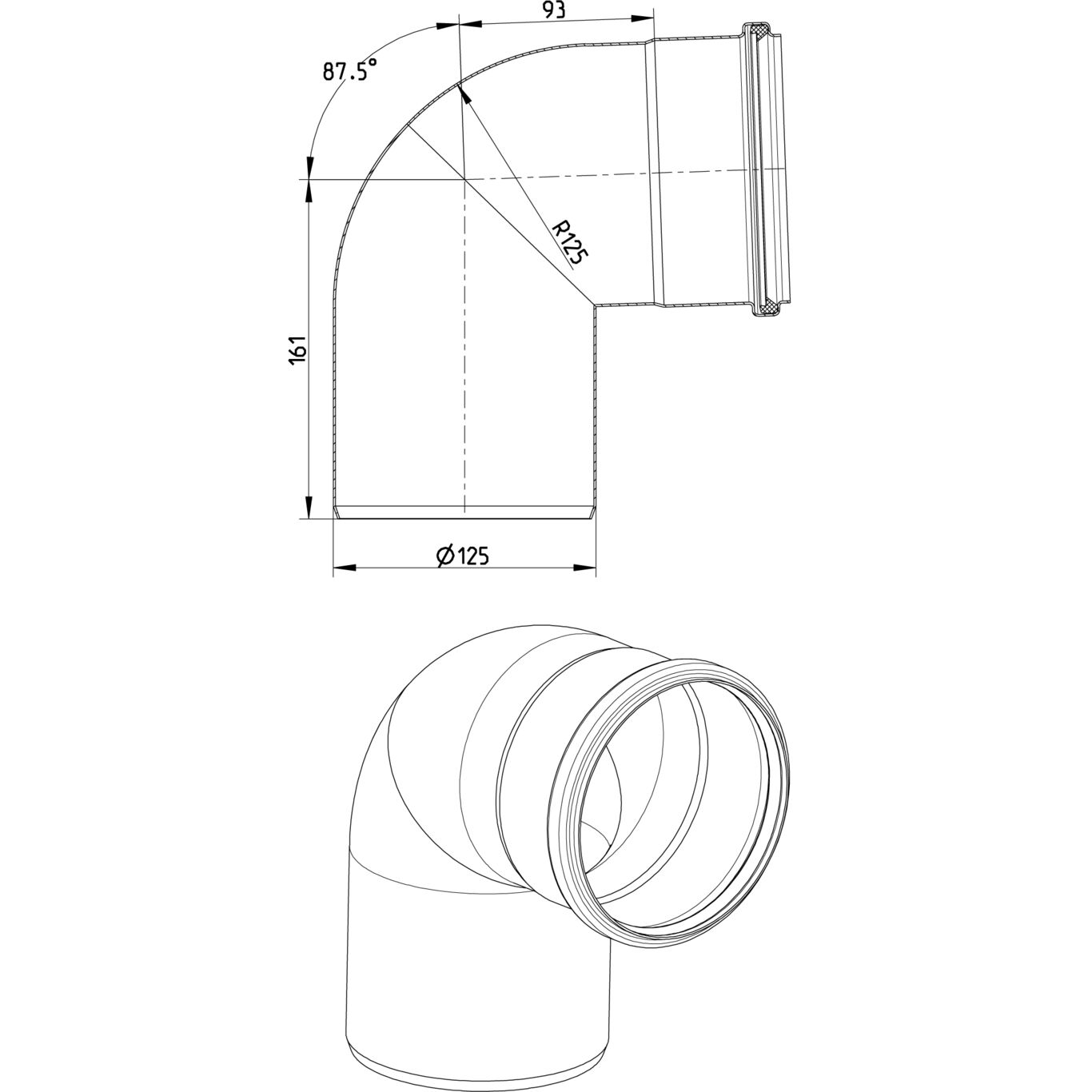

BEND 87.5°
-Diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 1,68 |
| Weight (lbs) | 3,7 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe ABS - 23-2329630-PDA Achilles Certificate - 46702-22 Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM
