BEND 87.5° - (820.090.082 S)
×
![]()
Part Of the Series: Bend-87.5
Type no.: 820.090.082 S
EAN no.: 5705499411881
VVS no.: 160201382
NRF no.: 2172532

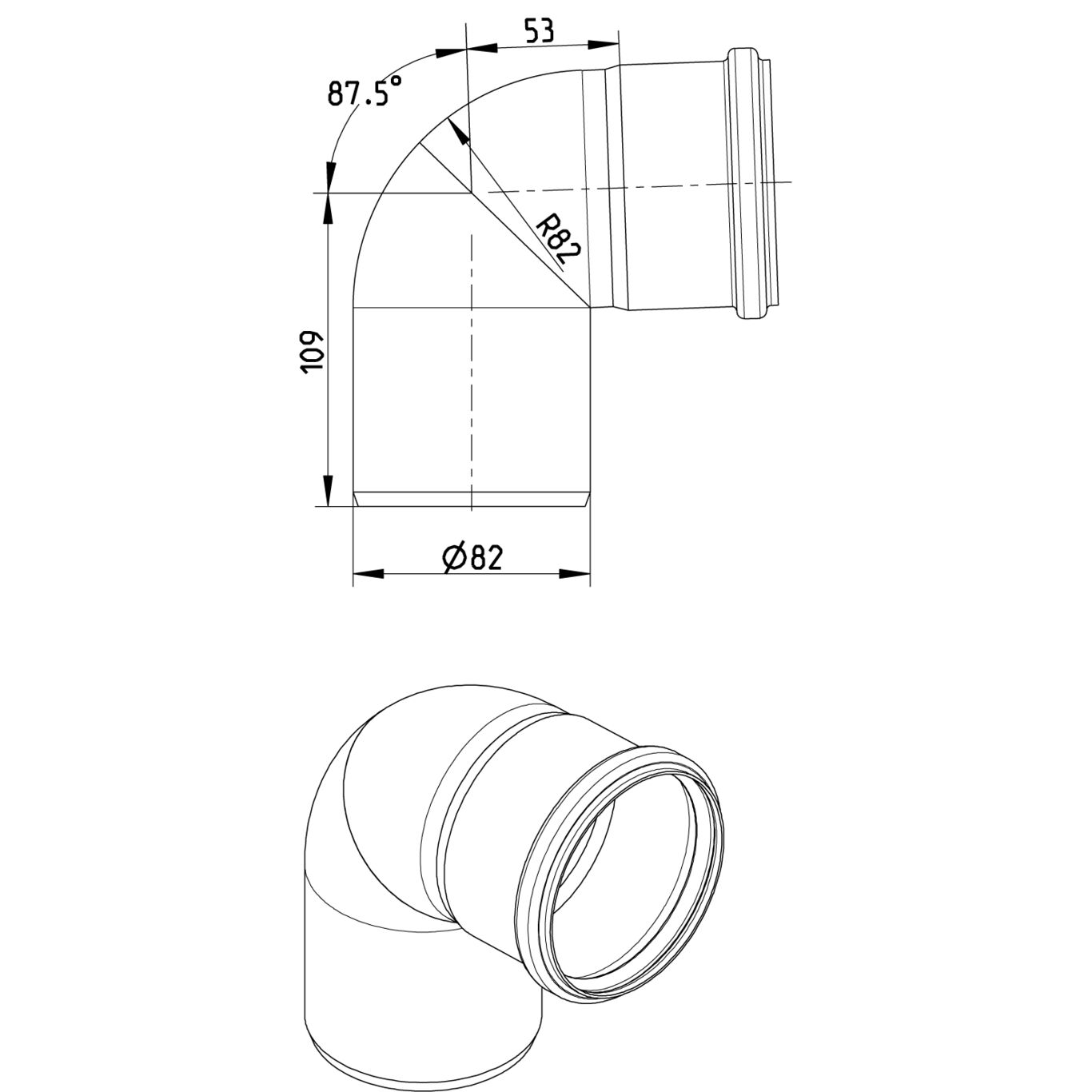

BEND 87.5°
-Diameter: Ø82mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| All Renovation 82 products | RS82 |
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3¼ |
| Outlet Diameter (mm) | 82 |
| Weight (kg) | 0,43 |
| Weight (lbs) | 0,95 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings
