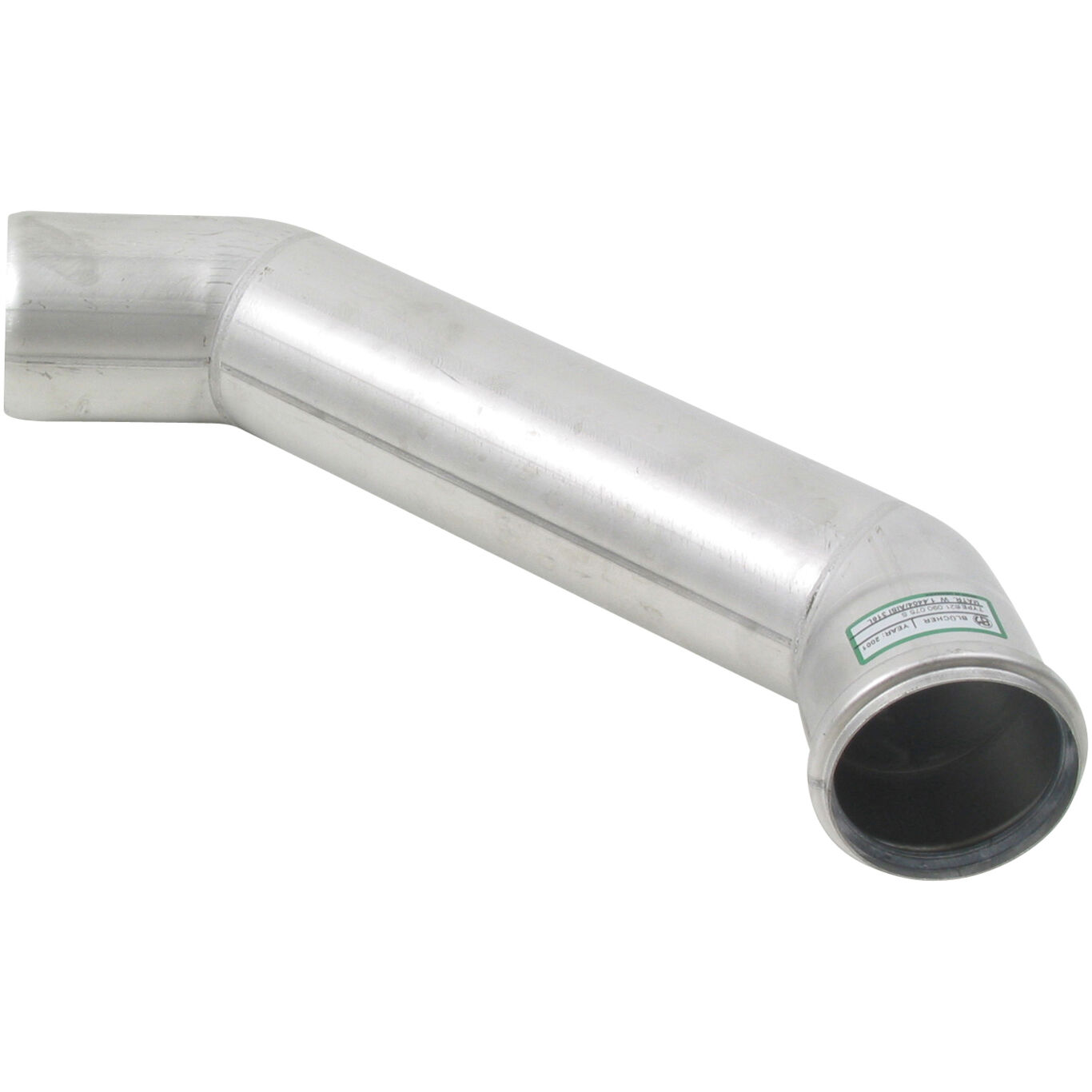

BEND, LONG 87.5°, 250 MM - (821.090.075)
×
![]()
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.075
EAN no.: 5705499408775
RSK no.: 1550081
NRF no.: 2172317
LVI no.: 0240853

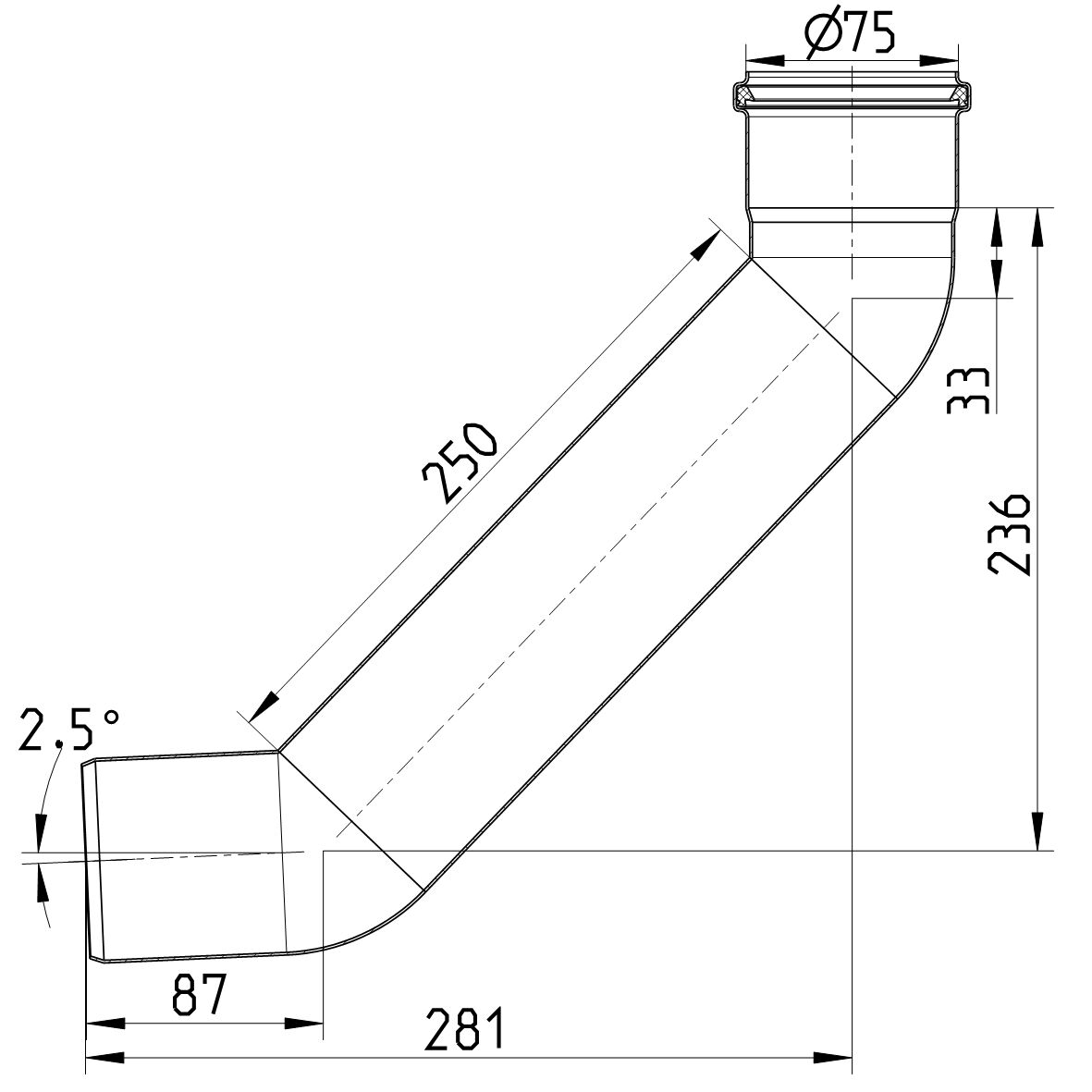

BEND, LONG 87.5°, 250 MM
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 234 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,90 |
| Weight (lbs) | 1,98 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 Lloyds Register LR22419510TA_02
