BEND, LARGE RADIUS 87.5° - (825.090.110 S)
×
![]()
Part Of the Series: Bend-87.5-large radius
Type no.: 825.090.110 S
EAN no.: 5705499408867
NRF no.: 2172553
LVI no.: 0256017

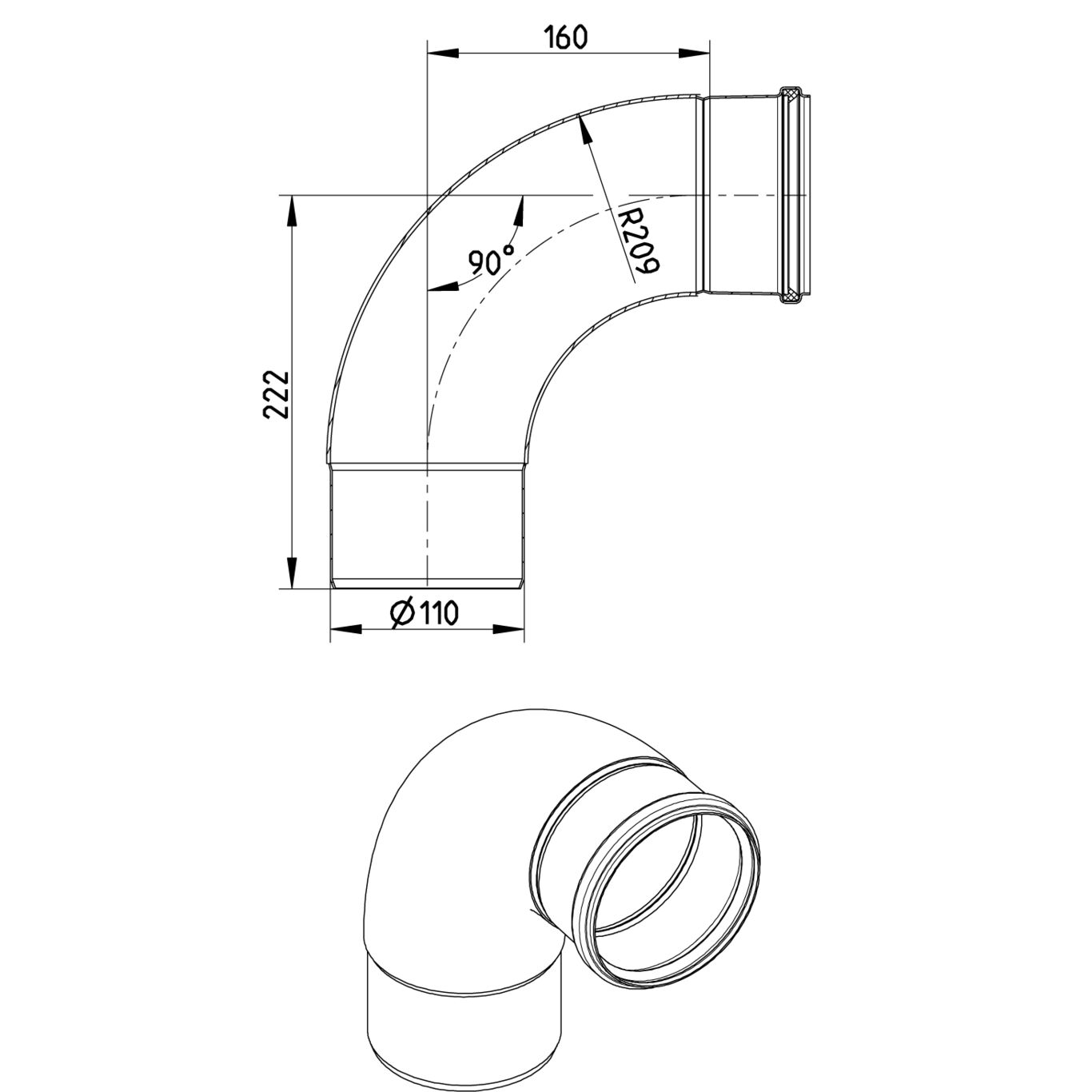

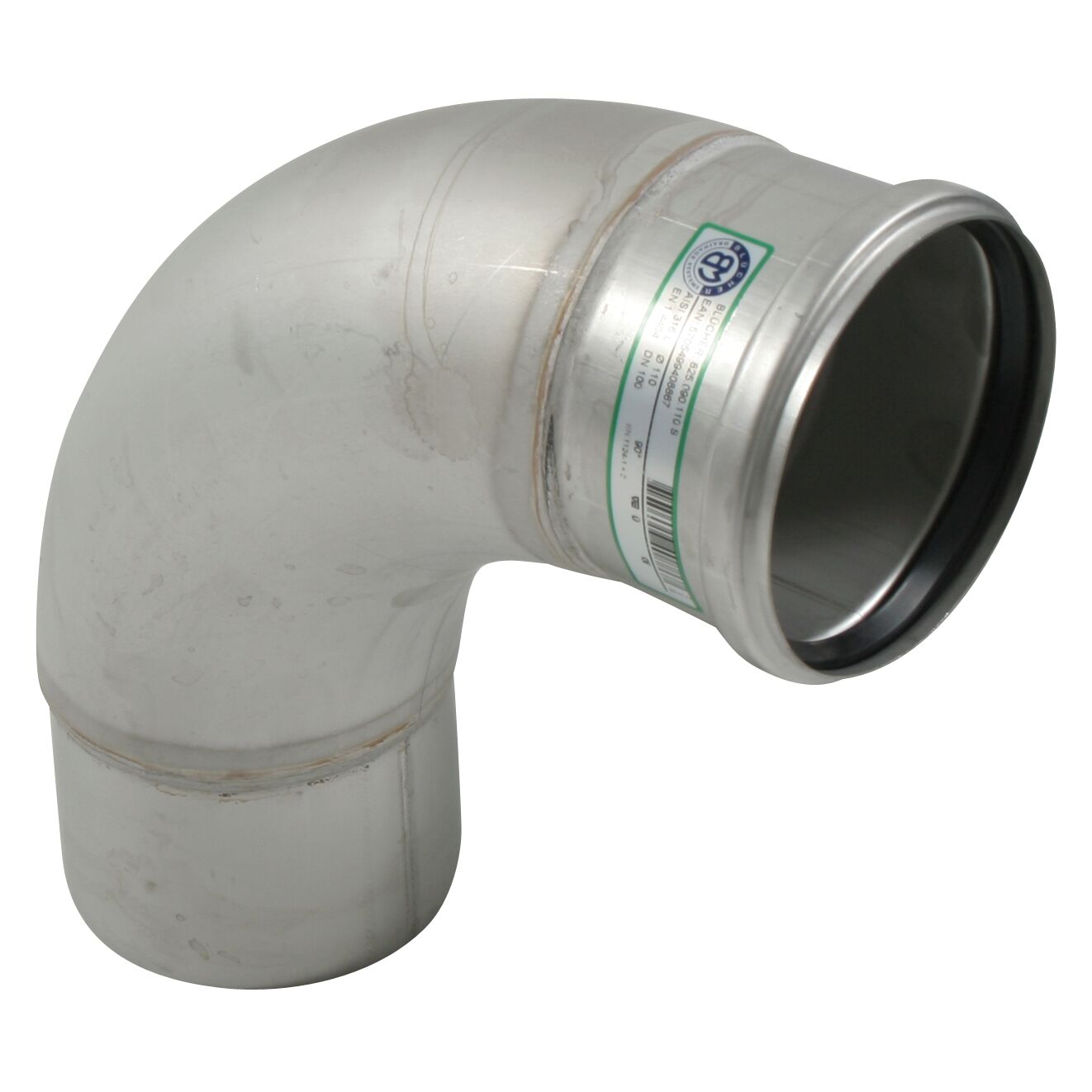

BEND, LARGE RADIUS 87.5°
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,41 |
| Weight (lbs) | 3,11 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
