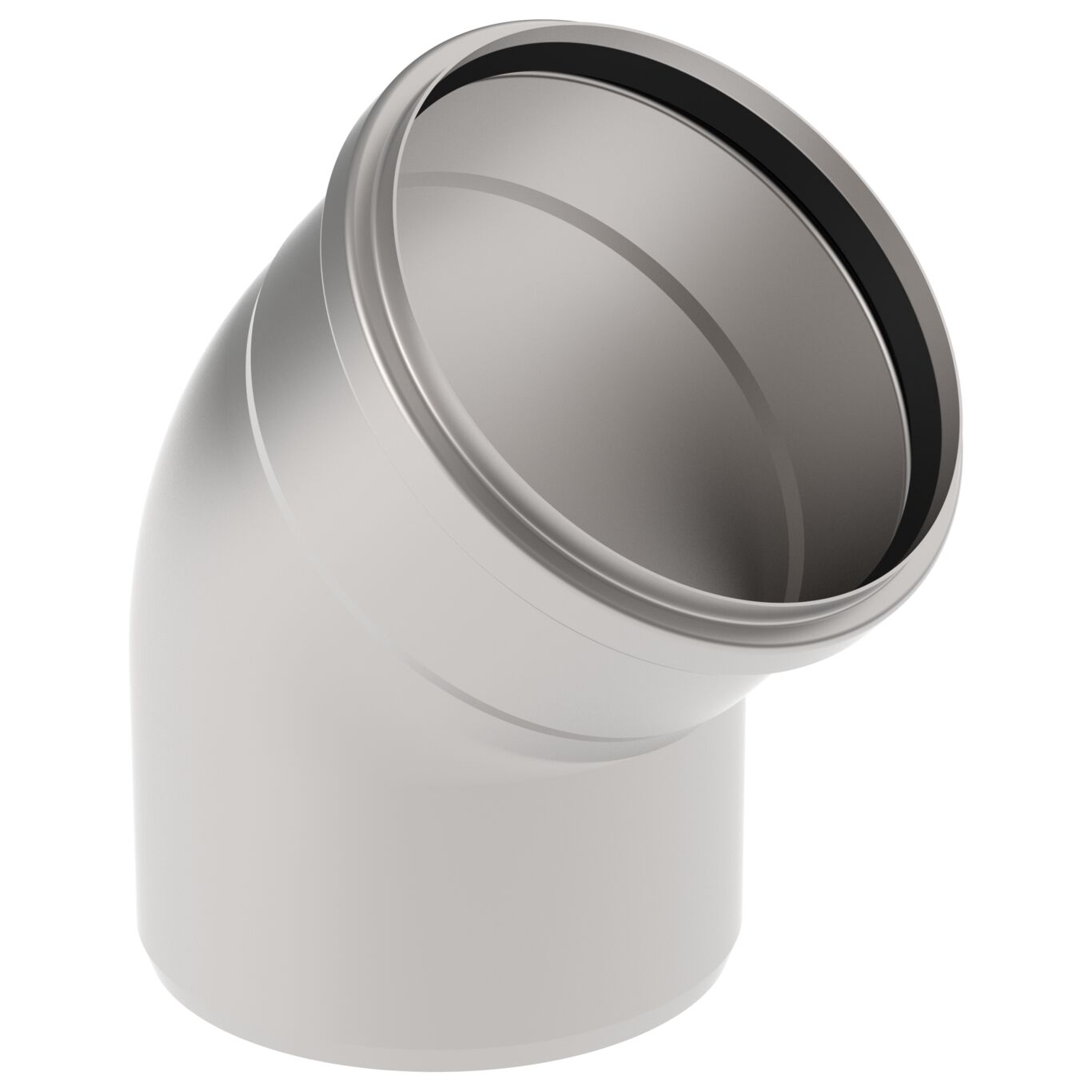

BEND 45° - (820.045.250 S)
×
![]()
Part Of the Series: Bend-45
Type no.: 820.045.250 S
EAN no.: 5705499414028
LVI no.: 0250687

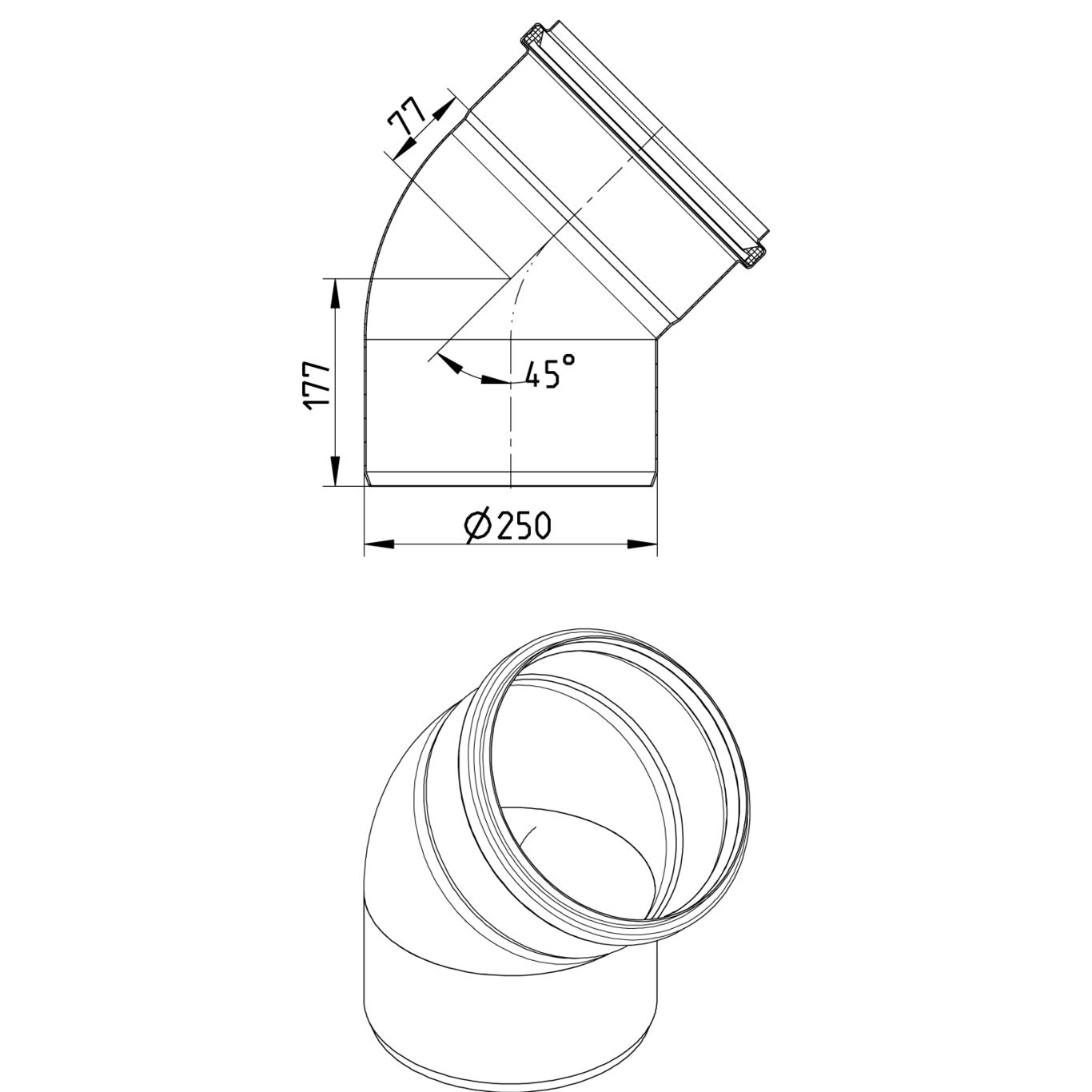

BEND 45°
-Diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 10 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 3,69 |
| Weight (lbs) | 8,14 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains
