BEND 45° - (820.045.125)
×
![]()
Part Of the Series: Bend-45
Type no.: 820.045.125
EAN no.: 5705499408676
VVS no.: 160205125
RSK no.: 1551524
NRF no.: 2170052
LVI no.: 0246044

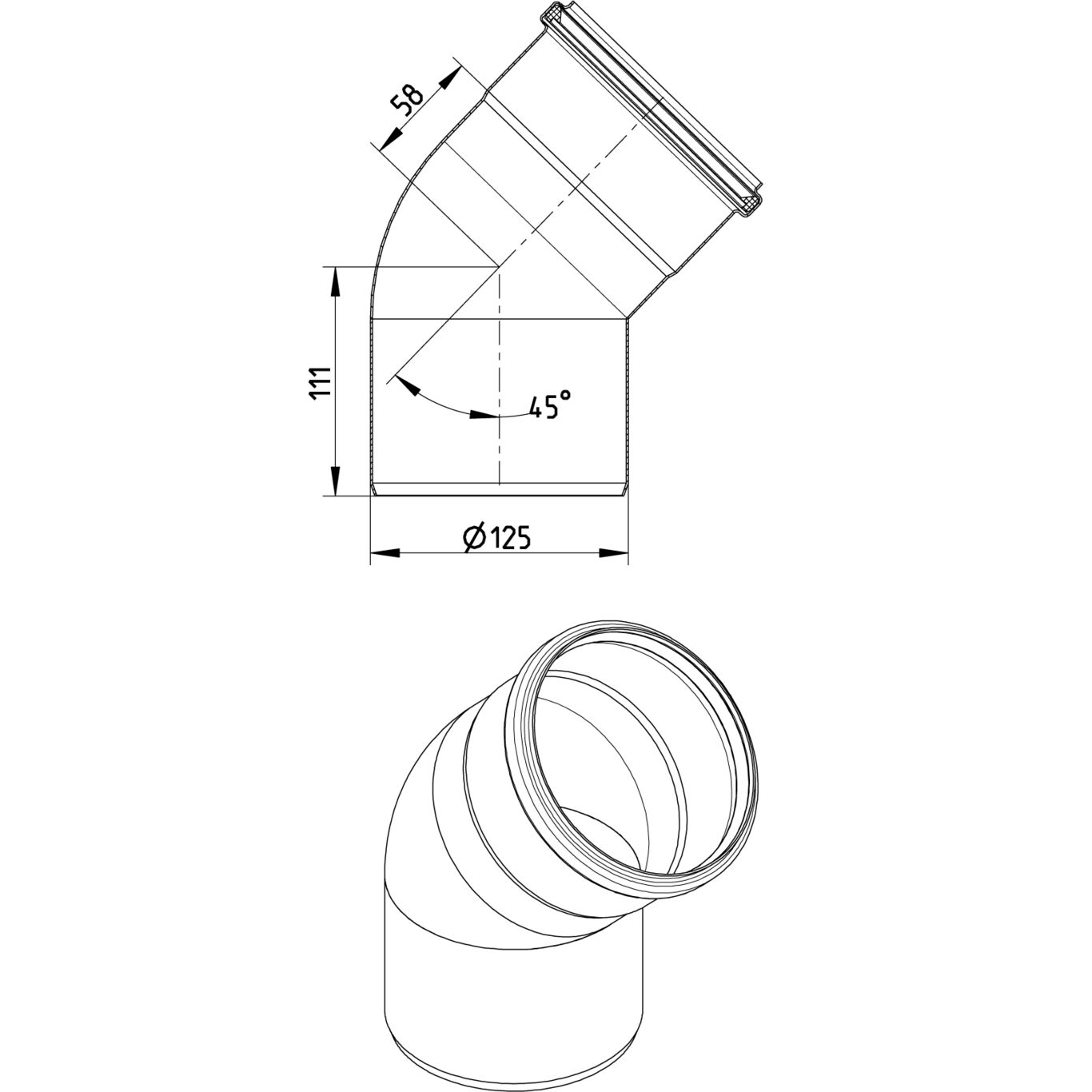

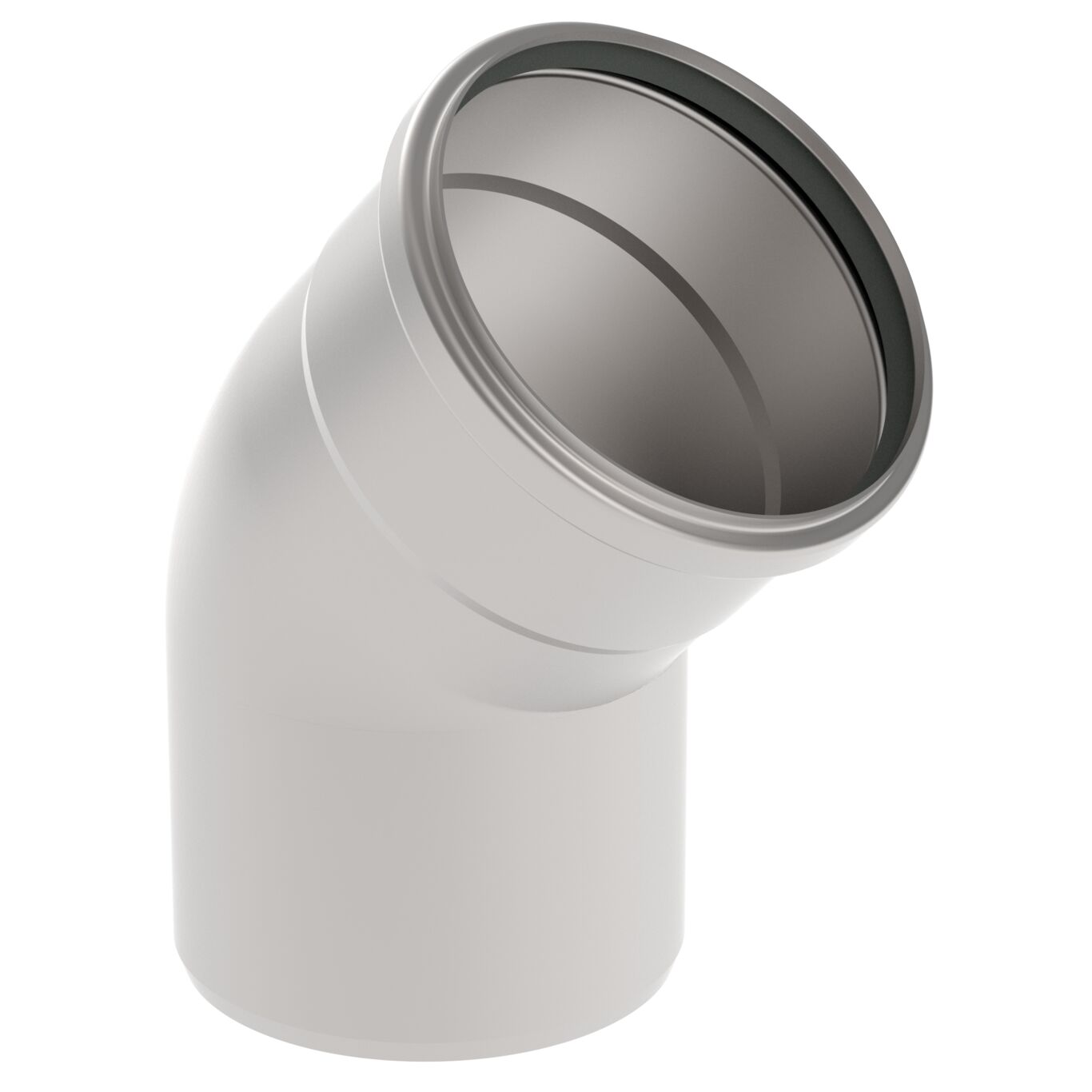

BEND 45°
-Diameter: Ø125mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 0,73 |
| Weight (lbs) | 1,61 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22
