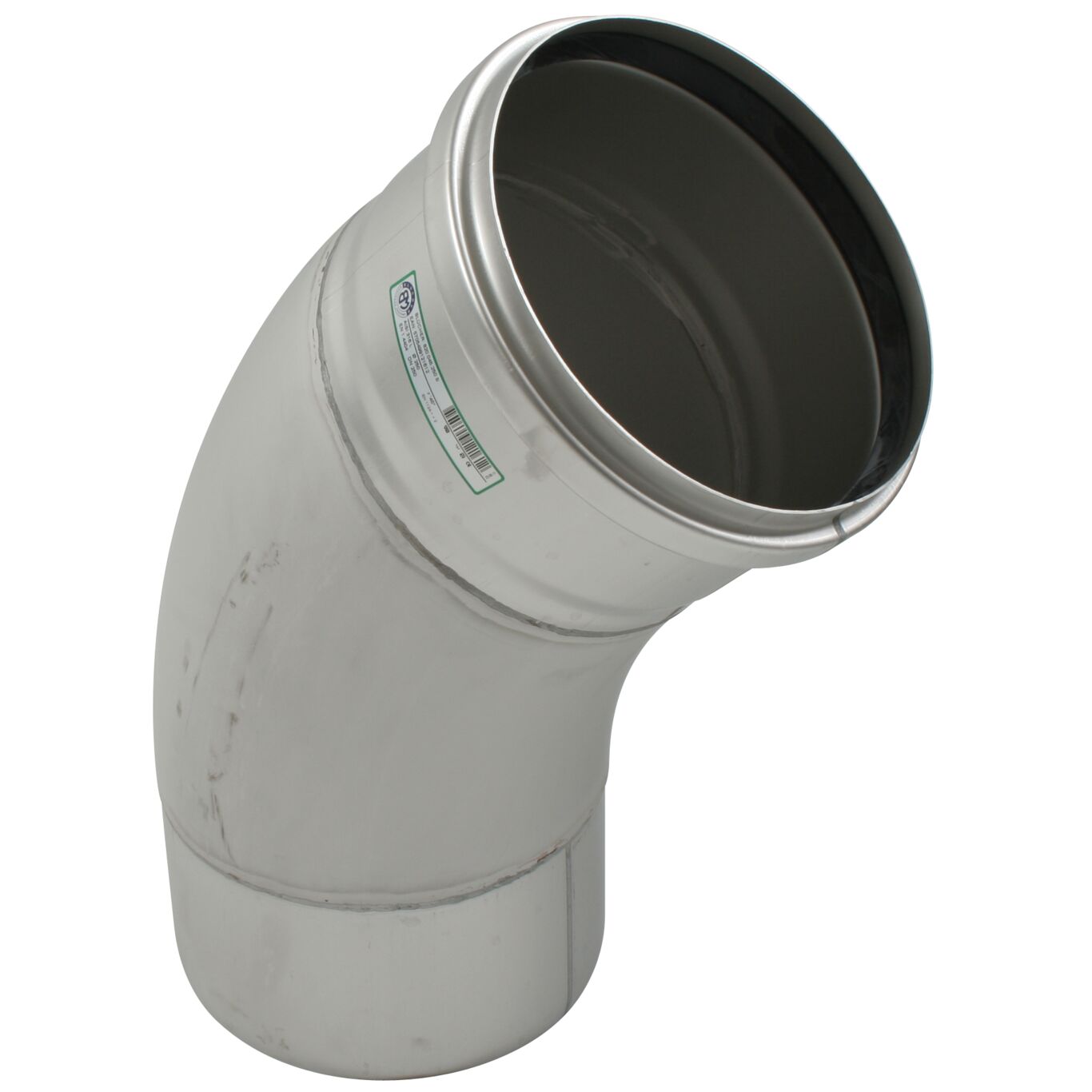

BEND, LARGE RADIUS 45° - (825.045.250 S)
×
![]()
Part Of the Series: Bend-45-large radius
Type no.: 825.045.250 S
EAN no.: 5705499121612
VVS no.: 160205550
RSK no.: 1552155
NRF no.: 2172548
LVI no.: 0256013

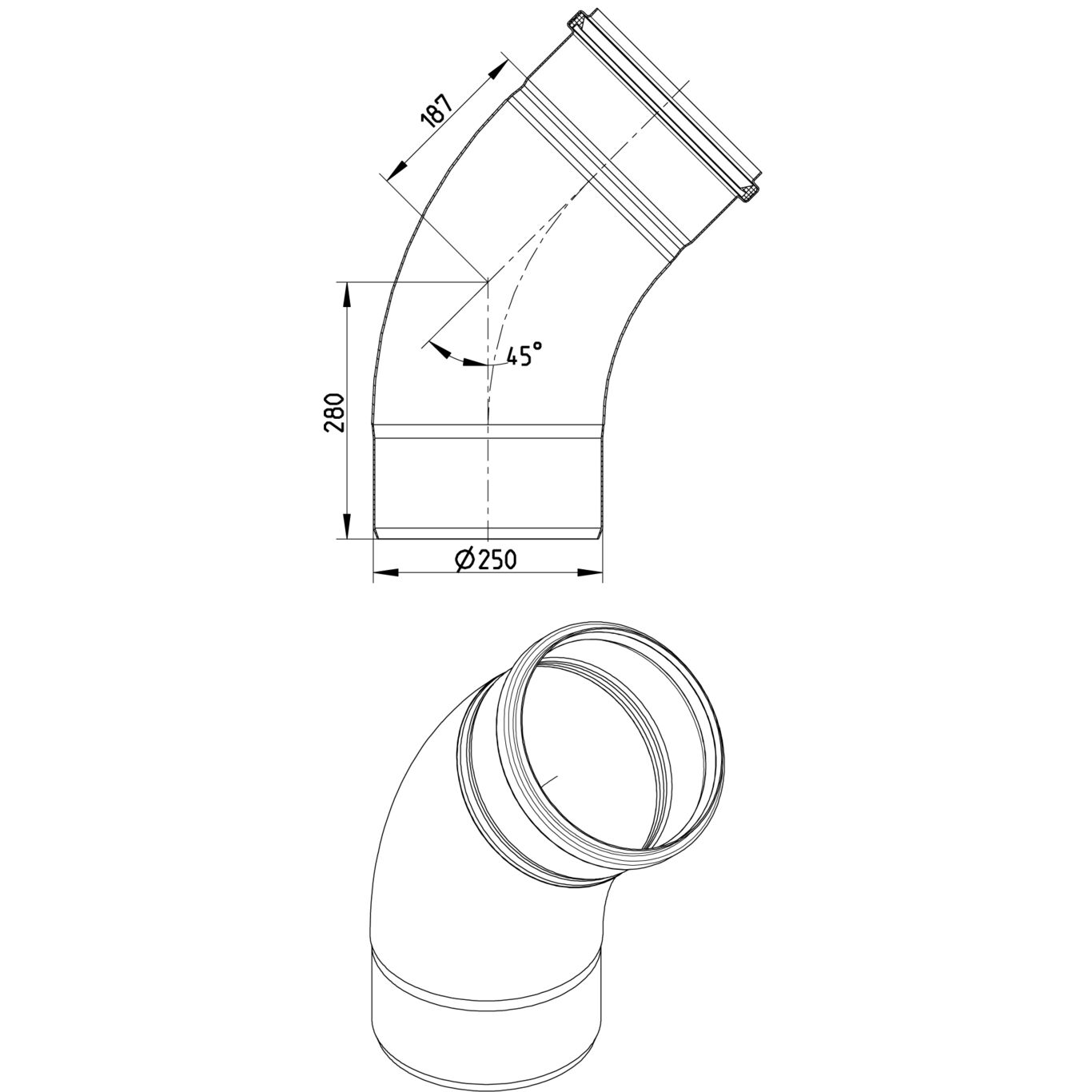

BEND, LARGE RADIUS 45°
-Diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 10 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 6,53 |
| Weight (lbs) | 14,4 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
