BEND, LARGE RADIUS 45° - (825.045.200 S)
×
![]()
Part Of the Series: Bend-45-large radius
Type no.: 825.045.200 S
EAN no.: 5705499410990
VVS no.: 160205500
RSK no.: 1551546
NRF no.: 2170778
LVI no.: 0256012

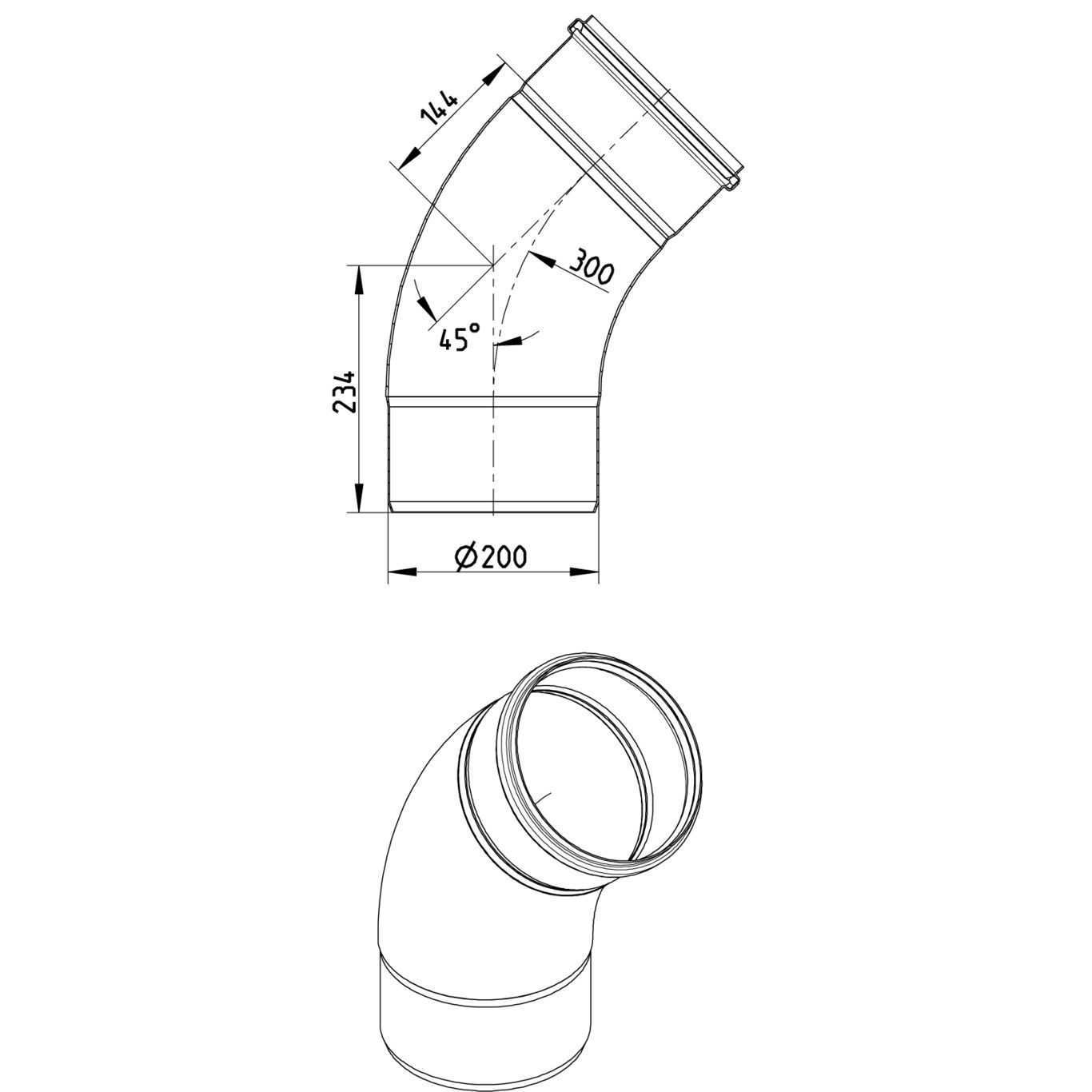

BEND, LARGE RADIUS 45°
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 8 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 4,18 |
| Weight (lbs) | 9,22 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
