BEND 30° - (820.030.200 S)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.200 S
EAN no.: 5705499410983
VVS no.: 160207500
RSK no.: 1551547
NRF no.: 2170777
LVI no.: 0250636

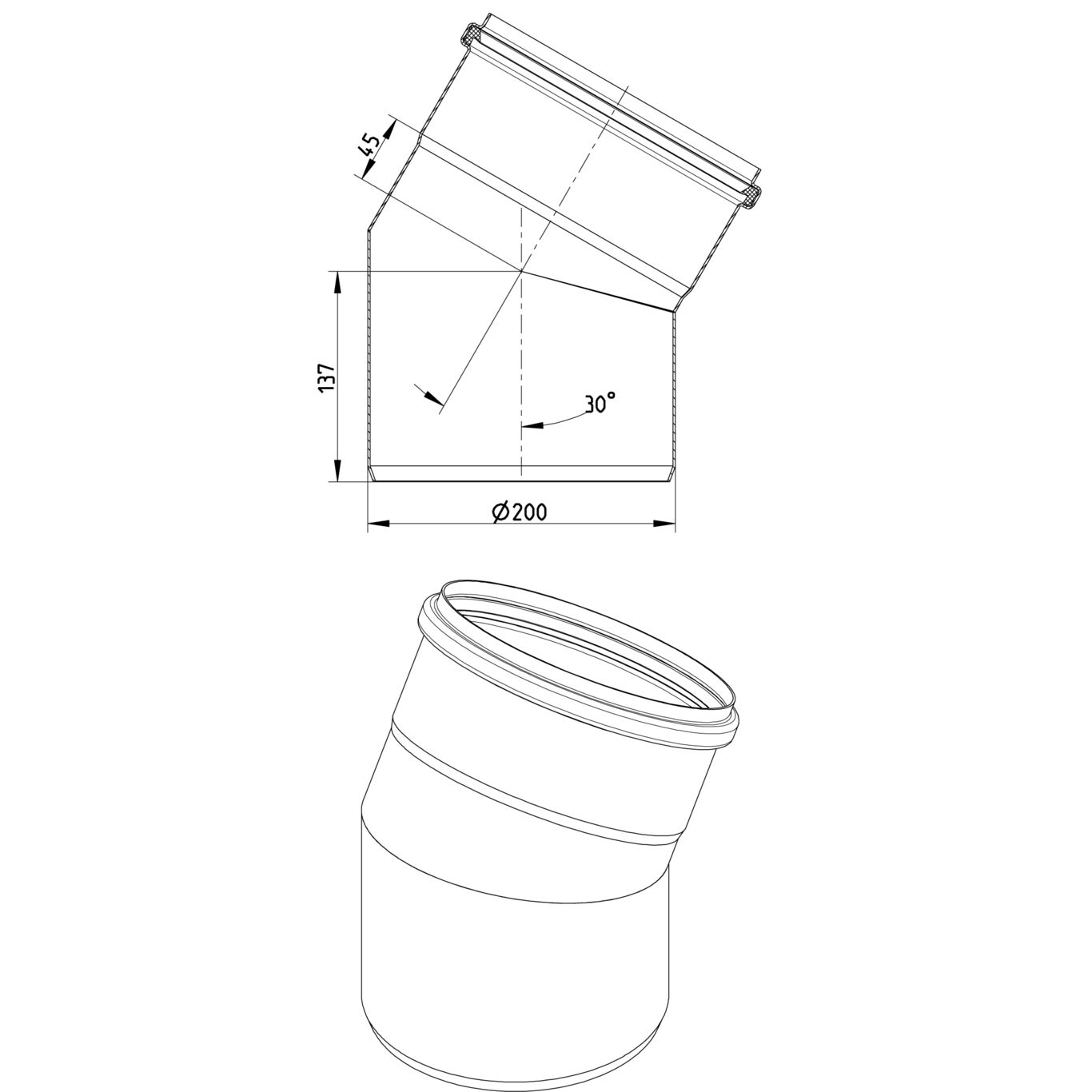

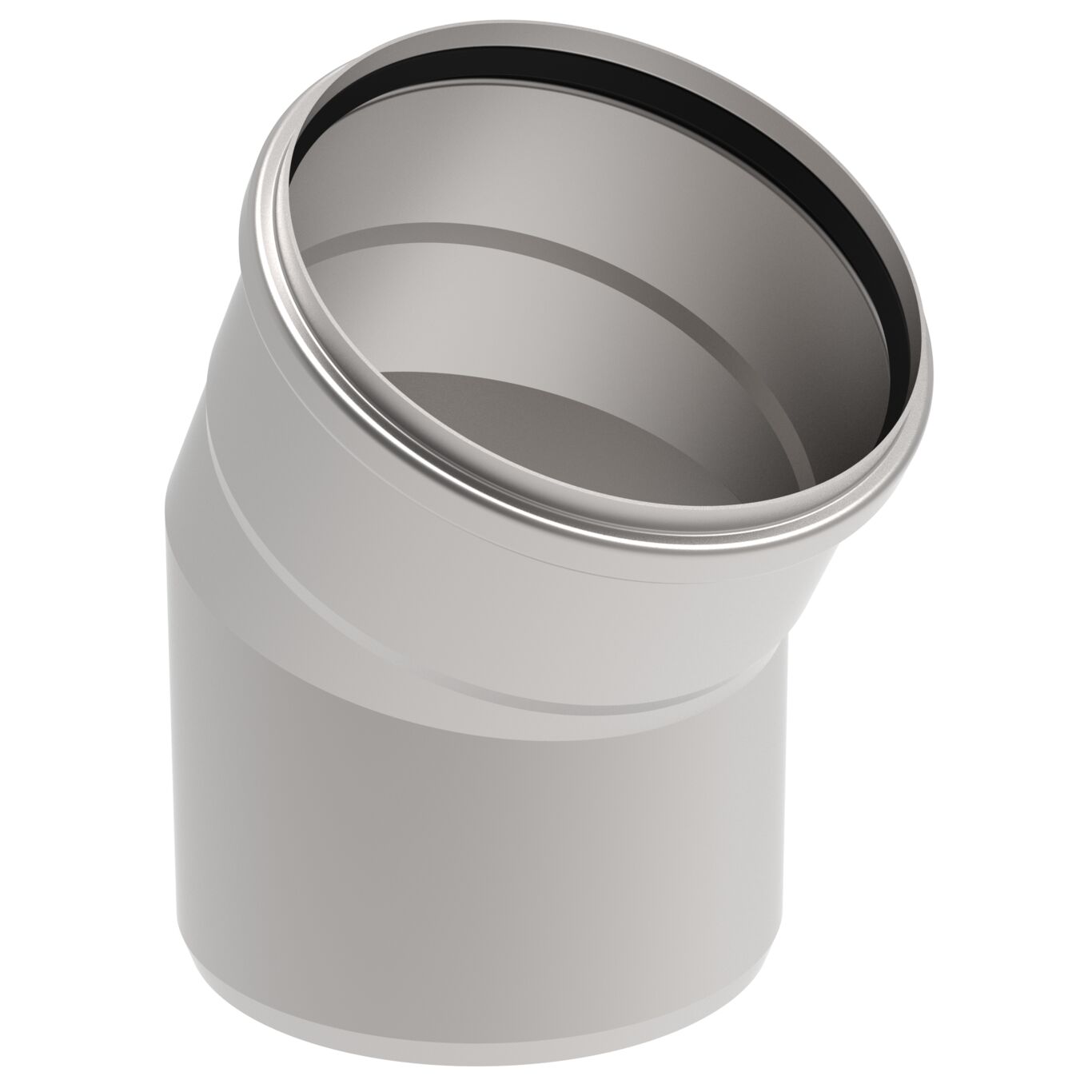

BEND 30°
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 8 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 2,20 |
| Weight (lbs) | 4,85 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes
