BEND 30° - (820.030.125)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.125
EAN no.: 5705499408652
VVS no.: 160207125
RSK no.: 1551525
NRF no.: 2170051
LVI no.: 0246043

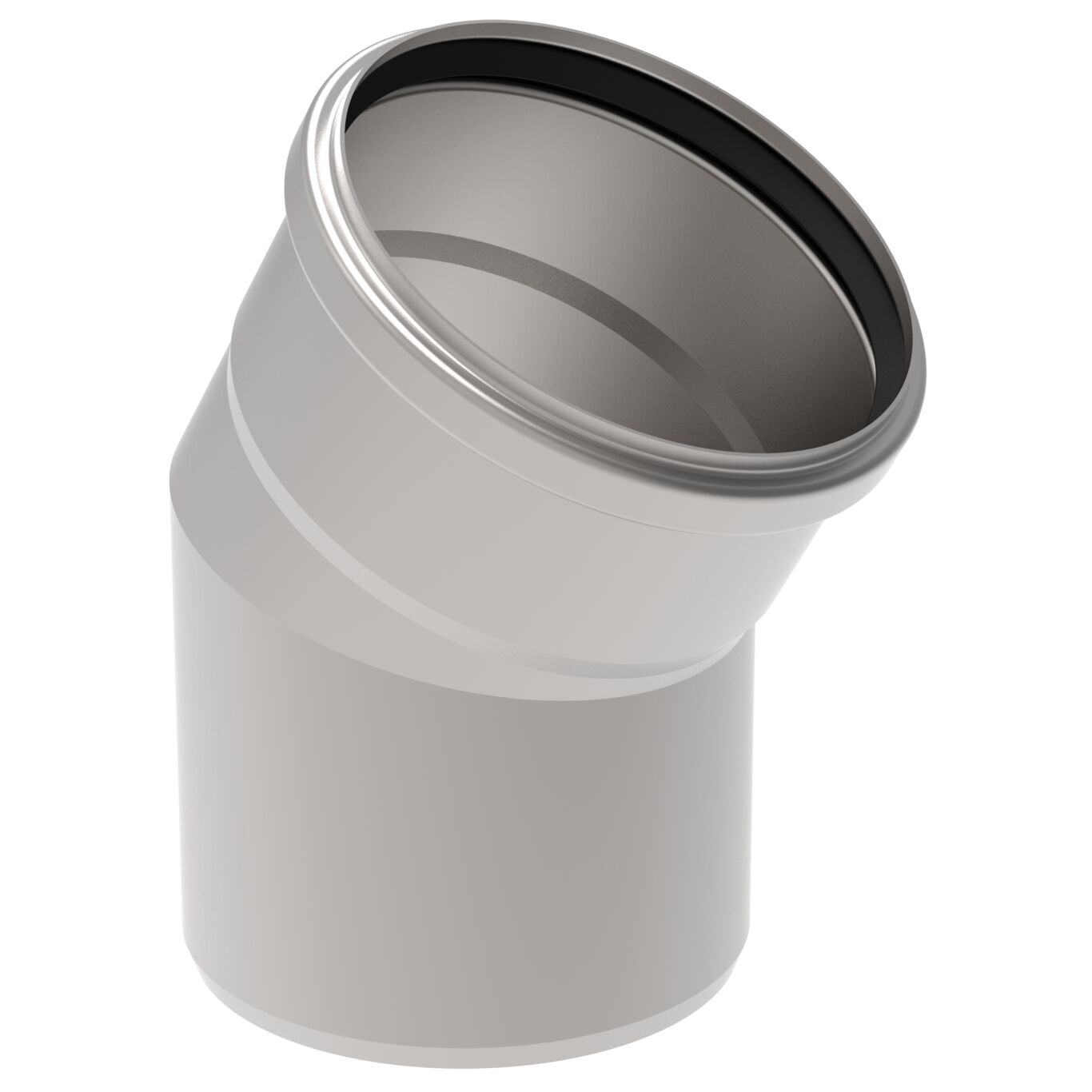

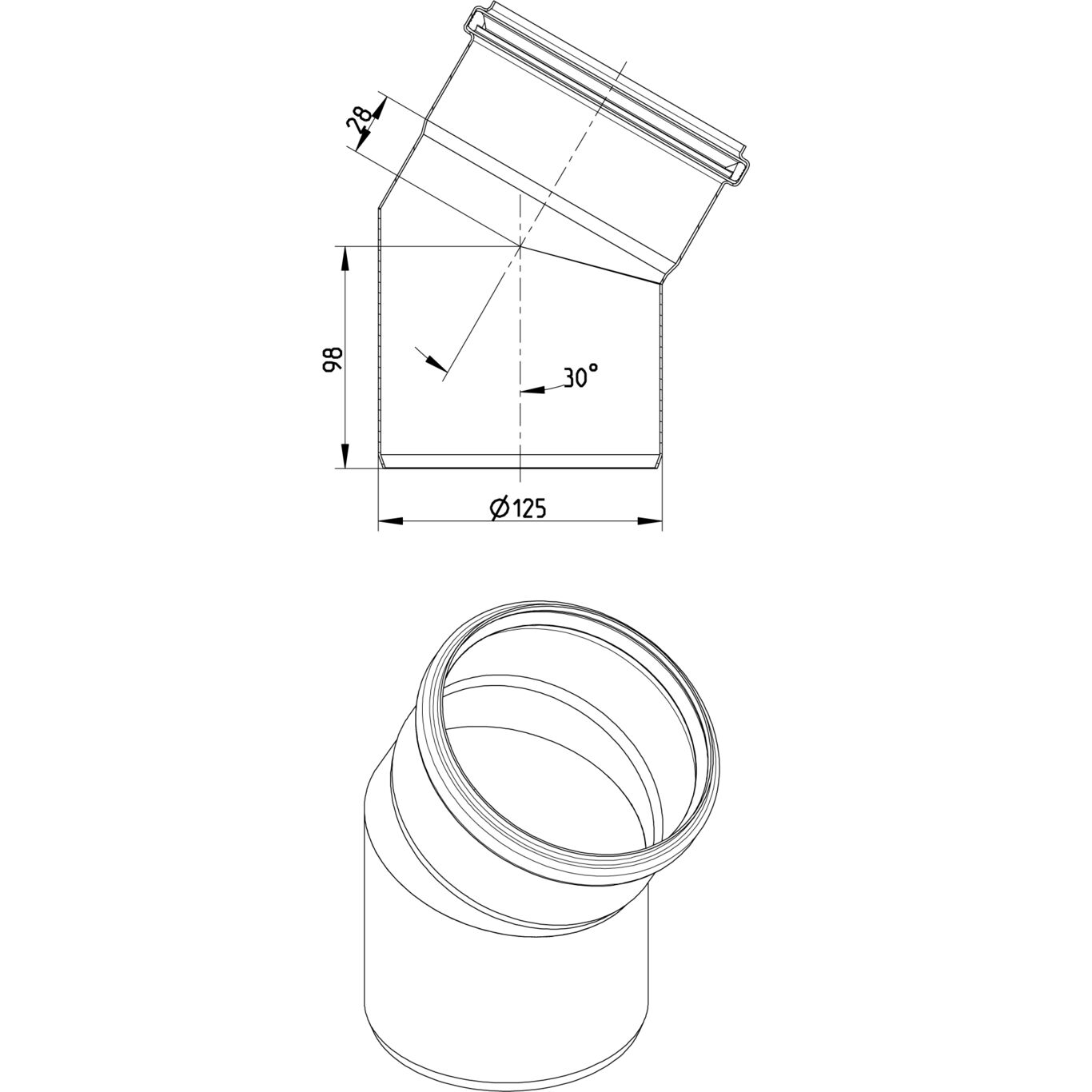

BEND 30°
-Diameter: Ø125mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Weight (kg) | 0,63 |
| Weight (lbs) | 1,39 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19350
