BEND 30° - (820.030.110)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.110
EAN no.: 5705499401264
VVS no.: 160207110
RSK no.: 1550095
NRF no.: 2170046
LVI no.: 0240634

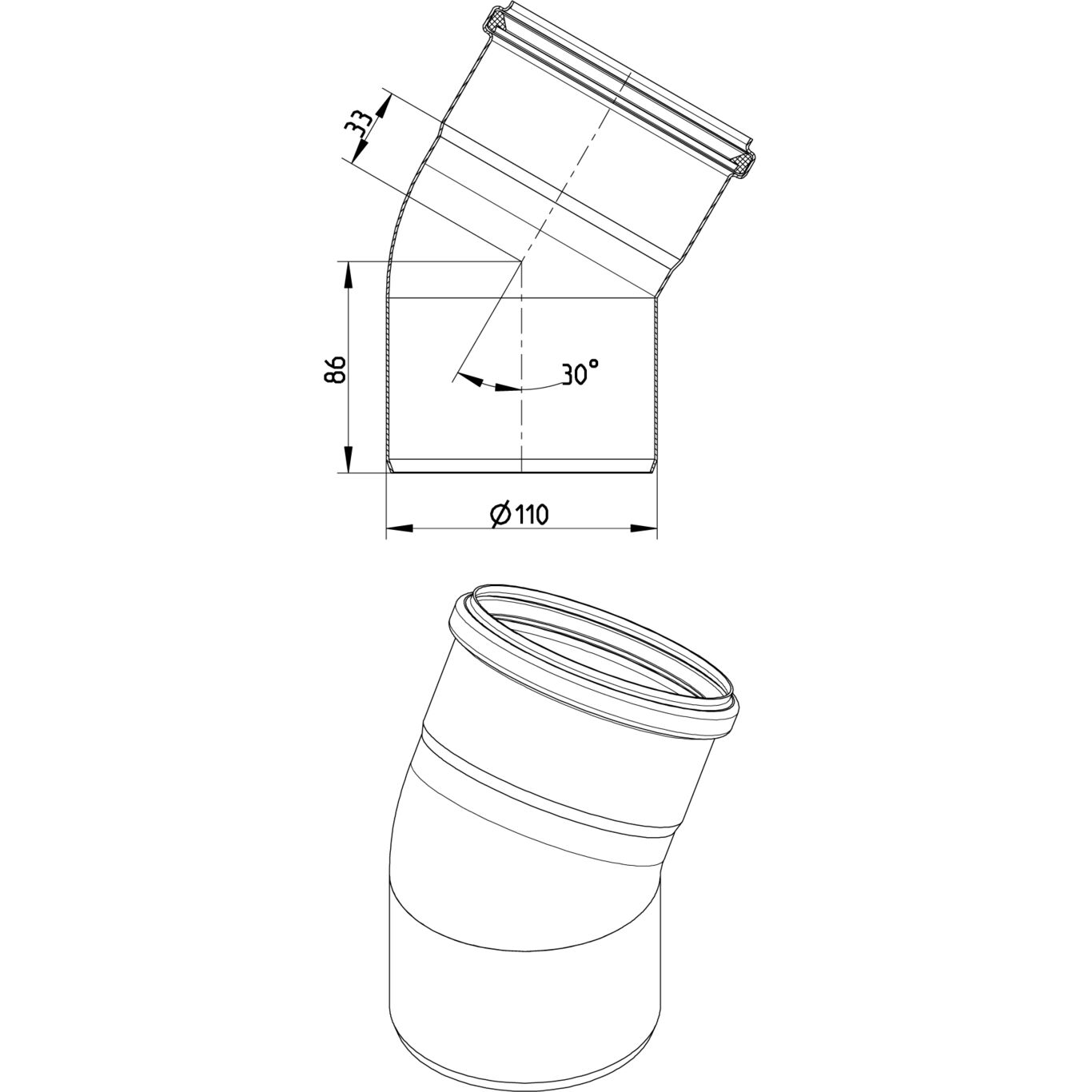

BEND 30°
-Diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,51 |
| Weight (lbs) | 1,12 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings
